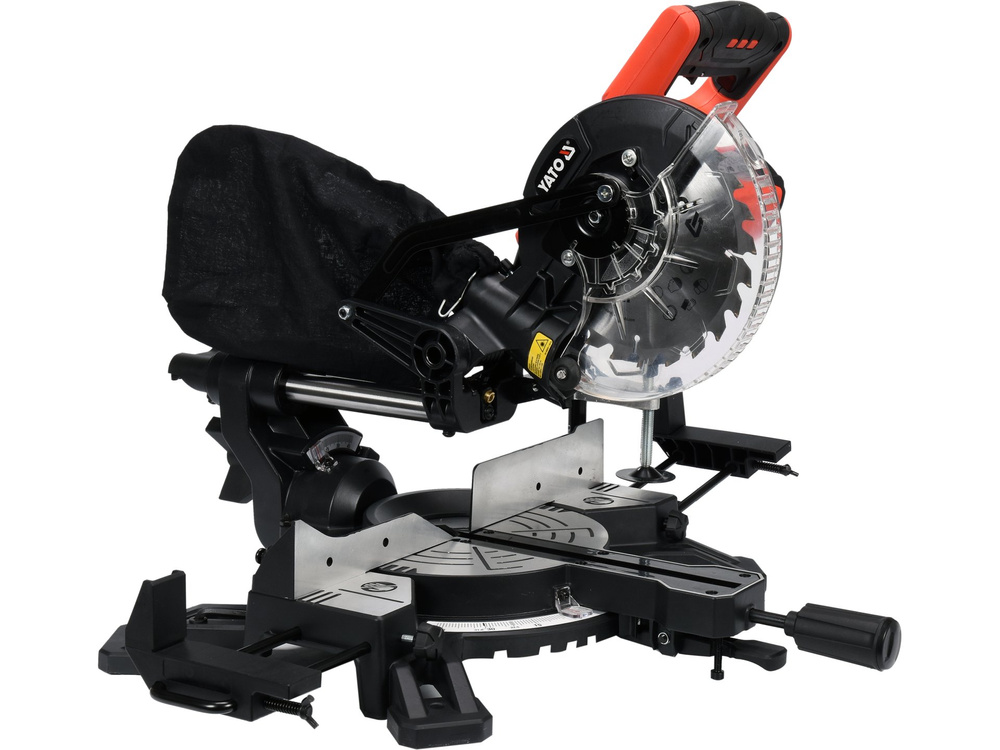

Bevel 185mm 1500w with laser for precision cutting of panels, boards and skirting boards

Professional bevel designed for cutting skirting boards, panels, soffit, parquet, skirting and PVC, cable trays, squared timbers, battens, etc.

It is a versatile tool designed for cutting through wood and wood-based materials. Provides precise and fast cutting through materials.

Thanks to its wide adjustment capabilities, straight and angled cutting is possible.

• laser indicator cutting line
• lateral supports for cutting elongated parts
• .stable and level base with precise setting of the cutting angle vertically and horizontally
• bearing feed of the cutting disc
• smoothly operating pivoting disc guard integrated with the switch
• functional blade guard./li>
• clip integrated into the base for safe and quick immobilization of the workpiece
• built dust extraction system
• based on a dust extraction system
. strong>compact dimensions and transport handle in the center of the housing ensure proper balance and ease of handling
• disc mounting hole: 30 mm
• included dust bag

Package contents:

• bone cutter
• dust collection bag
• disc saw
• .workbench extensions
• workbench clamp
• workbench locking screw

Parameters:

• nominal voltage [V~]: 220 - 240
• nominal power [W]: 1500
• rated rpm [min-1]: 4500
• disc blade: diam. Outer x clamping diameter x thickness max. [mm]: 185 x 30 x 3.0
• minimum workpiece dimensions: height x length x thickness [mm]: 20 x 200 x 20
• maximum bevel cutting angle [deg.]: 45
• insulation class: II
• protection rating: IP20
• weight [kg]: 9.8

Max height x max cutting length:

• horizontal rotation angle 0 st / tilt angle 0 st [mm]: 60 x 210
• horizontal rotation angle 45 st / tilt angle 0 st [mm]: 60 x 145
• horizontal rotation angle 0 st / tilt angle 45 st [mm]: 38 x 210
.
• horizontal rotation angle 45 st / tilt angle 45 st [mm]: 38 x 145

Cutting machine allows three types of cutting:

• cut in which the head will move down
• cut in which the lowered and locked head will move horizontally
• plunge cut, where the head is lowered to a pre-set height, held in that position, and then moved horizontally

The cutter allows you to set two types of angles:

• longitudinal cutting angle: it is possible to rotate the head within +/- 45 degrees. To make it easier to set the angle of the head, the bevel has a scale with a ratchet that allows easy setting of the head at the most common angles (0; 15; 22.5; 31.6; 45 degrees)
• cross-cutting angle (bevel): it is possible to tilt the cutting head by an angle not exceeding 45 degreesWhen setting the angle, you can use the scale marked on the base of the table

Dust extraction

The cutter is equipped with a spigot that enables the connection of an attached bag or an external dust extraction system.

The workbench base is equipped with holes that allow it to be screwed to the floor.
