YT-72003
VERNIER CALIPER 200MM
- Suwmiarka wykonana ze stali nierdzewnej, zakres pomiarowy 200 mm, dokładność 0,02 mm.
Brand
Symbol
YT-72003
Producer code
5906083720031
Series
Measurement range
0-200 mm
Measuring accuracy
± 0.02 mm, ± 0.001"
Material
stainless steel
Metric scale
Yes
Inch scale
Yes
Read type
traditional
Reading resolution
0.02 mm, 0.001"
Operating temperature range
5~40 ˚C
Application
performing external measurements, internal measurements, performing height measurements, depth measurements

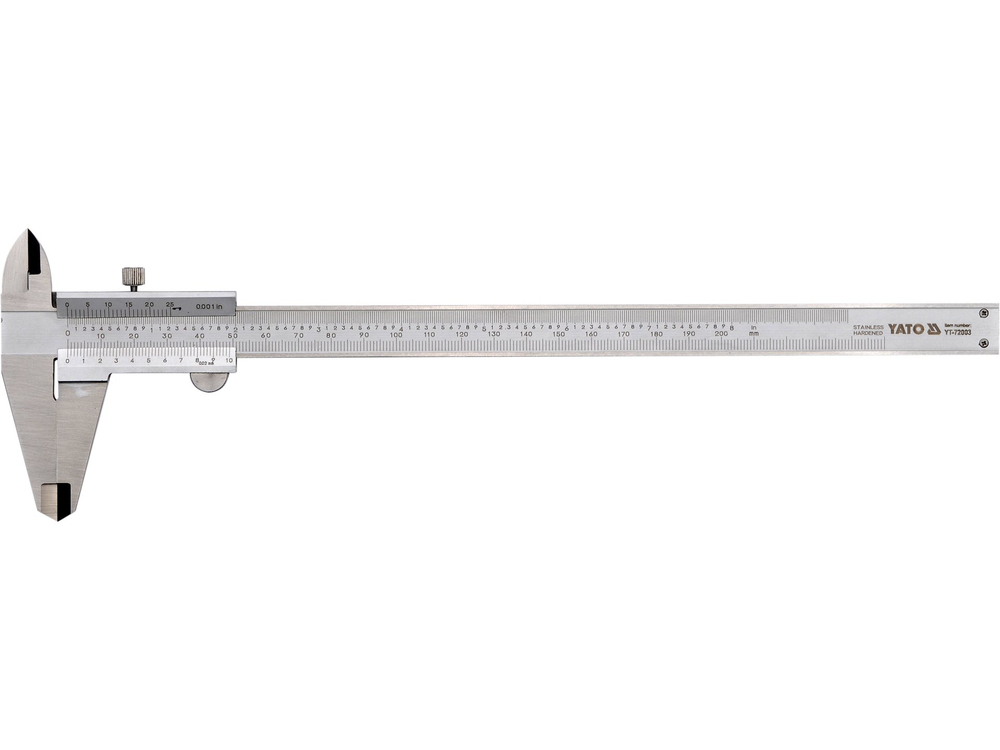

Stainless steel 200 mm caliper
- measuring range from 0 - 200mm / 0 - 8 inches
- accuracy to 0.02mm / 0.001 inch
- .clear and legible graduation affects the accuracy and ease of reading the indicated values
- durable and handy packaging
- humidity effect: negligible below 80% relative humidity
The caliper has:
- measuring surfaces for external measurements
- measuring surfaces for internal measurements
- depth gauge
- .li>measuring surfaces for stroke measurement
- guide
- main scale
- neonius
- setting screw
Allows you to take external, internal, height and depth measurements.

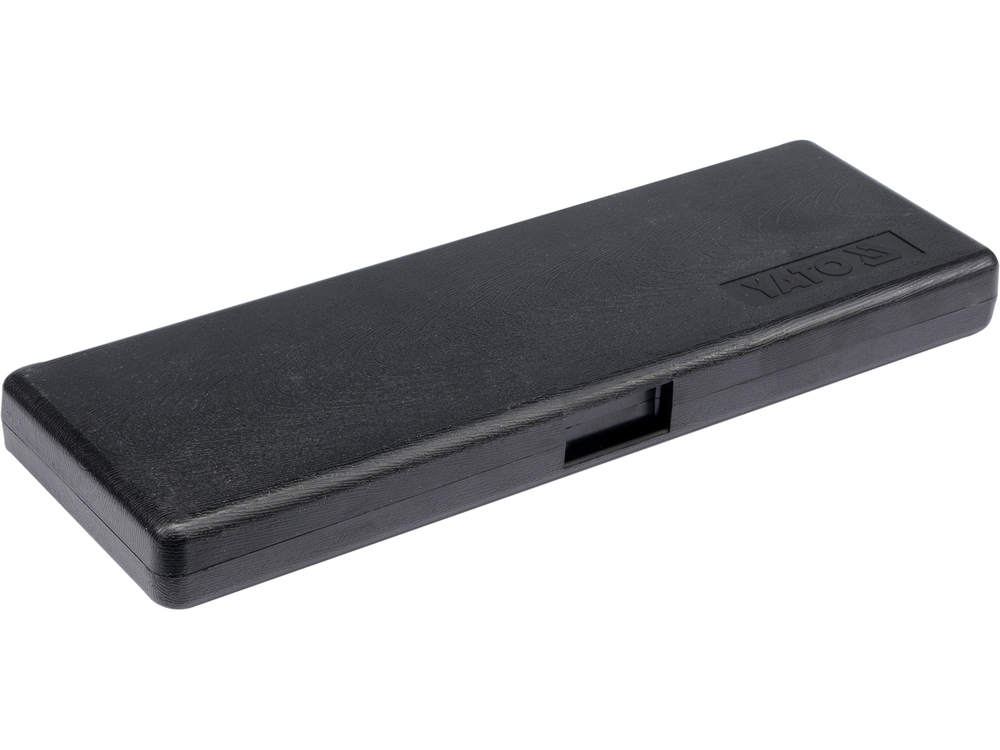

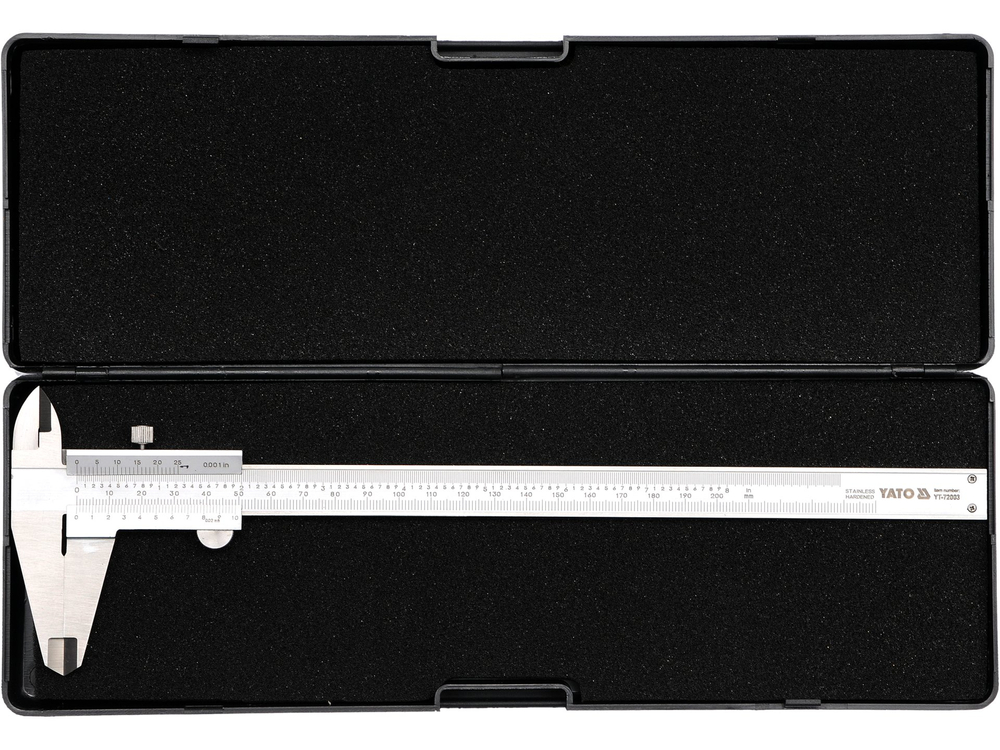

The caliper is packaged in a case.
