00300
TILE CUTTER 600MM 3 FUNCTION
- PRZYRZĄD DO GLAZ.600MM 3 FUNK.TUV marki VOREL
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
straight cut, cutting at an angle, cutting holes
Tile thickness
14 mm
Cutting length
600 mm
Cutting diameter
30-80 mm
Horizontal cutting angle
0-45 ˚
Base dimensions
780x180 mm
Guide bar diameter
19 mm
Cutting wheel dimensions
16x6x3 mm
Material
steel, rubber
Blade material
tungsten carbide
Weight
6.5 kg
Set includes
tile cutting device, angle, die for cutting holes
Application
glaze
Symbol
00300

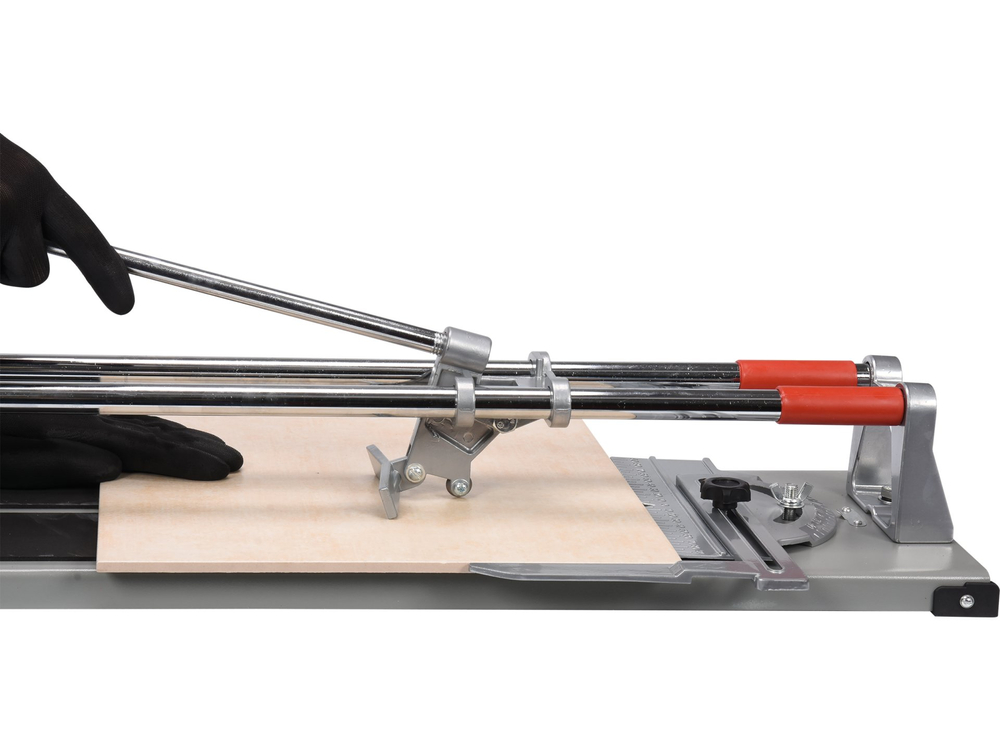

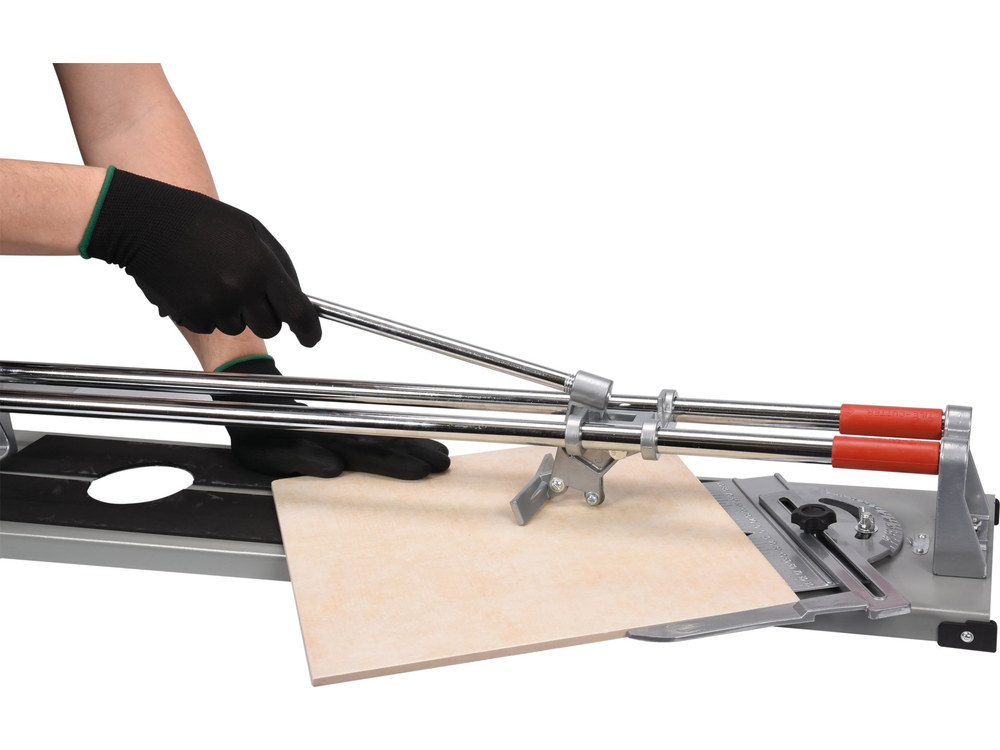

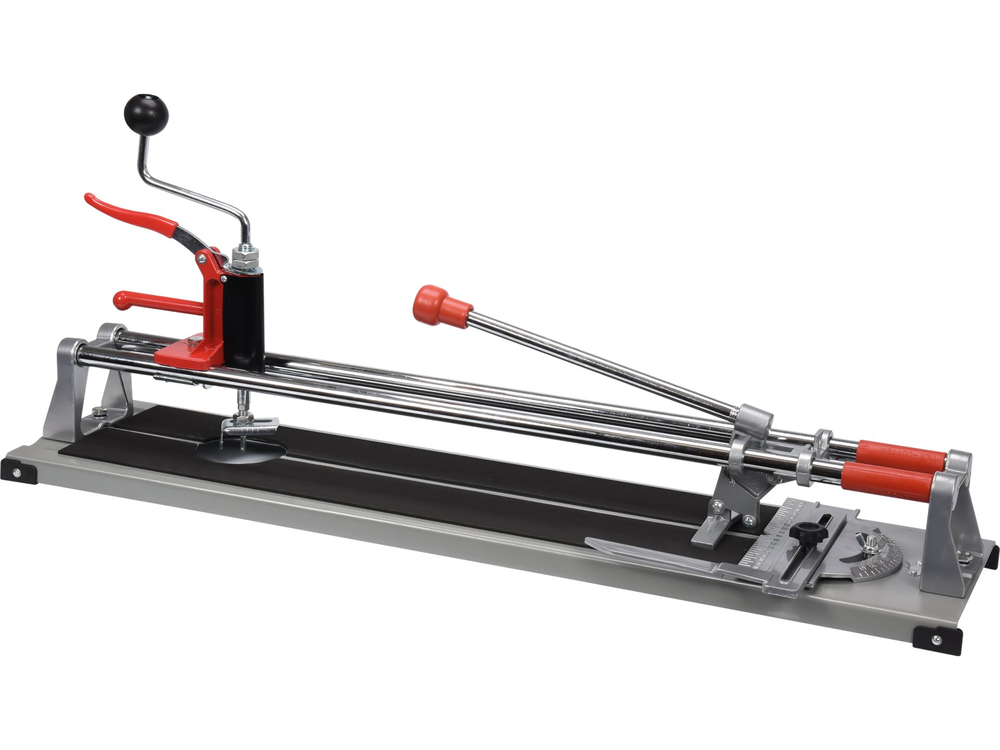

The tile cutting machine has a stable base made of thick steel plate, which is additionally padded with a layer of technical micro rubber. The movable bevel mounted on the tabletop allows cutting tiles at any angle.
The instrument is equipped with a 16x6x3mm cutting wheel made of specially hardened carbide, fixed on two parallel guides for stable and precise cutting.

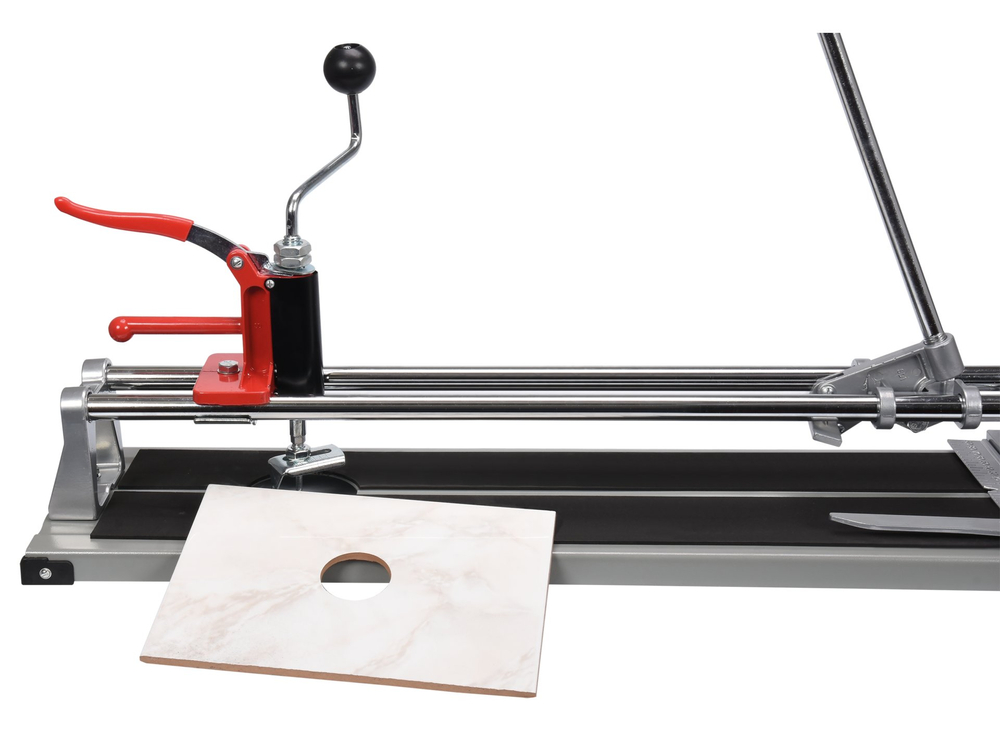

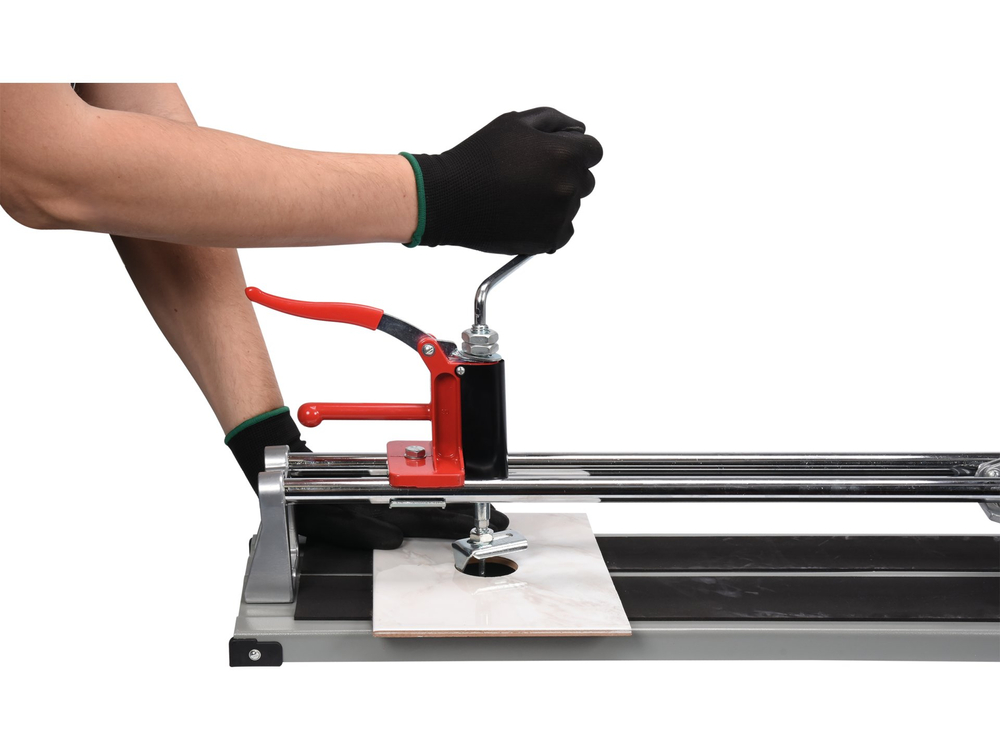

Additionally, a spring-pressed punch can be mounted on the guides for cutting holes from fi 30 to fi 80mm.
Solid and stable workmanship allows the device to be used in renovation work and tiling finishes.
Purpose:
Applied in renovation works and tiling finishes.
Package contents:
- glaze tool 600mm
- angle, cutting wheel 16x6x3 mm
- cutter for cutting holes
Usage warnings:
The use of hand tools can be dangerous! Use personal protective equipment when working. Use only operable, undamaged tools. Select the type and size of the tool according to the type of work performed. Do not overload tools. Protect tools from children and use caution in handling them.To download
