00320

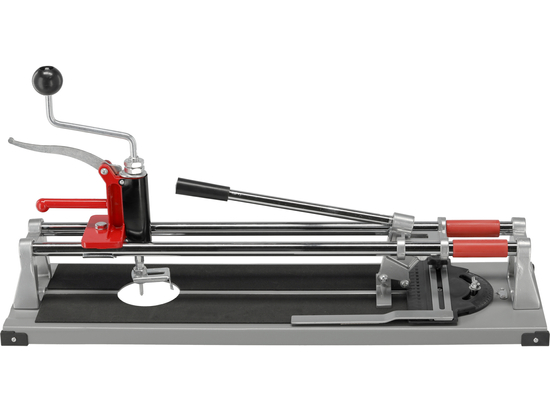

TILE CUTTER 450 MM 3 FUNCTION
- PRZYRZĄD DO CIĘCIA GLAZURY 430 MM 3-F. marki VOREL.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
straight cut, cutting at an angle, cutting holes
Tile thickness
12 mm
Cutting length
450 mm
Cutting diameter
30-80 mm
Horizontal cutting angle
0-45 ˚
Guide bar diameter
19 mm
Cutting wheel dimensions
16x6x3 mm
Material
steel, rubber
Blade material
tungsten carbide
Weight
5.5 kg
Set includes
tile cutting device, angle, die for cutting holes
Application
glaze
Symbol
00320

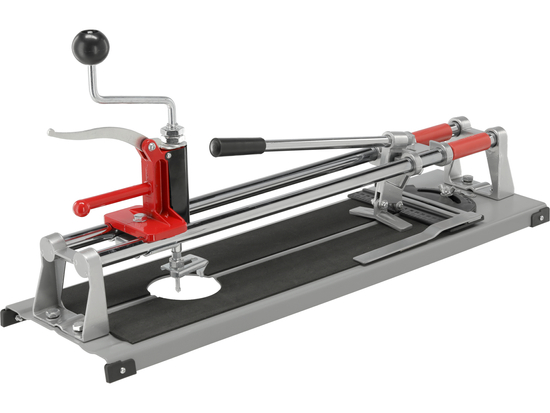

Tile cutting tool 430 mm 3-f. It has a stable base made of steel sheet, covered with a layer of special resilient micro-rubber to facilitate laying, cutting and breaking of the tile.

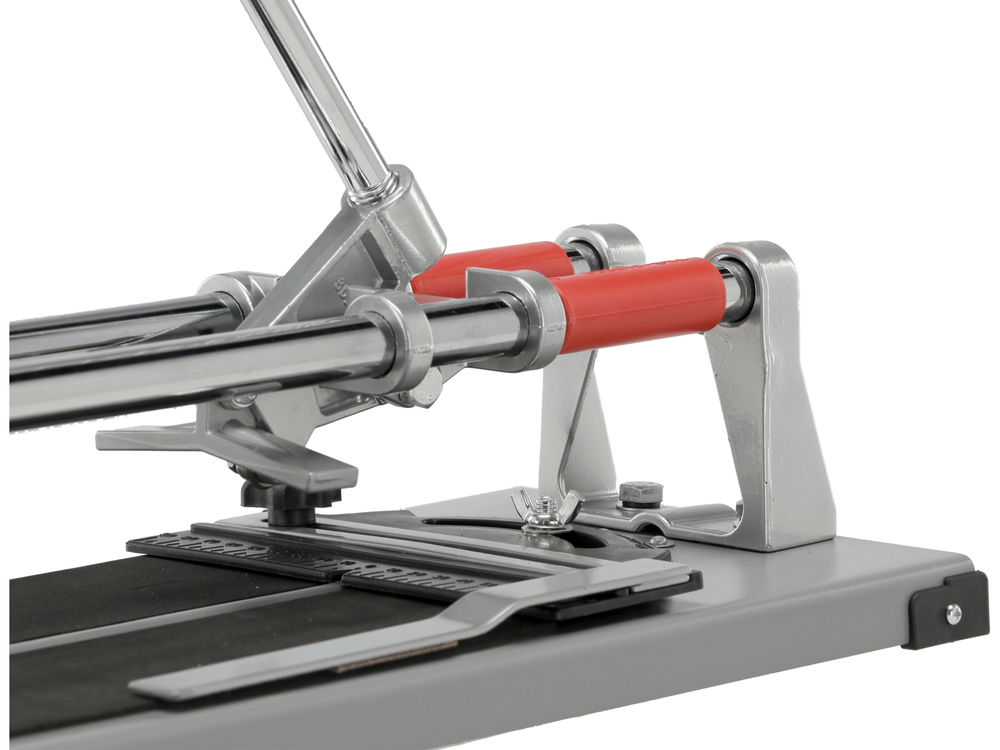

The cutting unit is placed on two tubular guides.

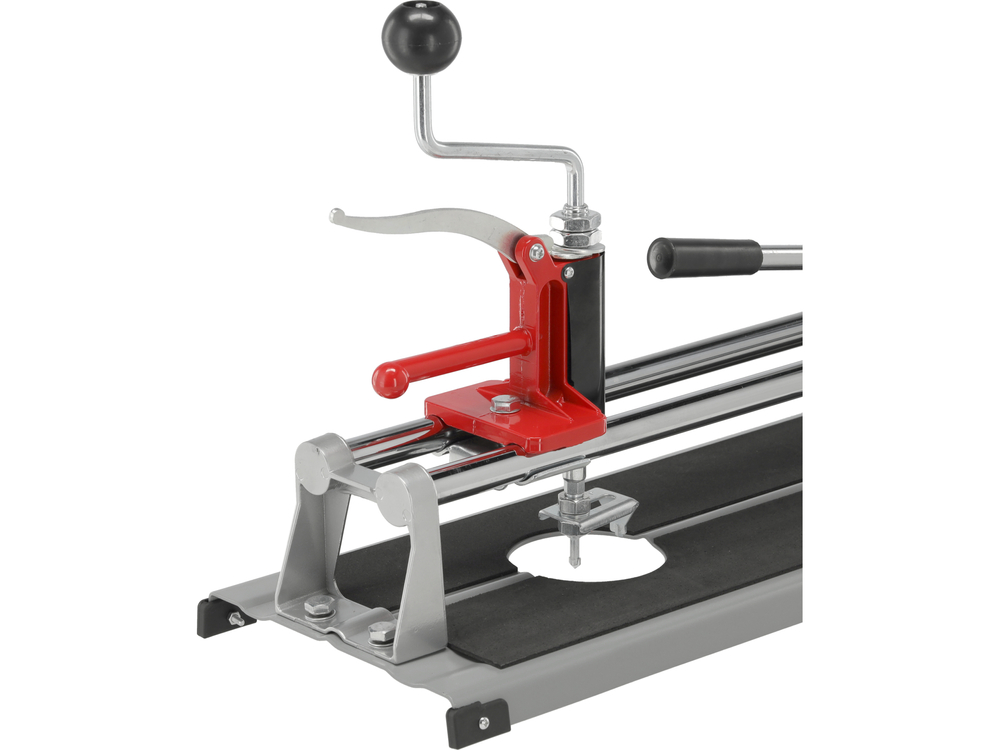

These also serve to hold the hole punch, operating from 30 to 80 mm. The jig has an adjustable metal angle bracket.
The jig has an adjustable metal angle bracket
Purpose:
Strong and reliable design, allows for heavy use in tiling finishes.
Package contents:
- Cutting tool.430 mm
- angle
- Cutting wheel 16 x 6 x 3 mm
- Cutting wheel for cutting holes
Usage warnings:
Using hand tools can be dangerous! Use personal protective equipment when working. Use only functional, undamaged tools. Select the type and size of the tool to suit the type of work being performed. Do not overload the tools. Keep tools out of the reach of children and exercise caution when using them.To download
