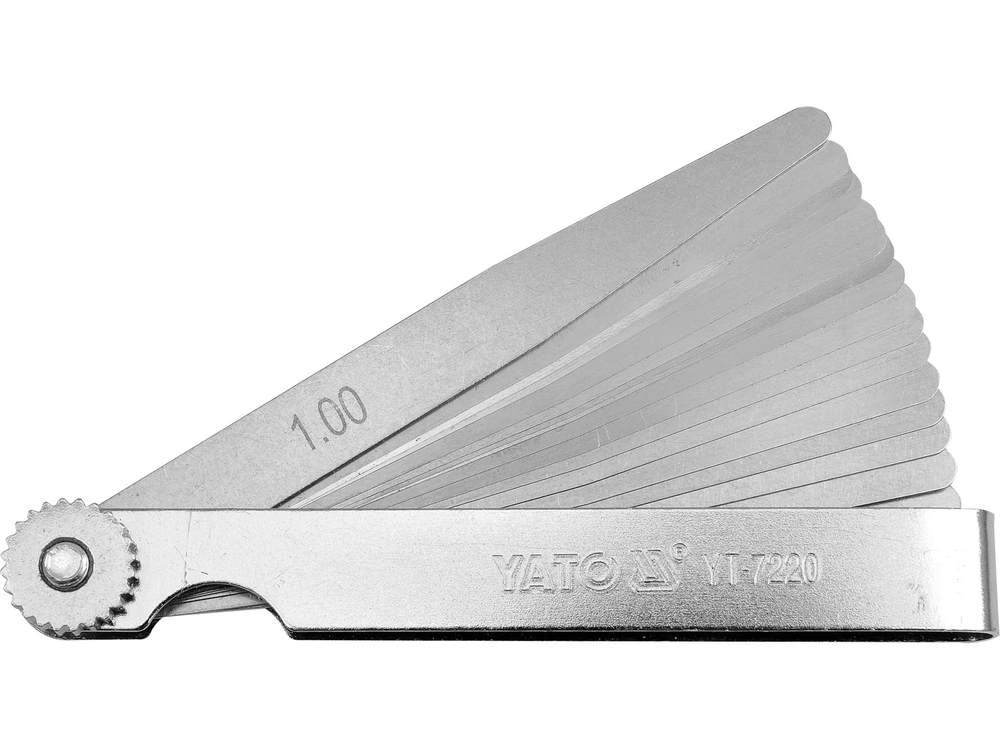

YT-7220
FEELER 100 MM, 17 GAUGES, 0,02-1 MM
- Szczelinomierz z 17 listkami pomiarowymi wykonanymi z utwardzanej stali.Zakres pomiarowy od 0,02 do 1,00 mm . Długość listka 100 mm.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Number of leaves
17
Gauge length
100 mm
Gauge width
10 mm
The thickness of the leaf
0.02, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.15, 0.20, 0.25, 0.30, 0.40, 0.50, 0.75, 1.0 mm
Material
stainless steel spring
Shape
convergent
Application
measurement of clearance when setting valves, measurement of the gap in spark plugs of combustion engines
Symbol
YT-7220
Splatter gauge 100 mm, 17 leaves
- includes 17 measuring leaves of different thicknesses
- Material: hardened spring steel
- length of measuring element 100 mm
- width 10 mm
Includes the following sizes : 0.02/ 0.03/ 0.04/ 0.05/ 0.06/ 0.07/ 0.08/ 0.09/ 0.10/ 0.15/ 0.20/ 0.25/ 0.30/ 0.40/ 0.50/ 0.75/ 1.00 mm
Area of application - automotive, craft, industry.
Usage warnings:
Warning! Always use personal safety equipment at work.Ask a question
