00610
TILE CUTTER 600 MM BEARING
- Bardzo dobrej jakości przyrząd do cięcia glazury o max długości cięcia 590mm.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Tile thickness
16 mm
Cutting length
590 mm
Horizontal cutting angle
0-45 ˚
Base dimensions
780x175 mm
Guide bar diameter
16 mm
Cutting wheel dimensions
22x6x2 mm
Material
steel, rubber
Blade material
tungsten carbide
Bearing
yes
Bearing type
ball
Weight
6.12 kg
Set includes
tile cutting device, angle
Application
glaze
Symbol
00610

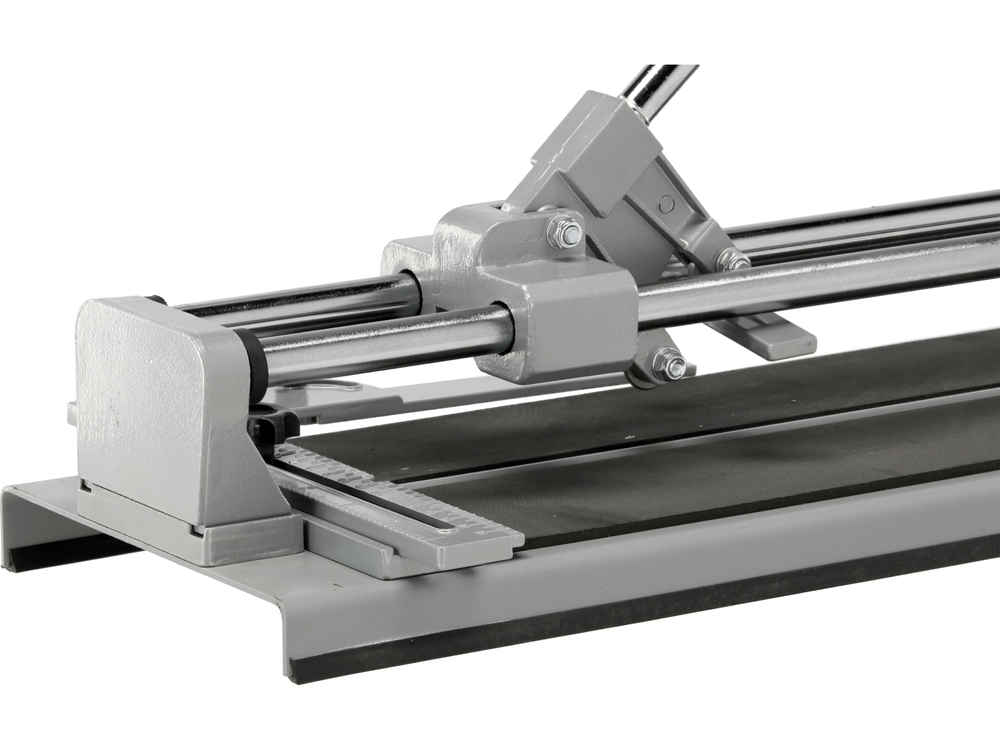

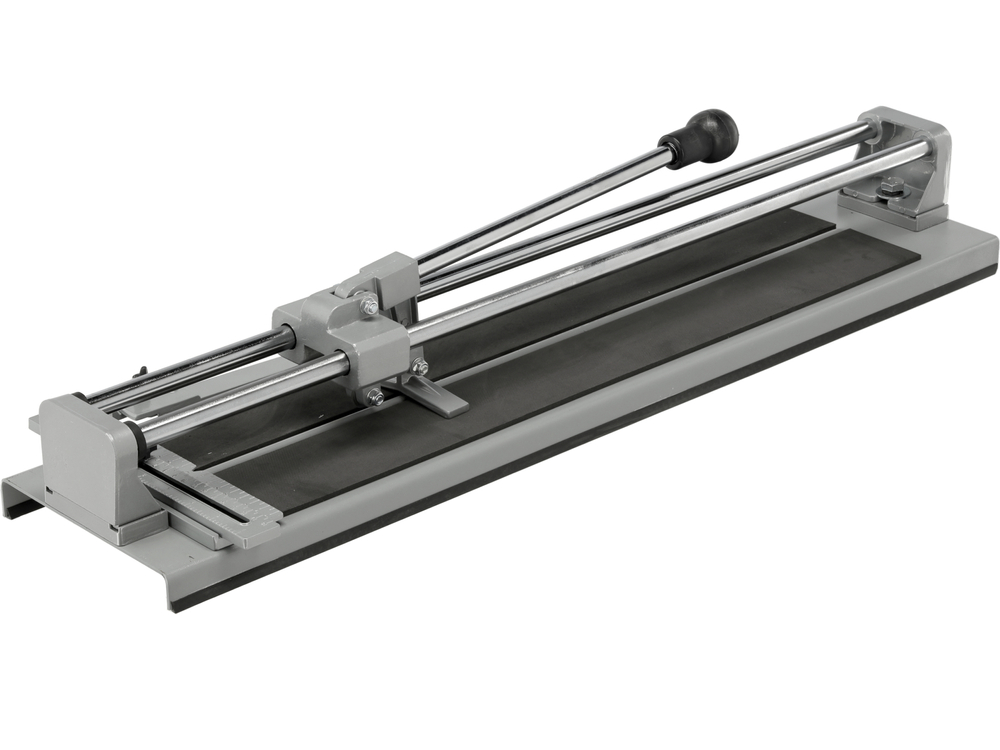

A very good quality glaze cutting device with a maximum cutting length of 590mm. The jig consists of a very stable base made of steel sheet, lined with a layer of technical micro-rubber, two parallel tubular guides and a bearing-equipped cutting unit with a breaker and a carbide cutting disc of 22mm diameter.
This makes it possible to cut inserts of large thickness and in almost all standard sizes.

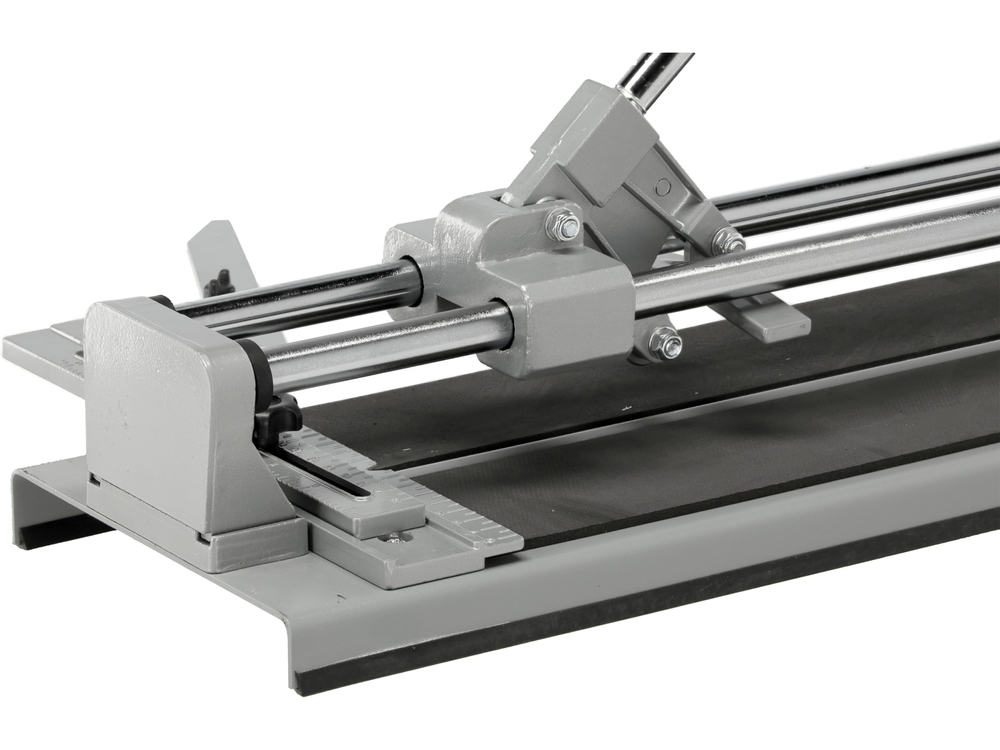

A bracket attached to the base, equipped with a scale and an additional movable frame, perfectly facilitates the work.
Purpose:
An instrument designed for craftsmen and discerning do-it-yourselfers.
Package contents:
- glaze tool
- angle
- cutting wheel 22x6x2 mm
Usage warnings:
Using hand tools can be dangerous! Use personal protective equipment when working. Use only functional, undamaged tools. Select the type and size of the tool to suit the type of work being performed. Do not overload the tools. Keep tools out of the reach of children and exercise caution when using them.To download
