YT-8116
3 WAYS EXTENSION CORD IN RUBBER PROTECTION IP44, 10M, 3G1,5MM
- Wysokiej klasy przedłużacz izolowany o długości 10m z rozgałęźnikiem na 3 gniazda.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Length
10 m
Extension cord type
building
Max. power
3680 W
Max. current
16 A
Voltage
230 V a.c.
Frequency
50 Hz
Nest type
E & F
Plug type
E
Earthing
yes
Socket quantity
3
Wire insulation type
H07RN-F
Wire section area
3Gx1.5 mm²
Color
black
Protection grade
IP44
Switch
no
Children protection
yes
Symbol
YT-8116

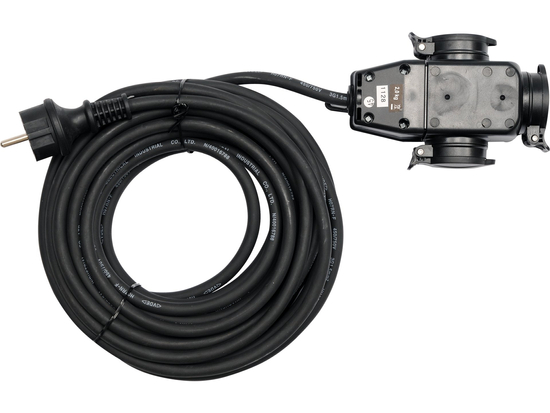

Building and workshop extension cable YT-8116 with a length of 10 meters with a distributor and 3 dust- and splash-proof sockets. The neoprene rubber sheathed cable makes the extension cord suitable for indoor as well as outdoor use, such as construction sites, gardens, yards in front of factories. The construction of the extension cord is designed for use at construction sites or workshops with power tools.
- Voltage and frequency rating: ~230V/50Hz
- Maximum load: 3680 W
- copper three-conductor cable of 1.5 mm², length 10 m
- .External insulation made of neoprene rubber is high resistance to mechanical damage, atmospheric factors (sun, cold) chemical substances (cutting oils, gasoline, or ethyl and methyl alcohols) as well as inertness to flames<
- natural rubber insulation is used for the individual conductors
- the dust- and splash-proof sockets with IP44 rating guarantee protection against moisture or dust and sand
The designation H07RN-F denotes a tire cable made according to the harmonized standard (H), for a rated voltage of 450/750V. (07), with natural rubber insulation (R), with neoprene sheath (N) and flexible multi-stranded conductors (-F).
