08783

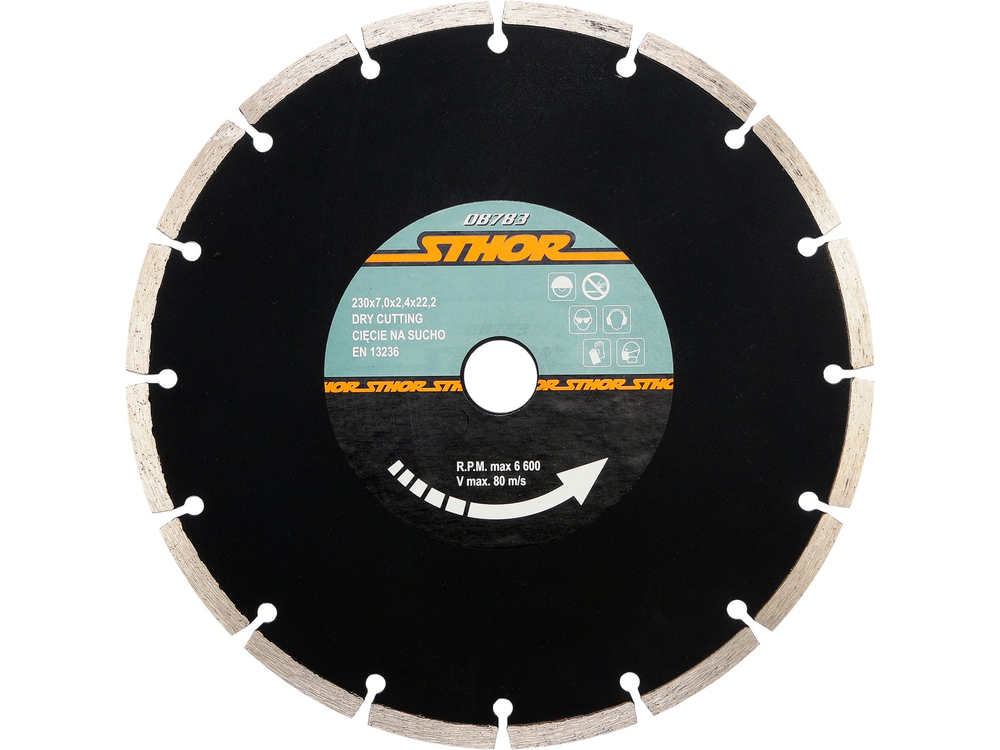

DIAMOND BLADE "SEGMENT" - HS 230MM
Brand
Symbol
08783
Producer code
5906083087837
Series
Diameter
230 mm
Shield thickness
1.8 mm
Mounting diameter
22.2 mm
The height of the cutting segment
7 mm
Cutting segment thickness
2.4 mm
Chemical composition of the cutting segment
Fe 30%, SU 50%, SN 10%, Ni 5%, every 5%, Diamond coating 12%
Material
stal 65Mn
Turnout
6600 min⁻¹
Linear speed of the shield
80 m/s
Application
concrete, brick, stone, granite, glaze
Type of work
dry
Diamond disc for angle grinders.
- Fitted with segments of 7 mm height and 2.4 mm thickness
Designed for "dry" work.
Recommended for cutting ceramics, concrete, stone, brick.
- Rotation recommended approx. 6600/min
