08792

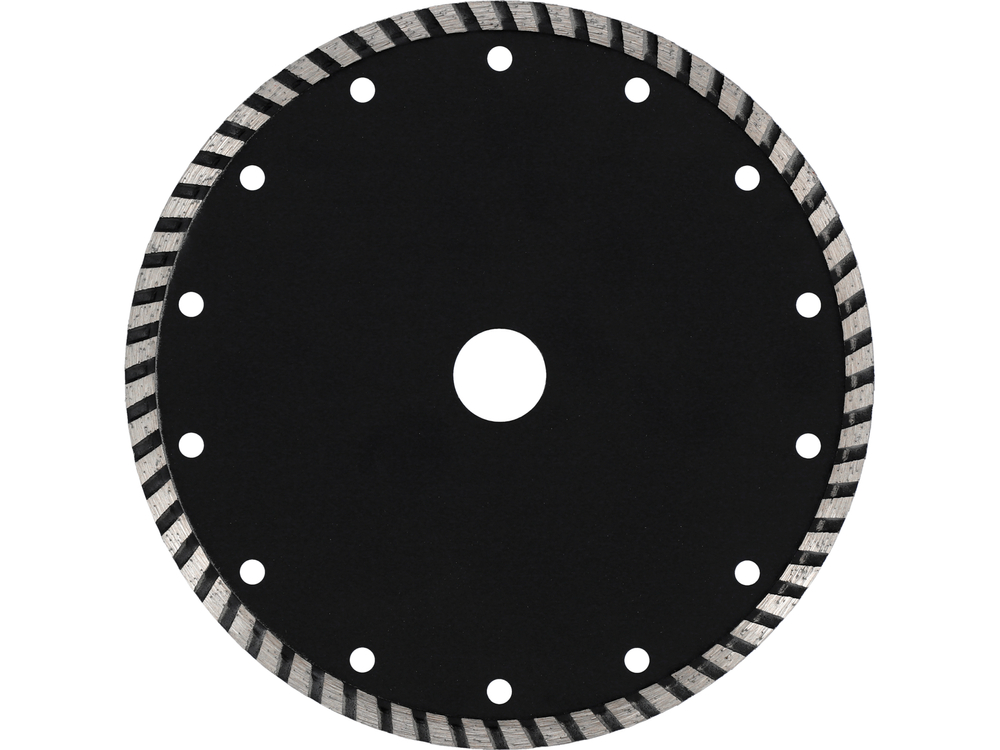

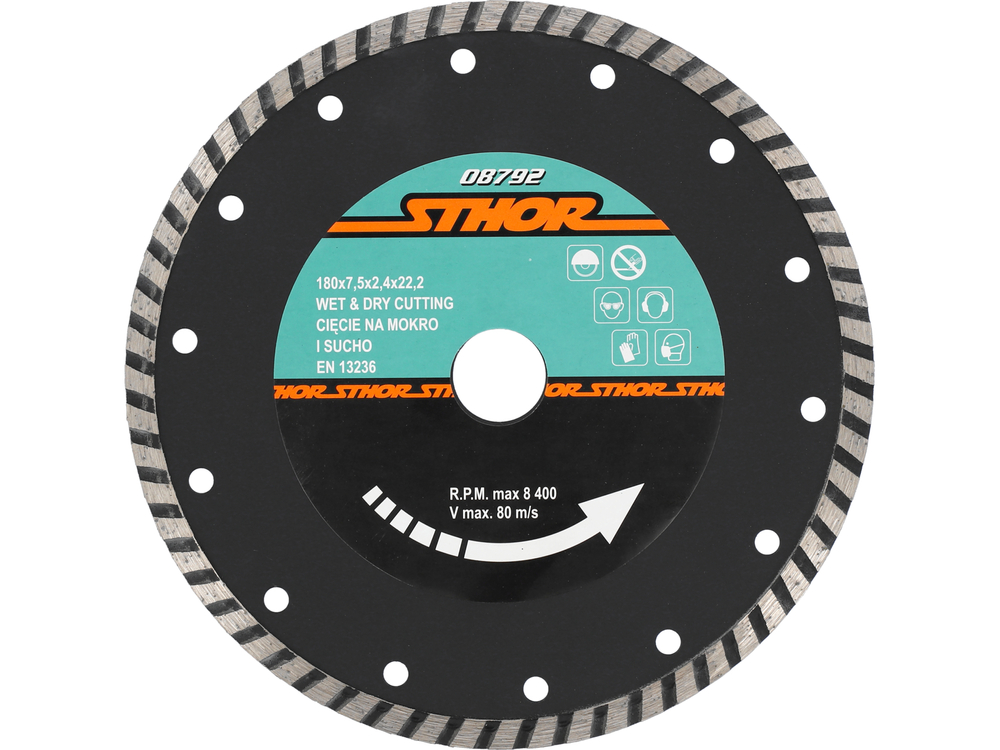

DIAMOND BLADE "TURBO" - 180MM
Brand
Symbol
08792
Producer code
5906083087929
Series
Diameter
180 mm
Shield thickness
1.6 mm
Mounting diameter
22.2 mm
The height of the cutting segment
7.5 mm
Cutting segment thickness
2.4 mm
Chemical composition of the cutting segment
Fe 30%, SU 50%, SN 10%, Ni 5%, every 5%, Diamond coating 12%
Material
stal 65Mn
Turnout
8400 min⁻¹
Linear speed of the shield
80 m/s
Application
concrete, ceramics, brick, granite, reinforced concrete, limestone, stone, sandstone
Type of work
dry, wet
Diamond disc universal for angle grinders.
- Fitted with a continuous turbo type segment of 7.5 mm height
Designed for "wet or dry" work.
Recommended for cutting ceramics, concrete, bricks, stone, limestone, reinforced concrete and granite.
- Rotation recommended approx. 8400 rpm
