YT-1763
THREAD REPAIR SET
- Profesjonalny zestaw do naprawy gwintów M5-M12. Wiertła i gwintowniki wykonane zostały ze stali szybkotnącej HSS 4341
Entity responsible for this product in the EU
TOYA S.A.MoreAddress:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Dimensions
M5x0.8x6.7 mm, M6x1x10.8 mm, M8x1.25x10.8 mm, M10x1.5x13.5 mm, M12x1.75x16.3 mm

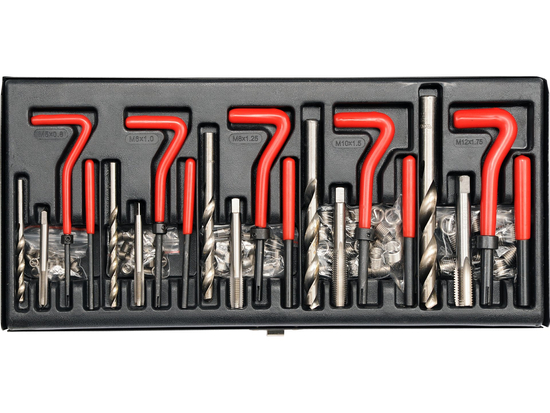

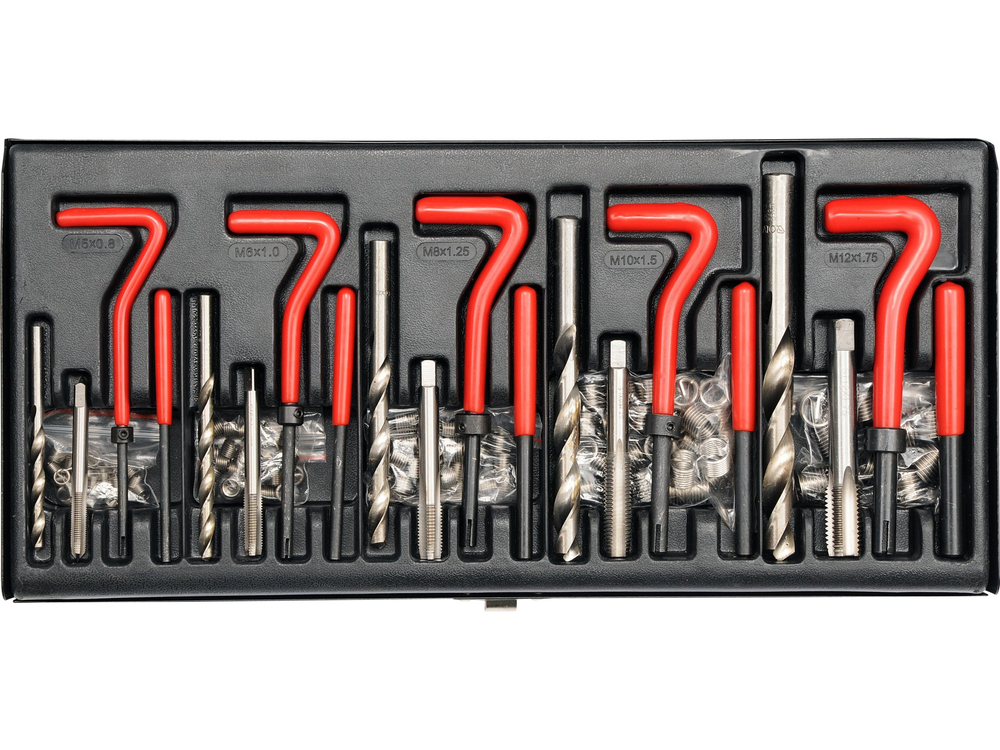

Set includes
single-stage tap to create a thread for a new x5 insert, spiral insert x110 (M5x0.8x6.7 mm x25, M6x1x10.8 mm x25, M8x1.25x10.8 mm x25, M10x1.5x13.5 mm x25, M12x1.75x16.3 mm x25),
Set includes cont’d
screwing knob for helical inserts x5, drift x5, drill bit for reaming damaged threads x5, hex key
Professional M5-M12 thread repair kit.
Drills and taps are made of HSS 4341 high-speed steel. Single-stage taps cut a thread into which a hard stainless steel spiral insert is inserted. A guide knob is used to insert the insert and a drift thatóry breaks off the protruding endóof the insert.
The set is designed for 5 typesóof threads:
- M5 x 0.8 x 6.7 mm
- M6 x 1.0 x 10.8 mm
- M8 x 1.25 x 10.8 mm
- M10 x 1.5 x 13.5 mm
- M12 x 1.75 x 16.3 mm.
Professional M5-M12 thread repair kit. The drills and taps are made of HSS 4341 high-speed steel. The single-stage taps cut a thread into which a hard stainless steel spiral insert is inserted. A guide knob is used to insert the insert, as well as a drift that breaks off the protruding end of the insert The set is designed for 5 types of threads: M5 x 0.8 x 6.7 mm, M6 x 1.0 x 10.8 mm, M8 x 1.25 x 10.8 mm, M10 x 1.5 x 13.5 mm, M12 x 1.75 x 16.3 mm. - Determine the size of the damaged thread, and then select a repair kit of the same size- Ream out the damaged thread with a drill bit from the kit- Then thread it with the tapping tool included in the kit. The tapping tool should be seated in the knob designed for threading machines. The knob is not included in the kit equipment- On the knob for spiral inserts, seat the insert so that the transverse part of the insert is in the the slot of the knob. Then secure the insert with a ring so that it does not stretch during screwing. Secure the ring with a screw- Screw the insert completely into the pre-threaded hole. Slide out the knob. Using a cotter pin Break off the transverse part of the insert- Screw the screw into the repaired thread. - Drills for reaming the damaged thread: 5pcs- Single-stage taps for making the thread for the new insert: 5pcs- spiral inserts: 5 packets - knobs for screwing in spiral inserts: 5pcs- drifters: 5pcs- allen wrench: 1pc- case
