YT-36095

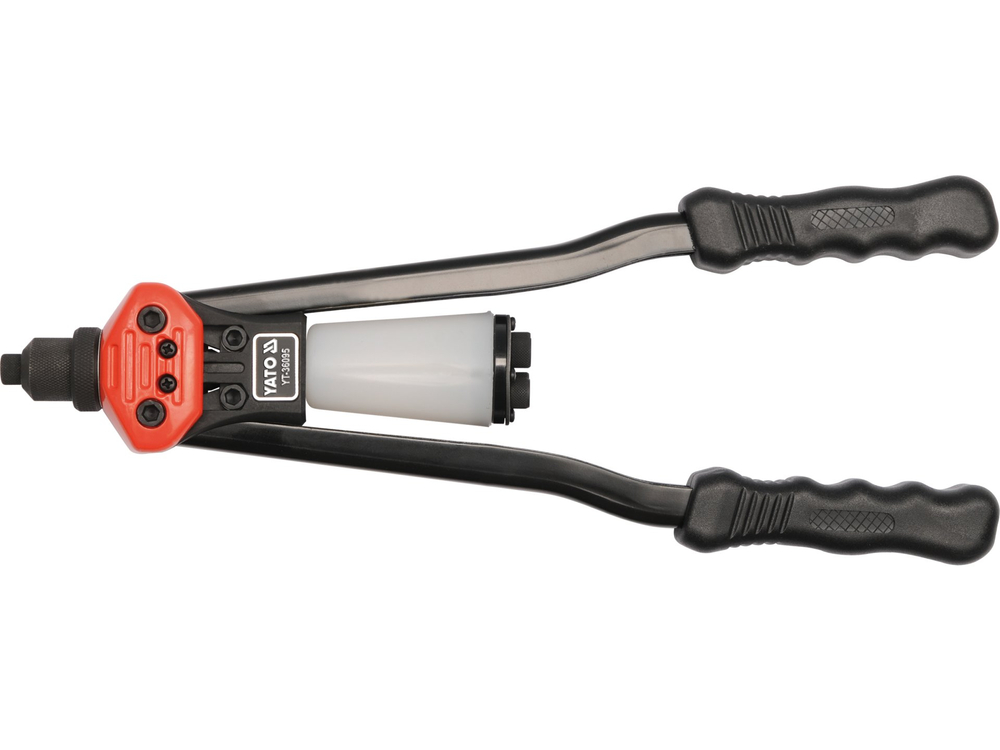

HAND RIVETING TOOL
- Silna nitownica o dużym zakresie pracy od 2,4 do 6,4 / nity zrywalne alu, stal, inox /.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Rivets diameter
2.4, 3.2, 4, 4.8, 6.4 mm
Blind rivet material
aluminum
Length
380 mm
Jaws material
CrMo
Surface finish
hardened
Materiał rękojeści
carbon steel, PVC
Casing material
aluminum
Jaw quantity
3
Set includes
riveter, rivets
Application
steel rivets, stainless steel rivets, aluminum rivets
Symbol
YT-36095
A powerful riveting machine with a large working range of 2.4 to 6.4 /aluminum rivets. A special feature large range of handled rivets, achieved thanks to the appropriate thickness of the walls and the properly selected length of the arms.
The rivet, which is inserted in the selected endóof the rivet, is placed in the hole drilled in the materials and the arms of the riveting machine are compressed with a smooth movement. The materials are permanently joined, and the broken pin goes into a container at the riveting machine.
- Length [mm]: 380
Usage warnings:
Warning! Always use personal safety equipment at work.To download
