YT-0864
MAGNETIC WELDING HOLDER 102X155X17
- Stosowanie kątownika magnetycznego pozwala na swobodne operowanie obiema rękami przy wstępnym montowaniu łączonych, metalowych elementów bez pomocy dodatkowej osoby.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Lifting capacity
22.5 kg
Operation angle
45, 90, 135 ˚
Dimensions
102x155x17 mm
Bore diameter
28 mm
Material
steel sheet, ferrite magnet
Surface finish
powder coated
Magnet
yes
Switch
no
Application
temporary joining of metal elements during welding, drilling, painting, activities requiring the use of both hands,
Application contd
pre-setting of magnetic workpieces, e.g. sheet metal, angle iron, flat bars, etc., prior to permanent bonding
Symbol
YT-0864

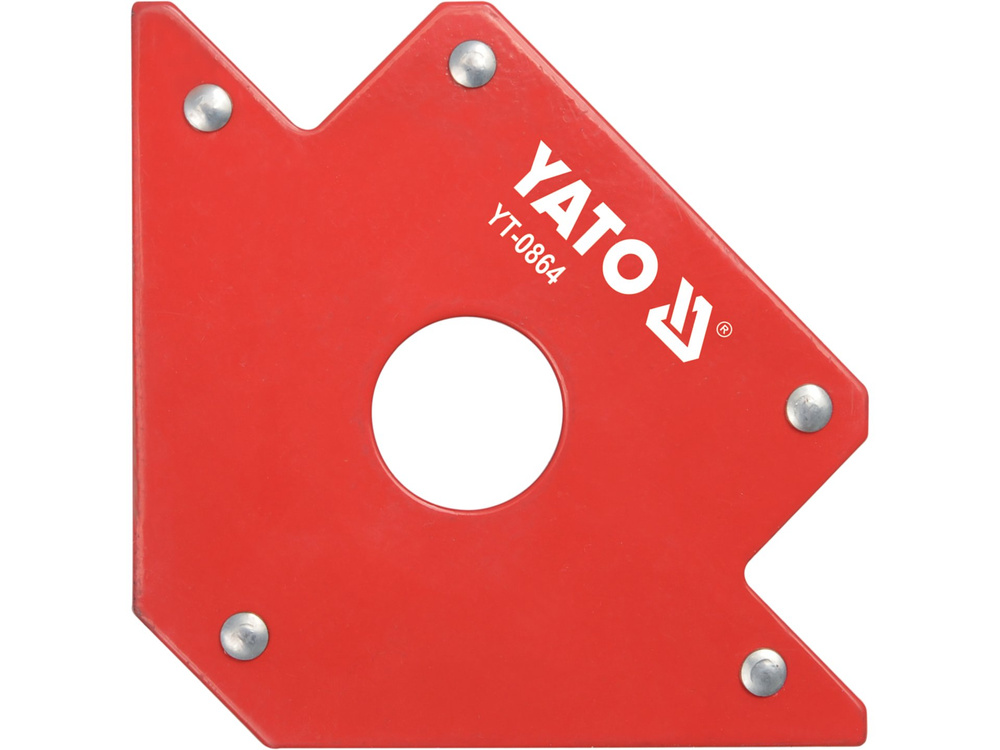

Welding magnetic angle iron 102 x 155 x 17 mm
Magnetic bevel made of steel sheet and strong ferrite magnets.
It allows precise joining of materials at the following angles: 45°, 90° i 135°.
Magnet's load capacity is approx. 22.5 kg.
The holder has a hole for mounting cylindrical elements, e.g. tubes and rods, with a diameter of up to 28 mm. The surface of the magnet housing is powder coated.
Application:
Designed for temporary joining of metal parts during welding, drilling, painting, activities requiring the use of both hands. The use of the magnetic bevel allows free operation with both hands and pre-assembly of the metal elements to be joined without the help of an additional person.
Parameters:
- inner hole [mm]: 28
- size [mm]: 102x155x17
- angle values [st.]: 45°, 90°, 135°
- load capacity [kg]: 22,5, 22,5
Usage warnings:
Warning! Always use personal safety equipment at work.Ask a question
