YT-36706
3IN1 SLODERING IRON / TORCH / HOT BLOWER SET
- Lutownica gazowa 3 w 1 z zestawem z zapłonem piezo zasilana gazem zapalniczkowym - butanem o mocy 30-125W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
30-125 W
Gas type
butane lighter gas, propane-butane lighter gas
Flame temperature
1300 ˚C
Blast temperature
600 ˚C
Max. temperature of soldering tip
450 ˚C
Gas usage
9.3 g/h
Working time
75 min
Tank capacity
30 ml
Piezo ignition
yes
Gas level inspection window
yes
Lock
yes
Child protection
yes
Weight with empty tank
100 g
Pcs
7
Set includes
nozzle, arrowhead x4, tin, sponge
Application
tin soldering, pyrography - burning in the wood, shrinking of heat-shrinkable materials, Cu pipe brazing, unscrewing stuck screws, defrosting, bending and warm forming,
Application contd
heat welding and gluing
Symbol
YT-36706

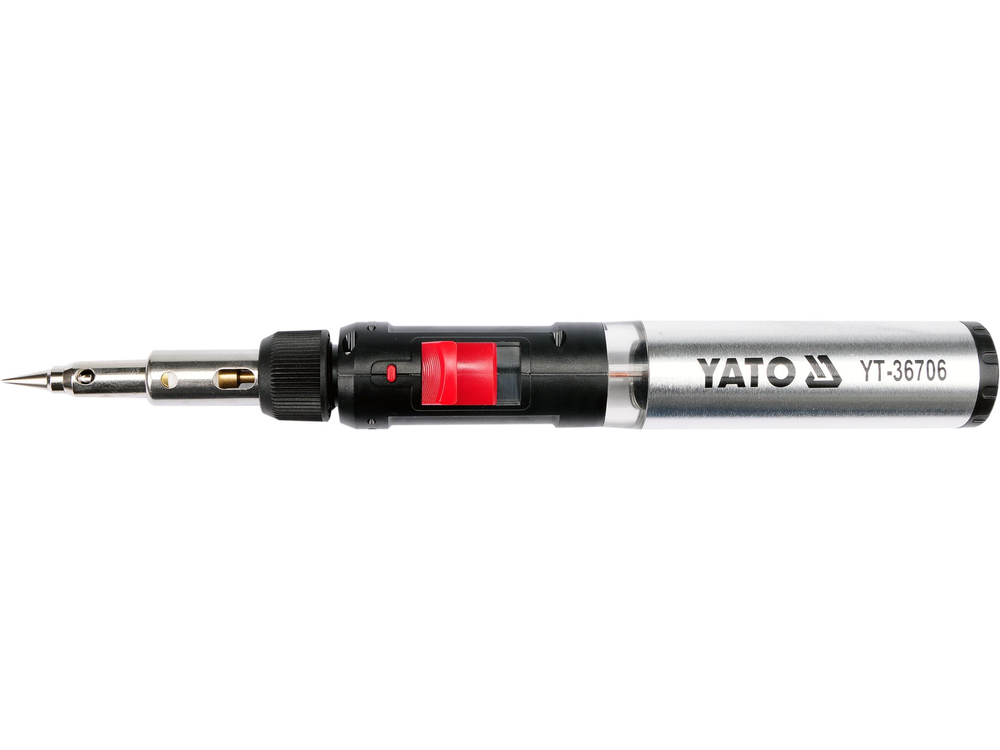

3-in-1 gas soldering iron with piezo ignition kit powered by lighter gas - butane with a power of 30-125W.
- has the function of soldering iron (max temp 450º c), tanning iron (max temp 600º c) and torch (max temp 1300º c)
- .tank capacity is 30ml which allows you to work for up to 75min

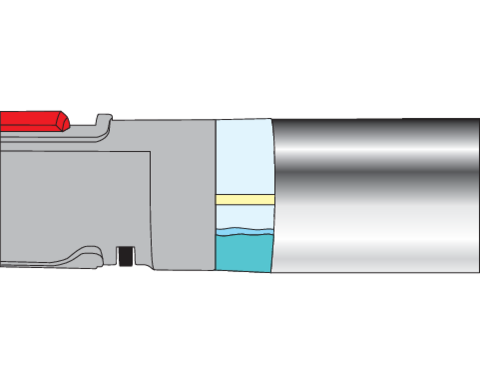

- an inspection window in the body allows you to check the gas level
- .burner is designed for tin soldering, pyrography (burning in wood), burning or shrinking of heat shrinkable materials

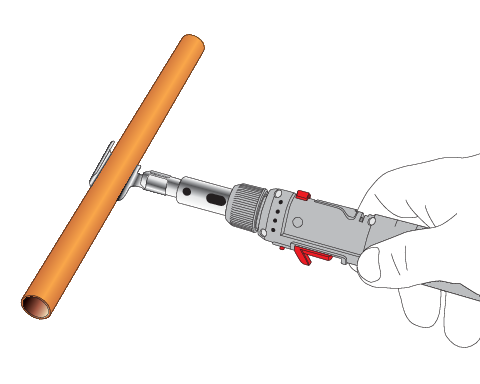

- the burner can be used for soldering cu pipes, unscrewing baked screws, welding or thawing, as well as for bending and heat forming
Provides function:

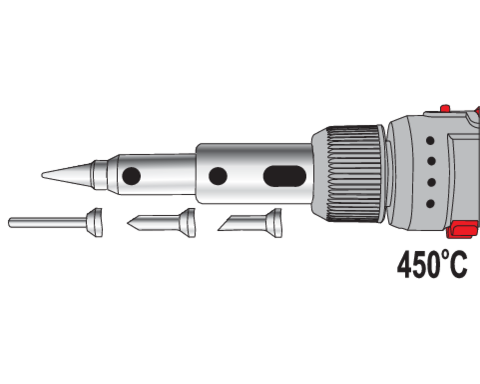

- soldering iron (max temp 450º C)

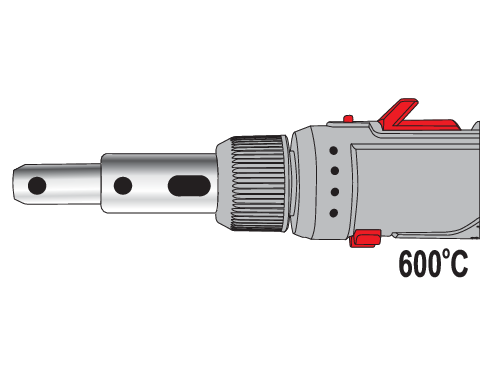

- burner (max temp 600º C)

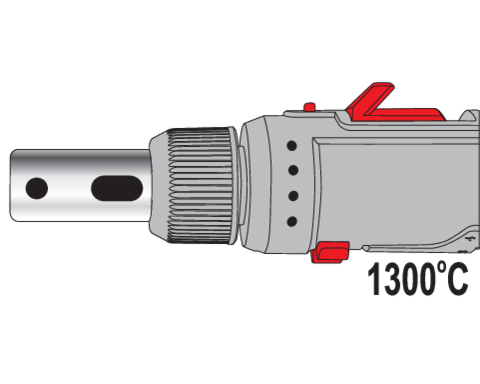

- burner (max temp 1300º C)

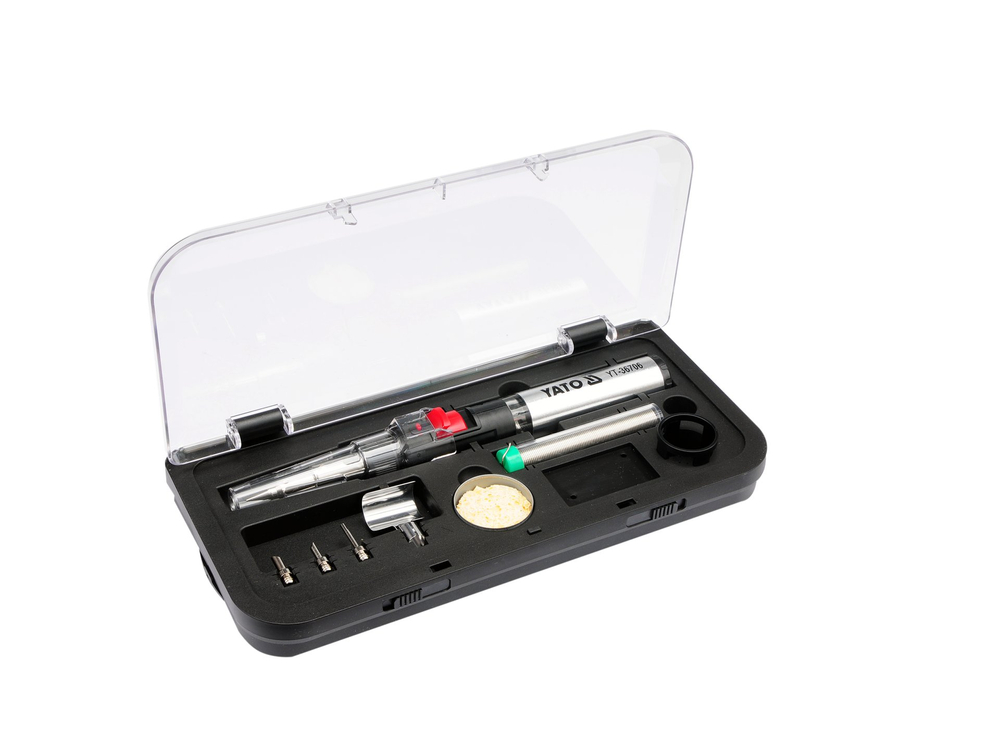

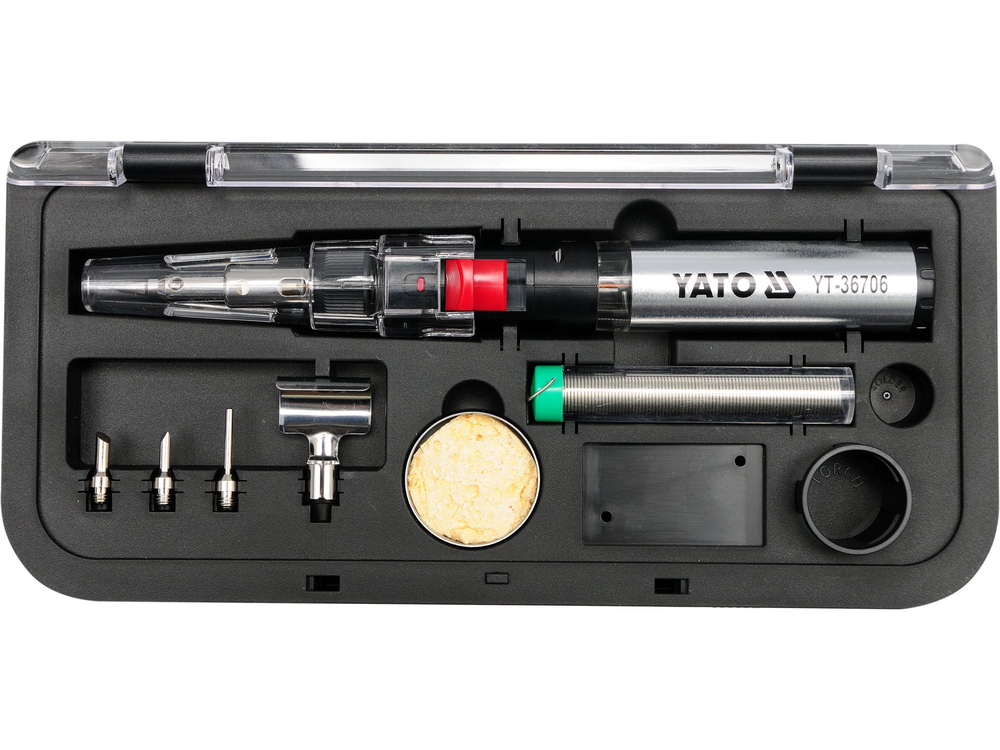

The kit includes:
- tin
- sponge

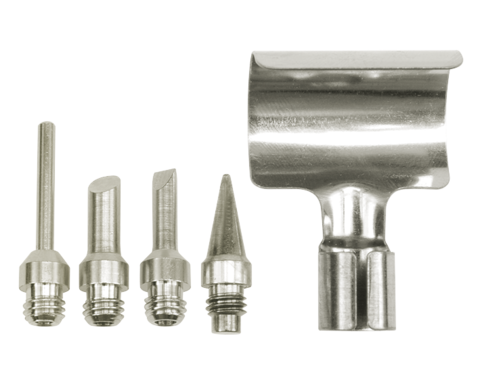

- 4 different spearheads
- Dish

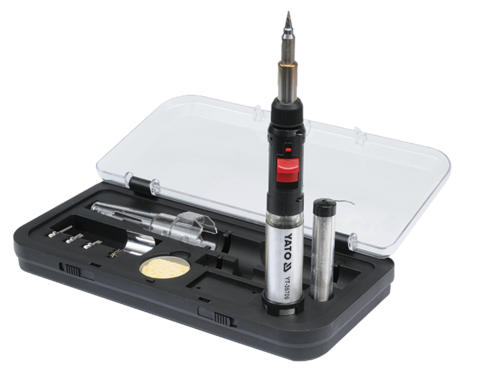

Also, the special box has the function of a soldering iron and tin stand creating a mobile workstation.





Usage warnings:
Use only in well-ventilated rooms.Please read the instructions before using this device.
Connect or change containers in a flameless atmosphere, away from unauthorized persons.
Wear safety glasses when using the set.
