YT-36709
PROPAN-BUTAN BLOW TORCH
- Palnik gazowy z zapłonem piezo o mocy 1,28kW osiąga temperaturę max 1600º C
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
1.28 kW
Flame temperature
1600 ˚C
Gas type
butane from an external cylinder
Gas tank type

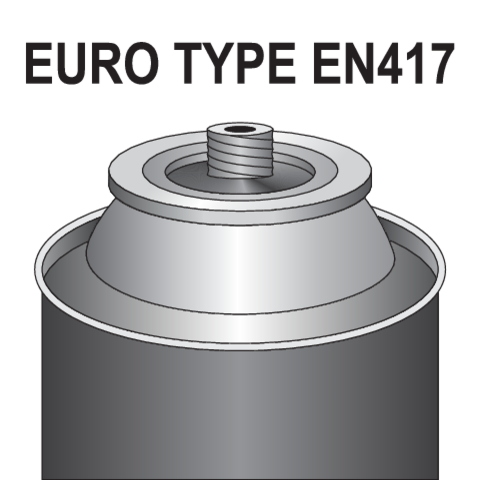

disposable, threaded, self-sealing, under direct pressure, type EN417
Gas tank connection type
90˚ TWIST
Gas usage
93 g/h
Piezo ignition
yes
Operation angle
360 ˚
Head offset
360 ˚
Flame adjustment
yes
Air ingress adjustment
yes
Weight with empty tank
0.19 kg
Application
jewelry, handicraft, modeling, gastronomy, burning small metal or wooden surfaces, lighting fireplaces, grills and stoves, bending and warm forming,
Application contd
heat welding and gluing, unscrewing stuck screws, reheating and thawing, shrinking of heat-shrinkable materials
Symbol
YT-36709

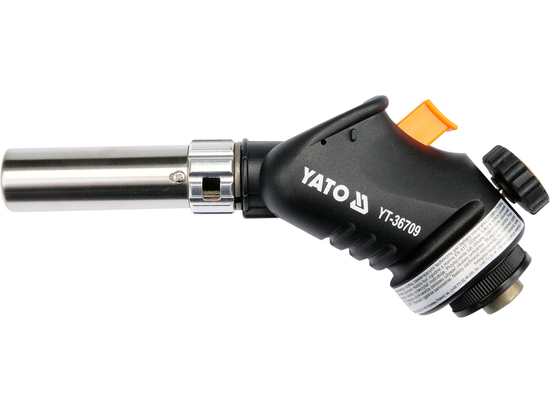

Gas burner with ignition piezo brand YATO YT-36709.
Powered by gas propane-butane from an external cylinder with EN417 connector o power of 1.28kW reaches a maximum temperature 1600 ºC. Gas consumption is 110g/h. With built-in flame power and air supply adjustment it is possible to set the desired flame size.

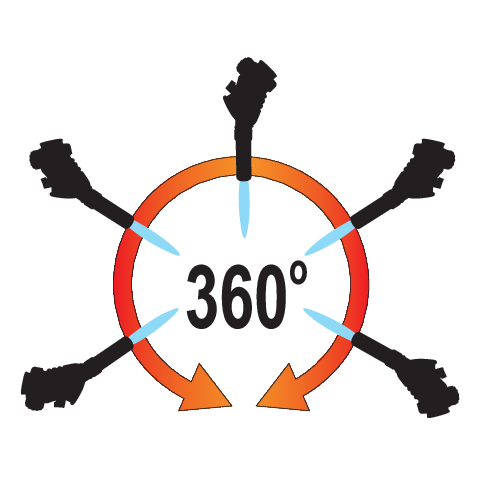

Thanks to its special design, it allows operation at an angle 360º. Thus, it can be used in any position.
It is particularly useful for, among other things:

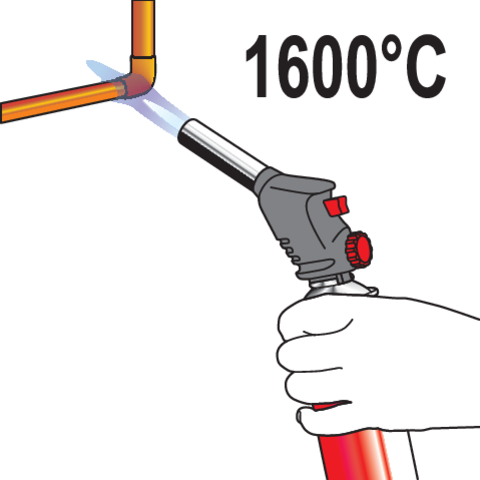

- soft and hard soldering of copper pipes in central heating systems. and water systems
- tinning
- superheating
- paint burning
- defrosting ./li>
- lighting stoves, fireplaces and grills
- loosening screws
- maintenance
Purpose:
It is designed for soft and hard soldering of copper pipes in central heating and water installations
Usage warnings:
The device should only be used with reusable containers containing technical propane-butane gas, equipped with a threaded connection.Gas containers must comply with the EN 417 standard.
Use only in well-ventilated rooms.
Please read the instructions before using this device.
Connect or change containers in a flameless atmosphere, away from unauthorized persons.
Wear safety glasses when using the set.
Turning on the burner: Turn the regulator knob fully in the direction marked "OFF". The flame will go out automatically.
Be careful because the metal parts of the burner became hot during operation. Leave to cool.
