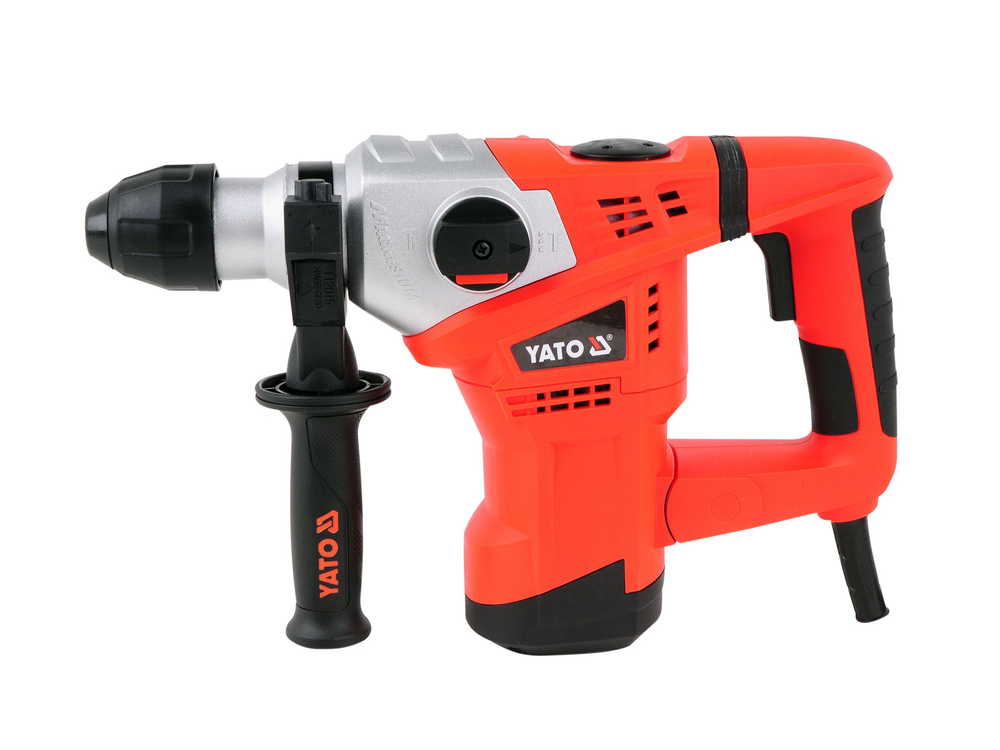

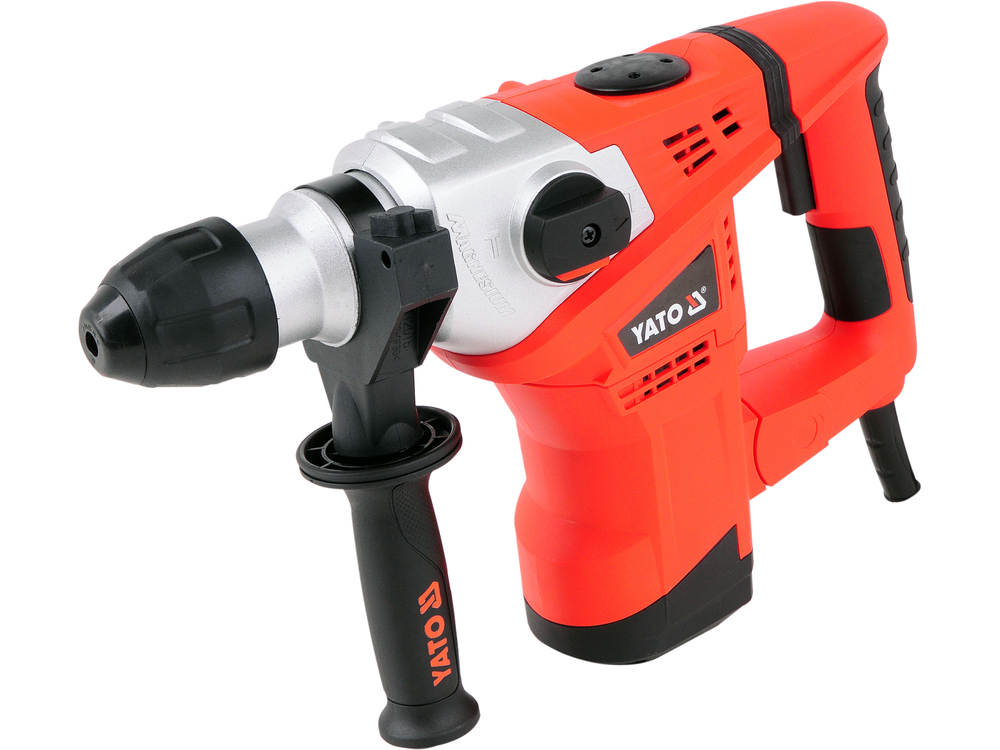

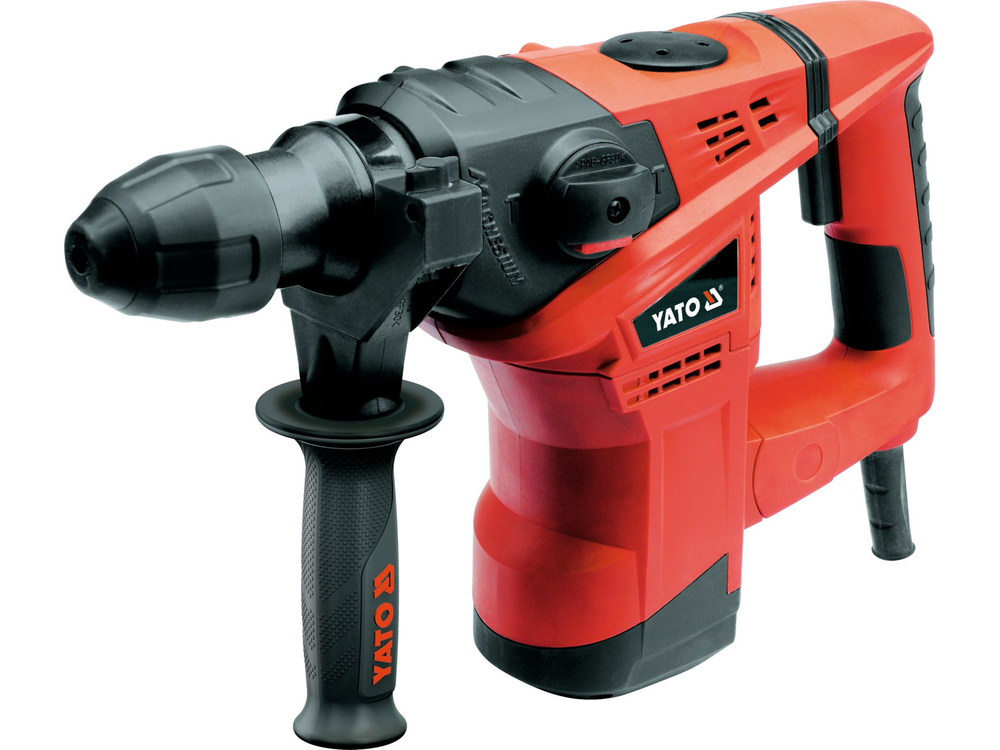

A SDS plus impact hammer drill with 1500 watts of power. It has a clutch made of high-strength steel to protect against overload. The mechanisms are protected by a specially designed reinforced housing. A system of ventilation holes protects the device from dust and optimizes the circulation of air cooling the rotor. The device has a dustproof switch. A vibration damper is built into the handle for increased comfort. The device provides stroke frequency of 3900 (min-1) and stroke energy of 5 J.

High percussion frequency and energy, combined with high speed, provides very fast drilling in reinforced concrete. The weight of 5.7 kg makes it comfortable to work with this device when drilling through ceilings or shoring.
The perfect tool for installers drilling through reinforced concrete ceilings and drilling through thick walls. To work with SDS plus percussion drills up to 1230 mm long, SDS plus chisels with a width also over 40 mm for chipping stoneware, tiling, drilling for boxes and re-drilling conduits for plumbing, ventilation and air conditioning.

Purpose / application

For drilling holes and forging in concrete, natural stone etc., using working tools equipped with SDS plus shank.

The perfect tool for installers drilling in reinforced concrete ceilings.

Method of use

With SDS plus percussion drill bits up to 1230 mm long, SDS plus chisels also over 40 mm wide for chipping stoneware, tiling, drilling for boxes and punching through conduits for plumbing, ventilation and air conditioning.

The factory package should include:

• hammer drill
• extra handle
• drill depth limiter
• drill chuck guard

Technical data:

• ean: 5906083821271
• power [W]: 1500
• udar: Yes
• stroke energy [J]: 5
• work functions: shoring, drilling with impact
• impact frequency [1/min]: 3900
• rotation [1/ min]: 800
• max concrete drilling diameter [mm]: 32
• voltage [V]: 230
• weight [kg]: 5.7
• handle:  SDS plus
• application: concrete
