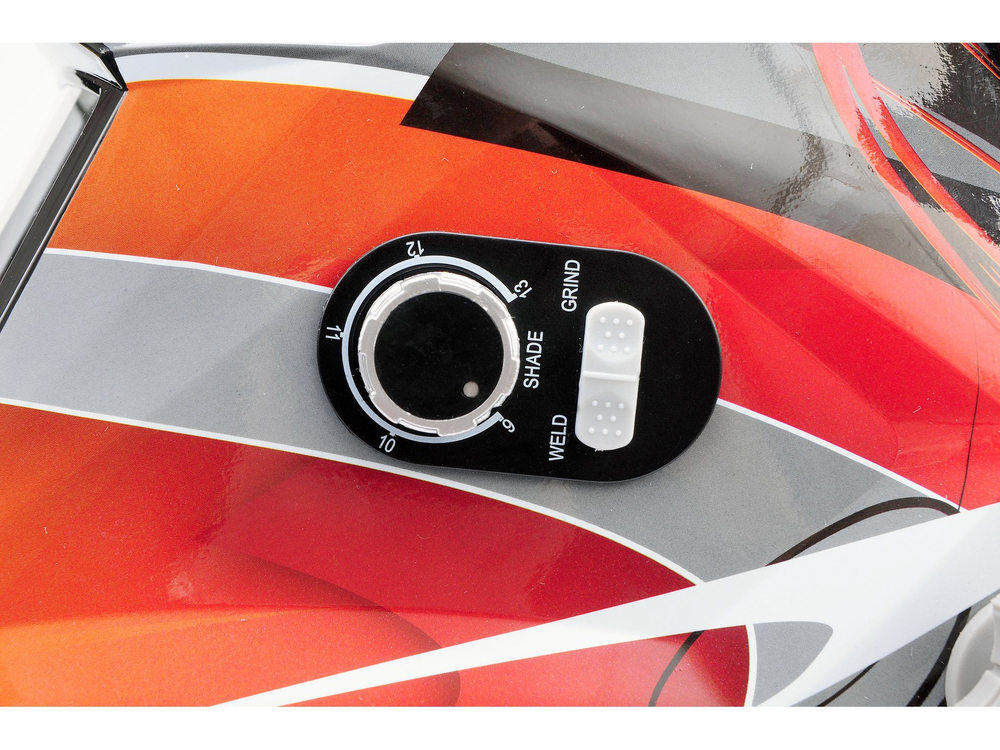

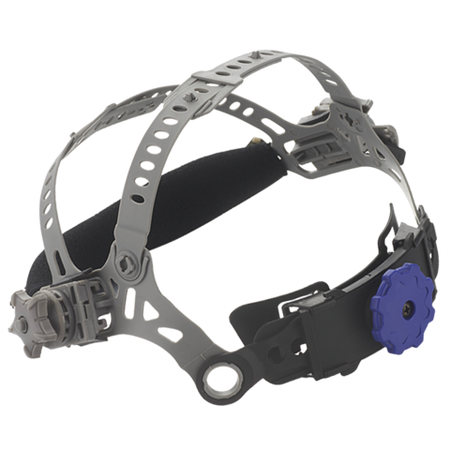

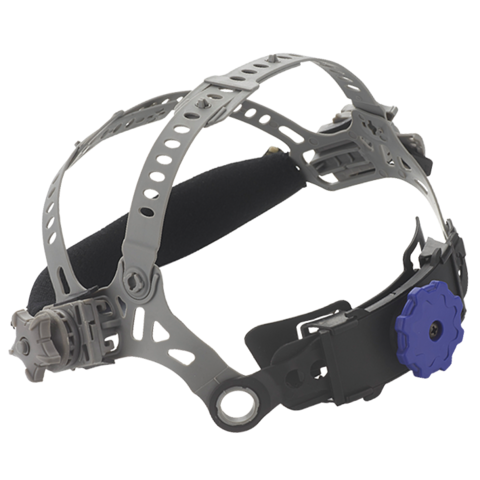

The visor has an infinitely adjustable darkness level, adjustable sensitivity to the intensity of the light source, as well as adjustable time for maintaining the dark state after welding. A button on the outer shell in the grind setting disables the dimming function. The helmet can then be used as a means of personal protection against, for example, sparks from cutting or grinding metal. The four-point harness, thrusters, size adjustment system and working angles allow the helmet's position to be adapted to individual requirements and working comfort.

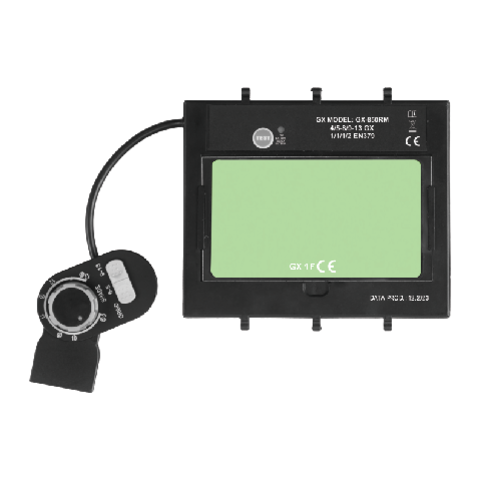

The filters have a TEST button to check the operation of the self-dimming function. A routine of checking the filter every time will help protect the operator's eyes and health.

• filter type: self-darkening, true colour
• optical properties: 1 / 1 / 1 / 2
• field of vision: 99x56 mm
• filter size: 126x103 mm
• response time: 0.3-1.0 ms
• brightening time: 0.1-1.0 s
• number of arc detectors: 4
• dark condition: 5-8 | 9-13 DIN
• bright condition: 4 DIN
• filter test
• sensitivity adjustment
• dimming adjustment
• power supply: solar cell + 2xCR2450
• uV/IR resistance: yes, DIN 16
• Operating temperature range: -5 ~ +55 ˚C

*In visor versions available on the market from 04.2024r
