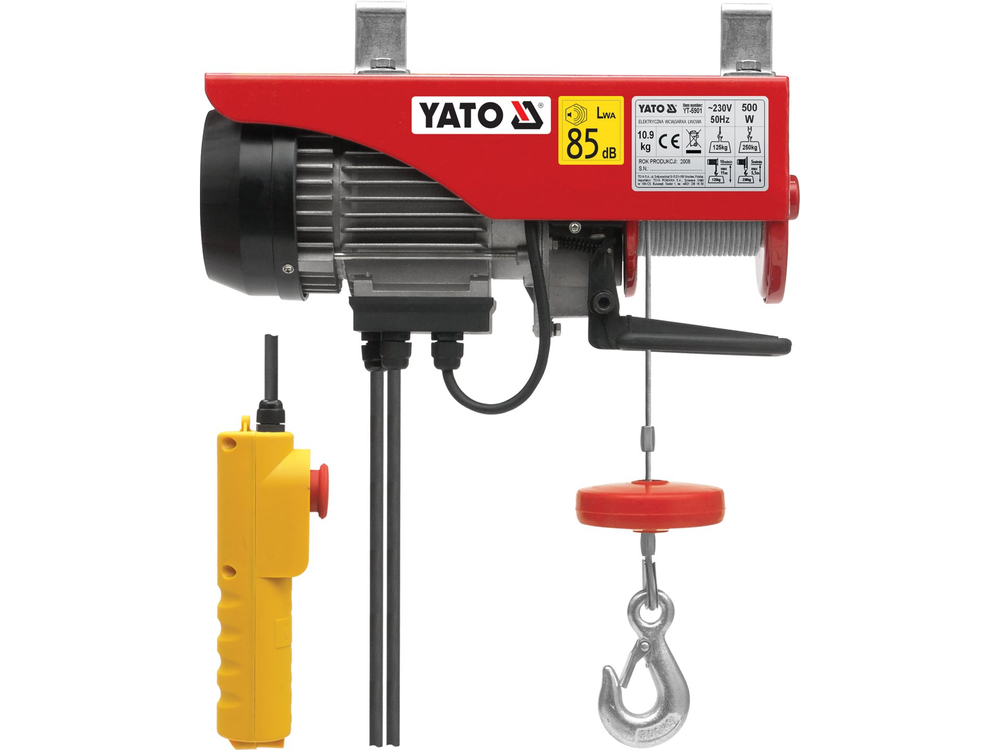

YT-5901
ELECTRIC HOIST 500 W, 250 KG
- Urządzenie do wciągania ładunku w osi pionowej na duże wysokości.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
500 W
Max. weight
125 (without extra hook), 250 (with additional hook) kg
Max. lifting height
11 (without additional hook), 5.5 (with additional hook) m
Lifting speed
8 (without additional hook), 4 (with additional hook) m/min
Voltage
230 V a.c.
Frequency
50 Hz
Rope length
12 m
Rope diameter
3 mm
Rope strength
≥1870 N/mm²
Working mode
S3 20% 10 min
Mechanisms group
M1
Nominal current
2.2 A
Electric insulation class
I
Insulation grade
B
Protection grade
IP54
Acoustic pressure
52.2 ± 1.2 dB(A)
Acoustic power
73.6 ± 2.31 dB(A)
Weight
10.5 kg
Symbol
YT-5901








Application: construction industry, executive companies. The winch is used to pull the load in the vertical axis at high heights. Construction: Supporting element: Steel cable, the drive is an electric motor, low-speed gearbox, electro-mechanical brake blocking the gear when the power supply is disconnected, the control console on a long electric cable, the market square switch.
