YT-5904

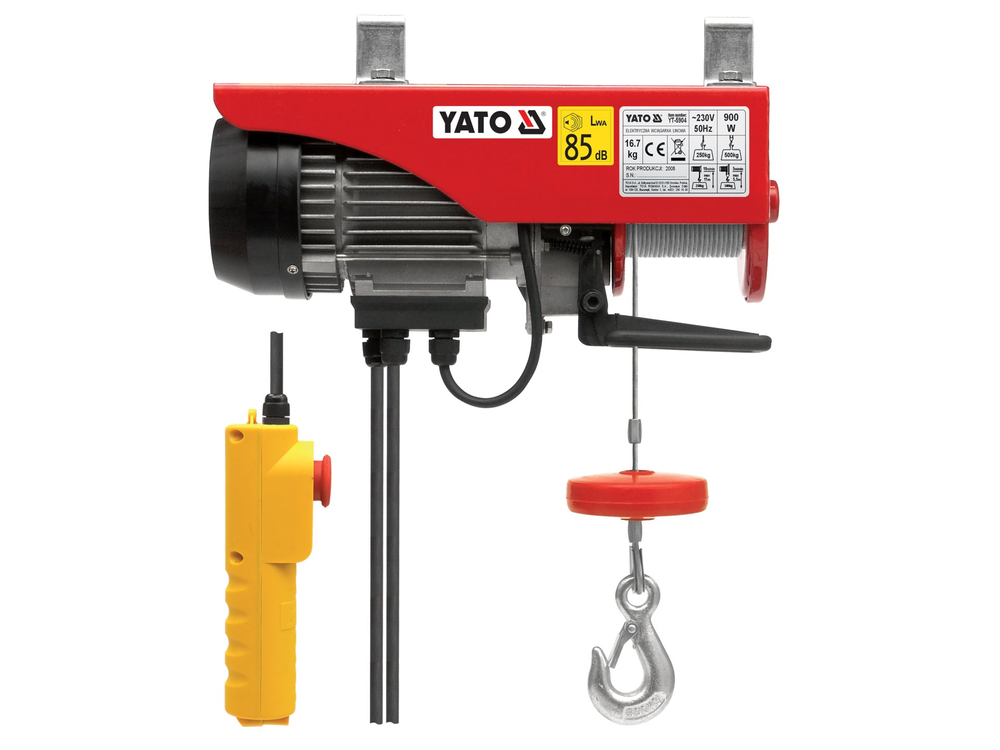

ELECTRIC HOIST 900 W, 500 KG

+ Add to compare Add to shopping list

Urządzenie do wciągania ładunku w osi pionowej na duże wysokości.

Brand

Yato

Symbol

YT-5904

Producer code

5906083959042

Series

GRF

Power

900 W

Maximum weight

250 (without an additional hook), 500 (with an additional hook) kg

Lifting height

11 (without an additional hook), 5.5 (with an additional hook) m

Lifting speed

8 (without an additional hook), 4 (with an additional hook) m/min

Voltage

230 V a.c.

Frequency

50 Hz

Rope length

12 m

Średnica liny

4.2 mm

Rope strength

≥ 1770 N/mm²

Operating mode

S3 25% 10 min

A group of mechanisms

Rated current

4 A

Electrical insulation class

Insulation degree

Ingress protection

IP54

Acoustic pressure

54.0 ± 0.9 dB(A)

Acoustic power

78.0 ± 6.57 dB(A)

Weight

16.5 kg

Application: construction industry, contractors. The winch is used to pull the load in the vertical axis to great heights. Construction: carrying element: braided steel cable, drive is an electric motor, slow-motion gearbox, electro-mechanical brake blocking the gearbox when the power supply to the motor is disconnected, control console on a long electric cable, mechanical limit switch.

For pulling small loads during construction work.
