YT-5914

ROPE WINCH 1500 DAN

+ Add to compare Add to shopping list

Wyciągarka linowa z napędem ręcznym może przesuwać ładunki o ciężarze do ok. 1530 kg na odległość ok. 3 m.

Brand

Yato

Symbol

YT-5914

Producer code

5906083959141

Series

GRF

Stretch force

1500 daN

Rope length

3 m

Średnica liny

6 mm

Transmission of the lever

15:1

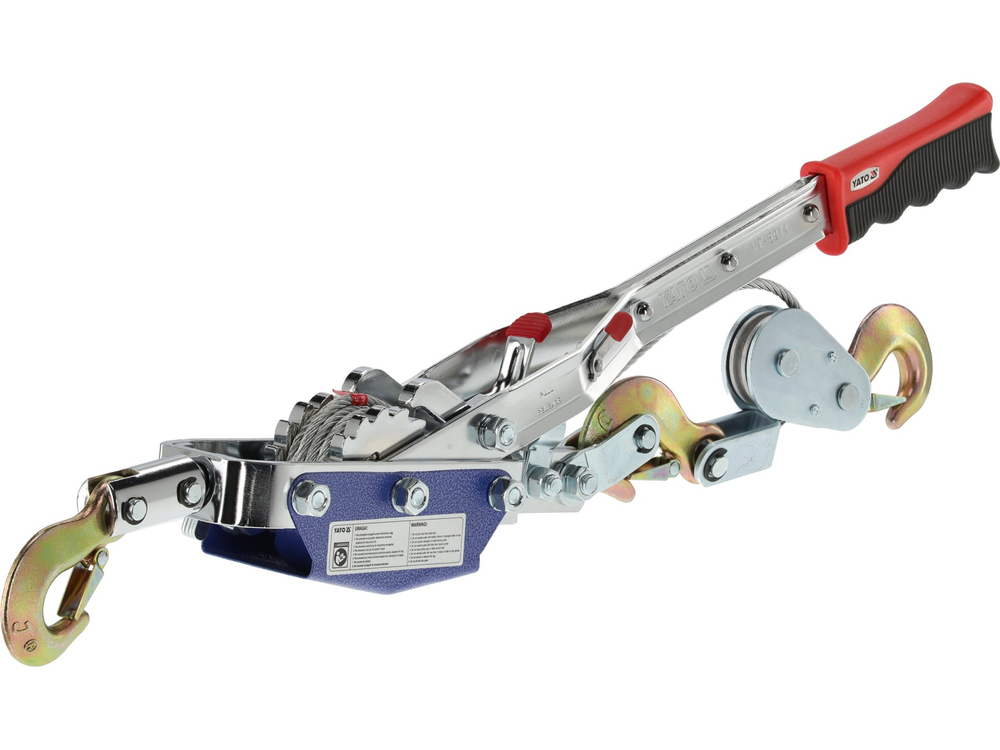

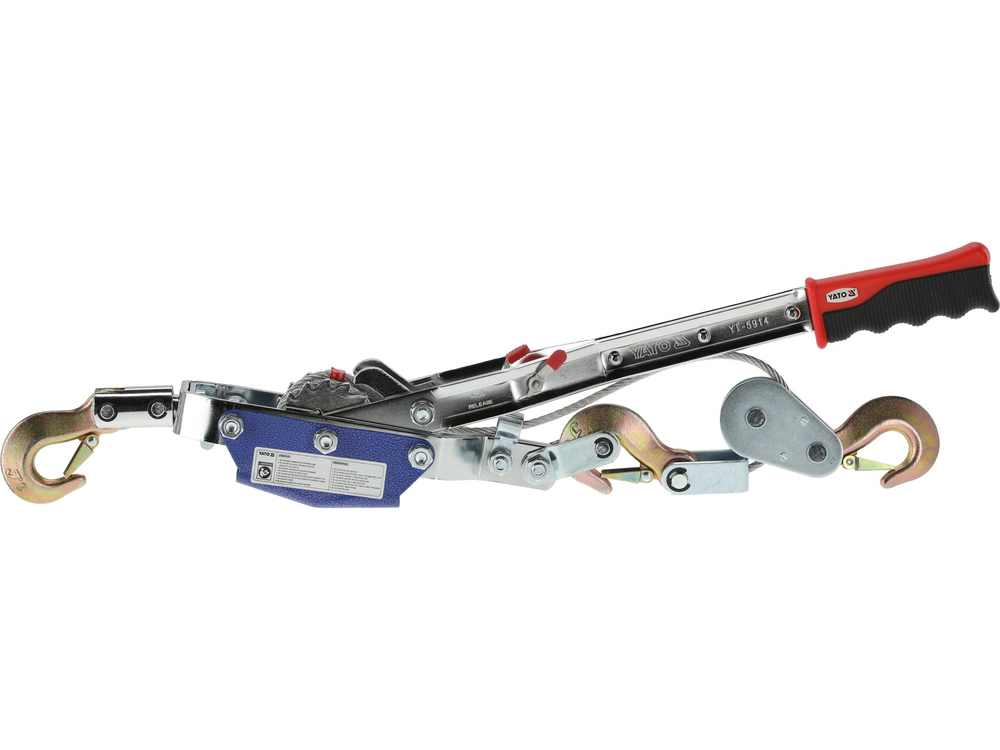

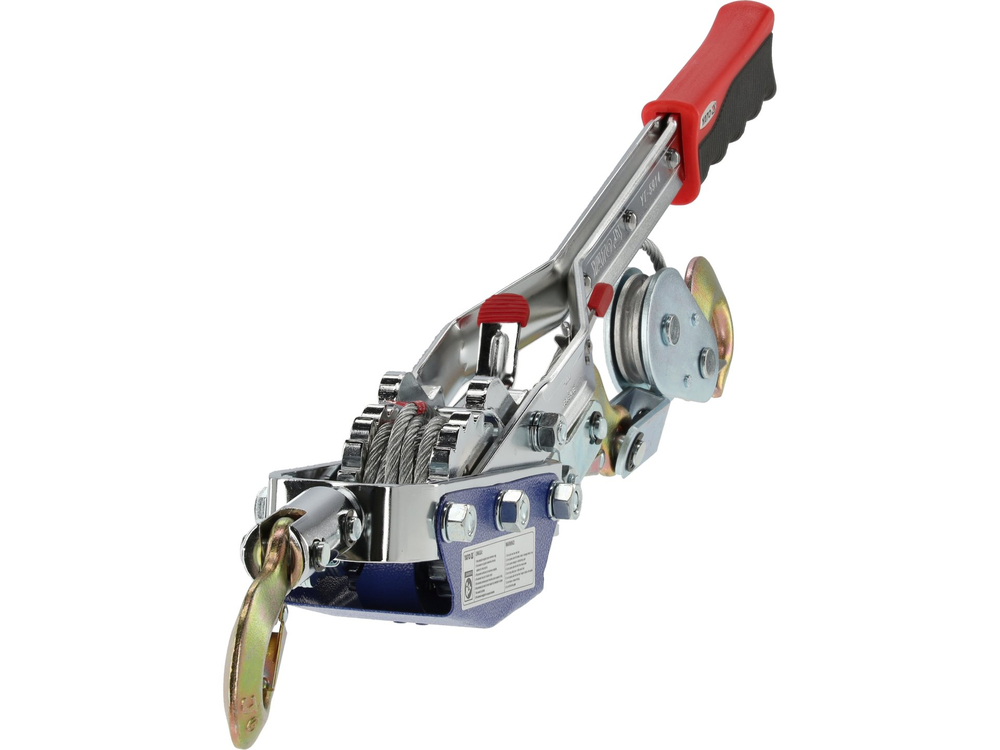

The hand -driven cable strip consists of a steel body containing the drum, gears and a large, properly selected ratio. The drive lever is used to move the drum and wind the steel rope. The winch can move loads with a weight of up to approx. 1530 kg over 3 m. The cable knocking machine with manual drive is used to transport loads in a horizontal plane, e.g. to drag the chests on the ramp. Due to the construction, it must not be used for vertical weightlifting. Removing the rope: - attach the fixed hook to the fixed base - move the arm lock lever - lift the strander arm slightly - move the drum lock lever - pull the rope to the desired length ropes or load displacement release of the rope stress: - move the arm lock lever - move the winch arm to such a position that the arm of the arm lock lever releases the drum blockade; The drum will jump over one tooth - repeat the surgery until the required rope expansion is achieved

To download

User manual YT-5914
