87337

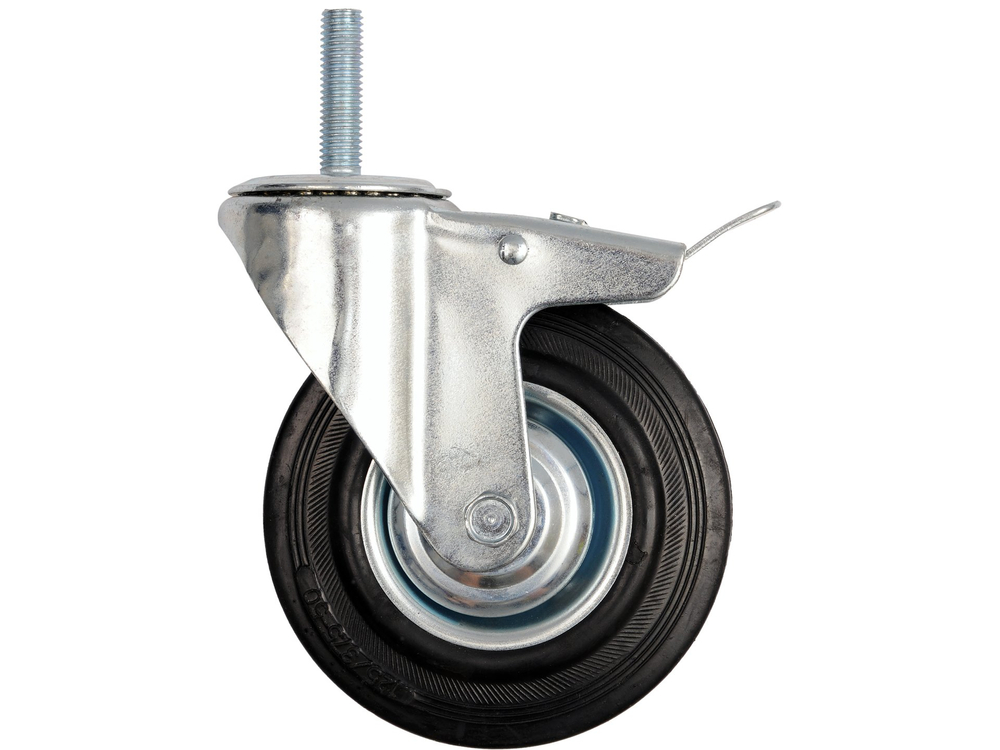

THREADED STEM DOUBLE BRAKE SWIVEL CASTER WITH BLACK RUBBER 200MM
- Koło średnica 200 mm, skrętne, z mocowaniem na trzpieniu gwintowanym, łożyskowane.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Diameter
200 mm
Max. load capacity
150 kg
Height
230 mm
Width
44 mm
Material
black rubber
Type
swivel
Brake
yes
Bearing
yes
Bearing type
roller
Mounting type
threaded pin
Thread size
M16
Temperature tolerance
-10 ~ +50 ˚C
Symbol
87337

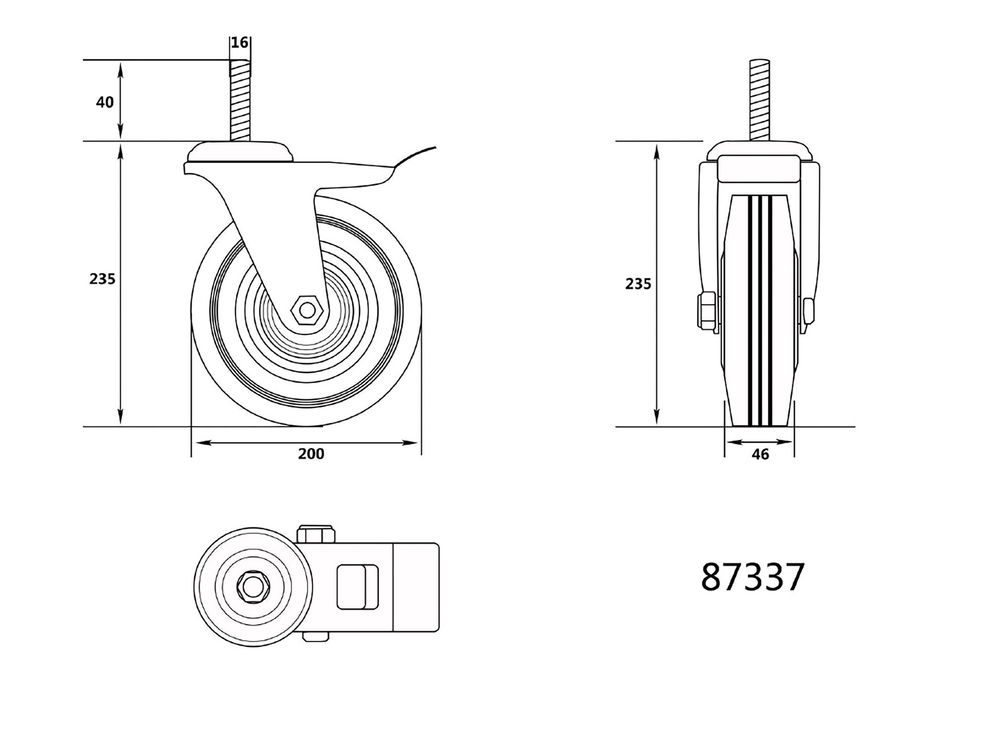

Wheel diameter 200 mm, swivel, with mounting on a threaded pin, bearing, with brake, tire made of black rubber, height 230 mm.
Parameters:
- wheel diameter (mm): 200
- wheel width (mm): 44
- cóblade height (mm): 230
- maximum load (kg): 150
- fastening pin: M16
