71822
CONNECTION HOSE F/M 1/2" 1/2" 500MM
- Elastyczny wąż przyłączeniowy w oplocie ze stali nierdzewnej. Długość 500mm. Gwint przyłączeniowy: żeński 1/2" x męski 1/2".
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Length
500 mm
Material
stainless steel, EPDM rubber
Internal diameter
8 mm
External diameter
12 mm
Connector thread size
G1/2(F) x G1/2(M)
Water flow
32 l/min
Max. pressure
1 MPa
Max. temperature
70 ˚C
Application
connecting toilet flushers, connecting valves
Symbol
71822

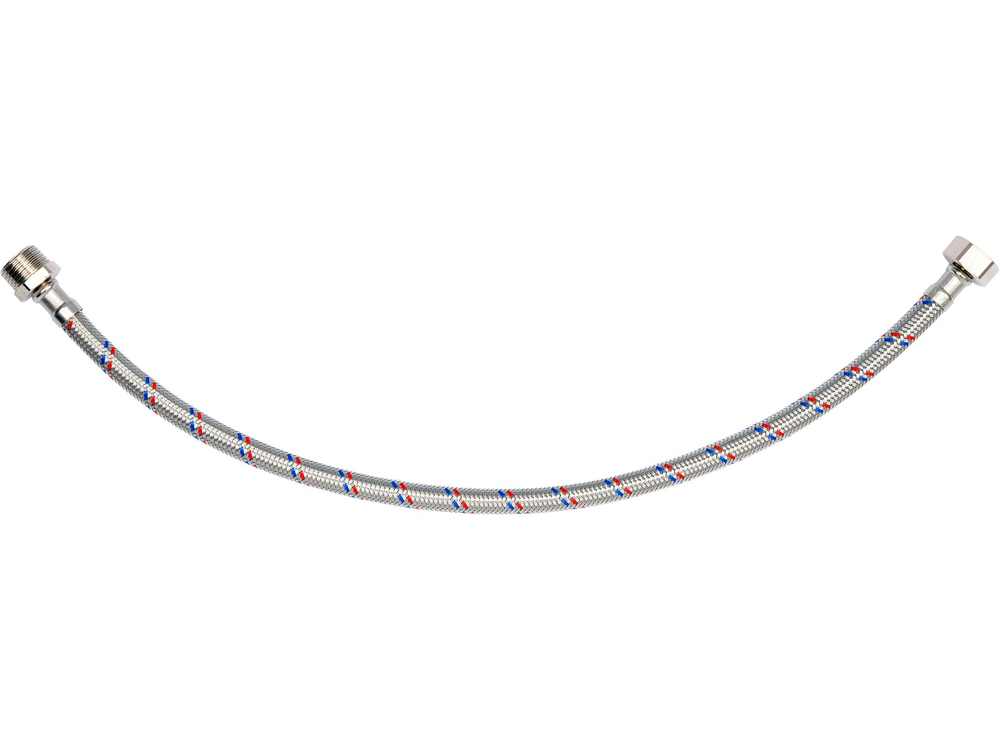

Flexible stainless steel braided connection hose. It is designed for hot and cold water. It has a PZH certificate for contact with drinking water. Length 500mm. Max pressure 1MPa. Max temp 90st C. Average flow rate 32L/min. Inner diameter 8mm and outer diameter 12mm. Connection thread: female 1/2" x male 1/2". Rubber hose made of EPDM rubber, nickel-plated brass connections, EPDM rubber gasket. It is designed from connecting toilet cisterns or valves.
Purpose/Application
It is designed from the connection of toilet cisterns or valves.
Parameter
Parameters
- Material: rubber
- Length [mm]: 500
- connection size: 1/2 "F x 1/2 "M
