71836
CONNECTION HOSE F/M 3/8" 3/8" 600MM
- Elastyczny wąż przyłączeniowy w oplocie ze stali nierdzewnej. Długość 600mm. Gwint przyłączeniowy: żeński 3/8" x męski 3/8".
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Length
600 mm
Material
stainless steel, EPDM rubber
Internal diameter
8 mm
External diameter
12 mm
Connector thread size
G3/8(F) x G3/8(M)
Water flow
32 l/min
Max. pressure
1 MPa
Max. temperature
70 ˚C
Application
connecting toilet flushers, connecting valves
Symbol
71836

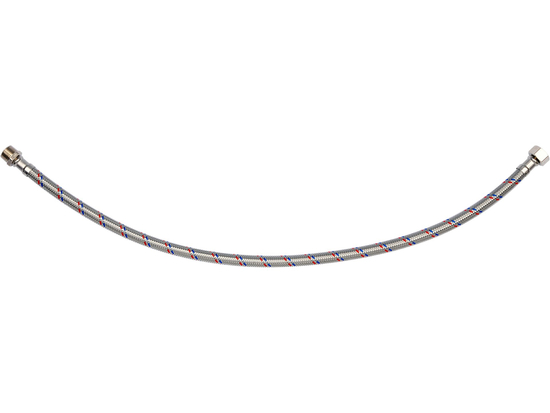

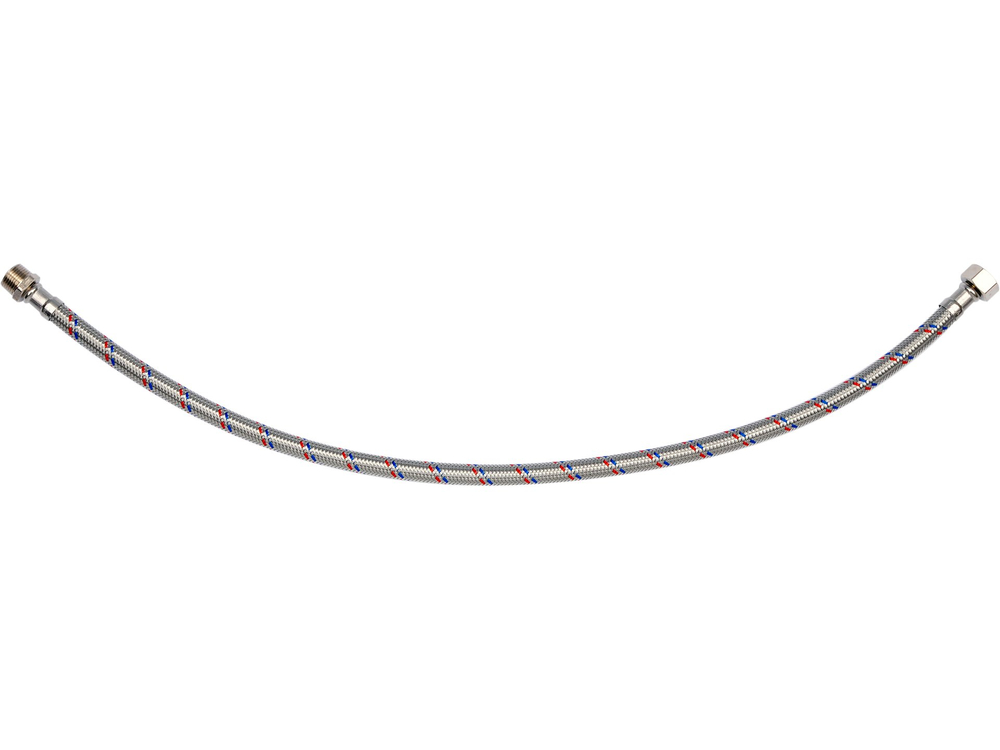

Flexible stainless steel braided connection hose. It is designed for hot and cold water. It has a PZH certificate for contact with drinking water. Length 600mm. Max pressure 1MPa. Max temp 90st C. Average flow rate 32L/min. Inner diameter 8mm, and outer diameter 12mm. Connection thread: female 3/8" x male 3/8". Rubber hose made of EPDM rubber, nickel-plated brass connections, EPDM rubber gasket. It is designed from the connection of toilet cisterns or valves.
Purpose/Application
It is designed from the connection of toilet cisterns or valves.
Dedicated to the connection of toilet cisterns or valves
Technical data
- length [mm]: 600
- material: rubber
- connection size: 3/8 "F x 3/8 "M
