71849

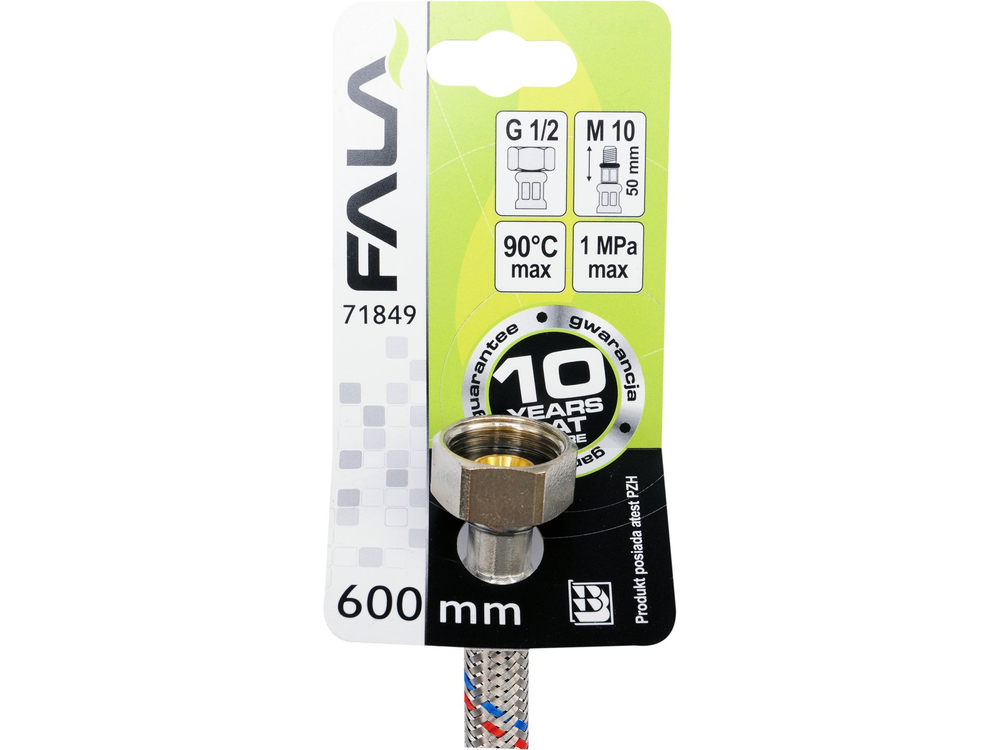

CONNECTION HOSE F/M 1/2" M10X1 600MM
- Elastyczny wąż przyłączeniowy w oplocie ze stali nierdzewnej do baterii. Długość 600mm. Gwint przyłączeniowy: żeński 1/2" x męski M10 (50mm długi).
Brand
Symbol
71849
Producer code
5906083718496
Series
Material
stainless steel, EPDM gum
Length
600 mm
Inside diameter
8 mm
Średnica zewnętrzna
12 mm
Connection thread size
G1/2 (f) x M10x1 (50 mm long)
Water flow
32 l/min
Max. pressure
1 MPa
Max temperature
70 ˚C
Application
Connecting toilet cisaches, connecting valves
Flexible stainless steel braided faucet connection hose. It is designed for hot and cold water. It is certified by the National Institute of Hygiene for contact with potable water. It is designed from the connection of stubby basin and bathtub faucets with valves.
- EpDM rubber hose
- Nickel-plated brass fittings
- EpDM rubber seal
Parameters
- material: rubber
- length [mm]: 600
- connection size: 1/2 "F x M10x1 M
- average flow [l/min]: 32
- internal diameter [mm]: 8
- outside diameter [mm]: 12
