71856

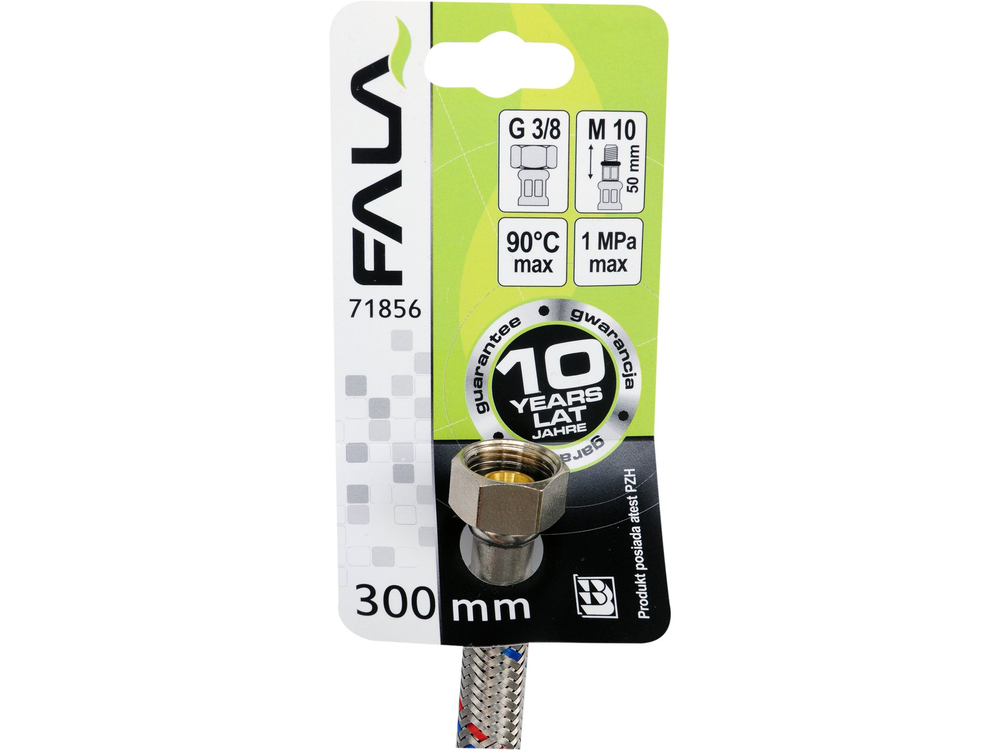

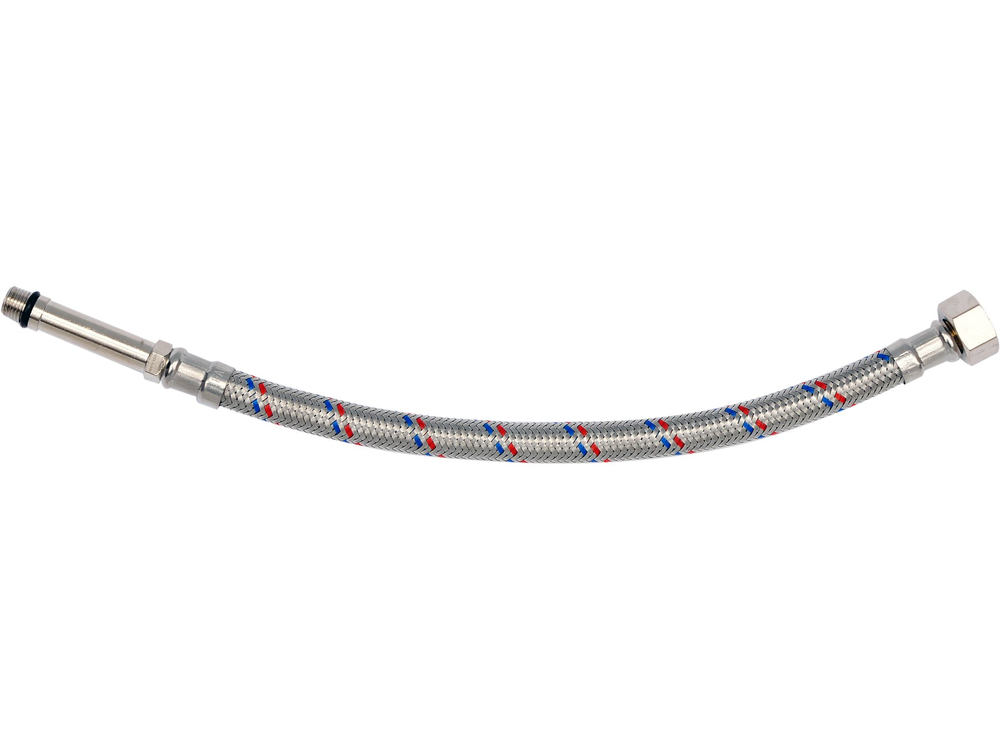

CONNECTION HOSE F/M 3/8" M10X1 300MM
- Elastyczny wąż przyłączeniowy w oplocie ze stali nierdzewnej do baterii. Długość 300mm. Gwint przyłączeniowy: żeński 3/8" x męski M10 (50mm długi).
Brand
Symbol
71856
Producer code
5906083718564
Series
Material
stainless steel, EPDM gum
Length
300 mm
Inside diameter
8 mm
Średnica zewnętrzna
12 mm
Connection thread size
G3/8 (f) x M10x1 (50 mm long)
Water flow
32 l/min
Max. pressure
1 MPa
Max temperature
70 ˚C
Application
Connecting toilet cisaches, connecting valves
Flexible connection hose for faucets braided stainless steel. It is designed for hot and cold water.
- It is approved by the PZH for contact with drinking water.
Purpose/application
It is designed from the connection of stilettos faucets washbasin and bathtub with valves.
Parameters:
- Material: EPDM rubber, nickel-plated brass connections, EPDM rubber gasket
- average flow [l/min]: 32
- internal diameter [mm]: 8
- external diameter [mm]: 12
- connection thread: female 3/8" x male M10 (50 mm long)
- length [mm]: 300
