71858

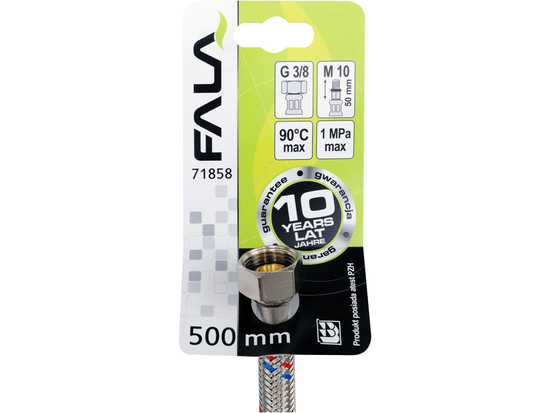

CONNECTION HOSE F/M 3/8" M10X1 500MM
- Elastyczny wąż przyłączeniowy w oplocie ze stali nierdzewnej do baterii. Długość 500mm. Gwint przyłączeniowy: żeński 3/8" x męski M10 (50mm długi).
Brand
Symbol
71858
Producer code
5906083718588
Series
Length
500 mm
Material
stal nierdzewna, guma EPDM
Inside diameter
8 mm
Średnica zewnętrzna
12 mm
Connection thread size
G3/8 (f) x M10x1 (50 mm long)
Water flow
32 l/min
Max. pressure
1 MPa
Max temperature
70 ˚C
Application
Connecting toilet cisaches, connecting valves
Flexible stainless steel braided connection hose for faucets. It is designed for hot and cold water.
- It is approved by the PZH for contact with drinking water.
Rubber hose made of EPDM rubber, nickel-plated brass connections, EPDM rubber gasket.
Parameters:
- length 500 mm
- average flow rate 32 L/min
- internal diameter 8 mm, and external diameter 12 mm
- connection thread: 3/8" female x M10 male (50 mm long)
Purpose / application
It is designed from the connection of washbasin and bathtub faucets with valves.
