71860

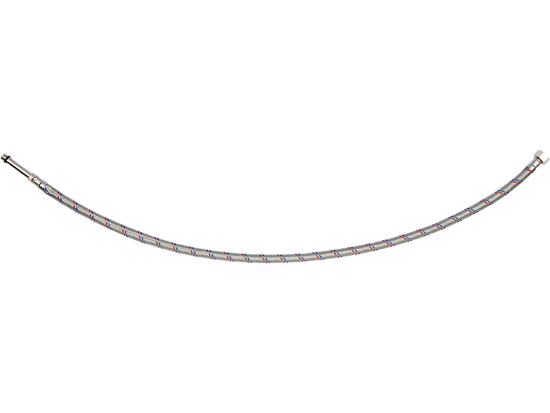

CONNECTION HOSE F/M 3/8" M10X1 800MM
- Elastyczny wąż przyłączeniowy w oplocie ze stali nierdzewnej do baterii. Długość 800mm. Gwint przyłączeniowy: żeński 3/8" x męski M10 (50mm długi).
Brand
Symbol
71860
Producer code
5906083718601
Series
Material
stainless steel, EPDM gum
Length
800 mm
Inside diameter
8 mm
Średnica zewnętrzna
12 mm
Connection thread size
G3/8 (f) x M10x1 (50 mm long)
Water flow
32 l/min
Max. pressure
1 MPa
Max temperature
70 ˚C
Application
Connecting toilet cisaches, connecting valves
Flexible stainless steel braided connection hose for faucets. It is designed for hot and cold water. It is certified by PZH for contact with drinking water. Length800mm. Max pressure 1MPa. Max temp 90st C. Average flow rate 32L/min. Inner diameter 8mm and outer diameter 12mm. Connection thread: female 3/8" x male M10 (50mm long). Rubber hose made of EPDM rubber, nickel-plated brass connections, EPDM rubber gasket. It is designed from the connection of basin and bathtub taps with valves.
Purpose / application
It is designed from the connection of stilettos faucets for washbasins and bathtubs with valves.
Parameter
Parameters
- material: rubber
- length [mm]: 800
- connection size: 3/8 "F x M10x1 M
