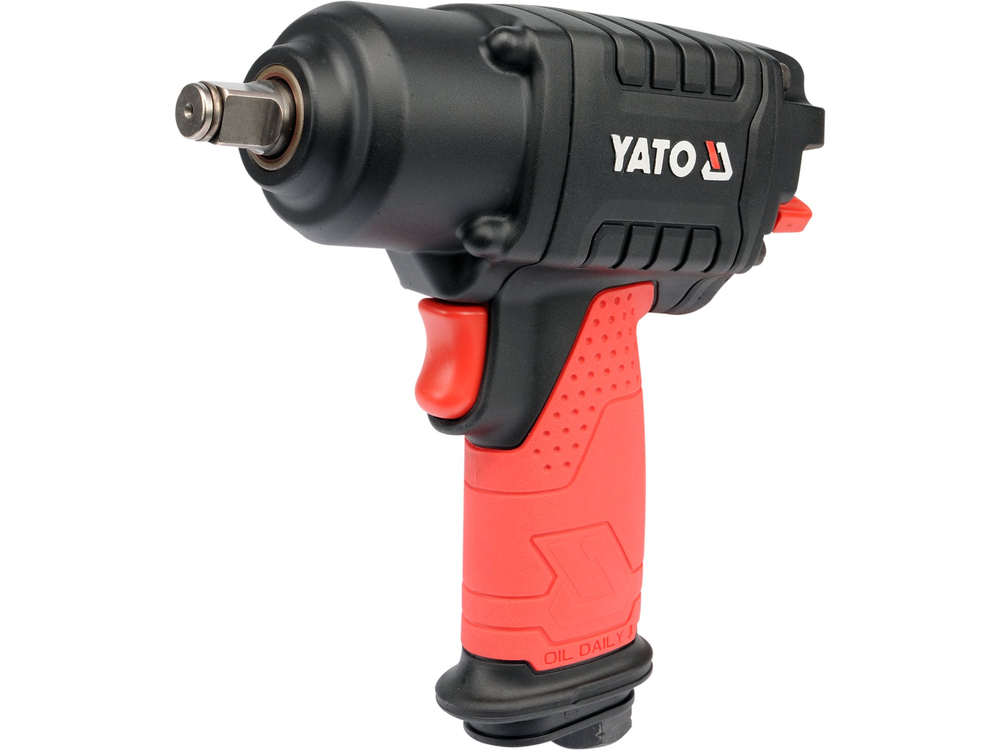

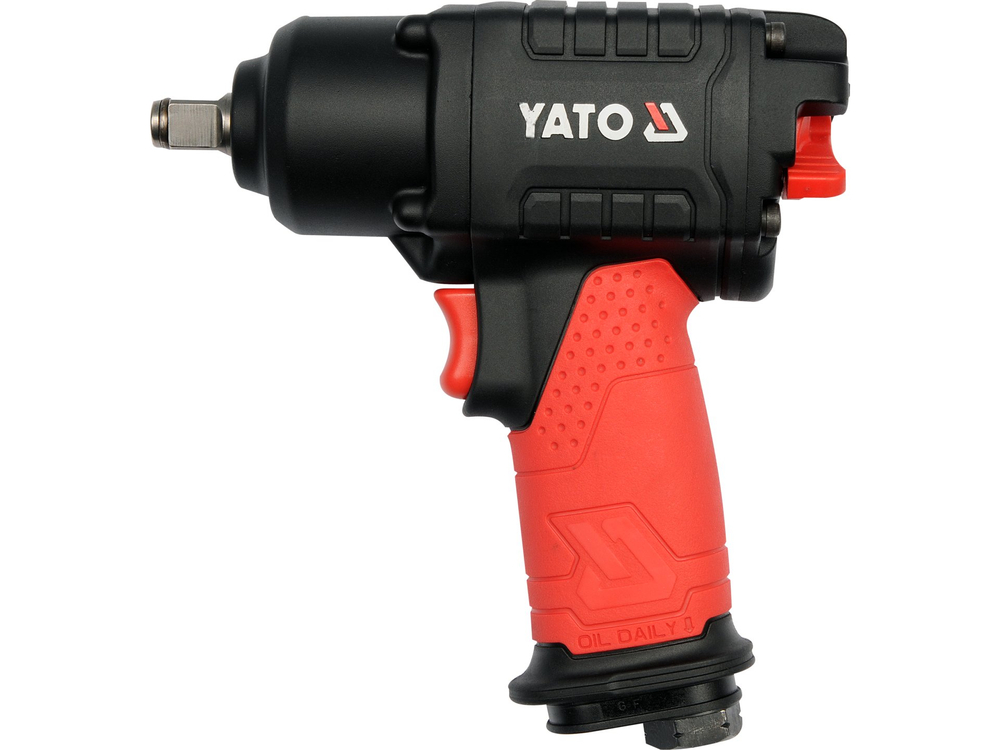

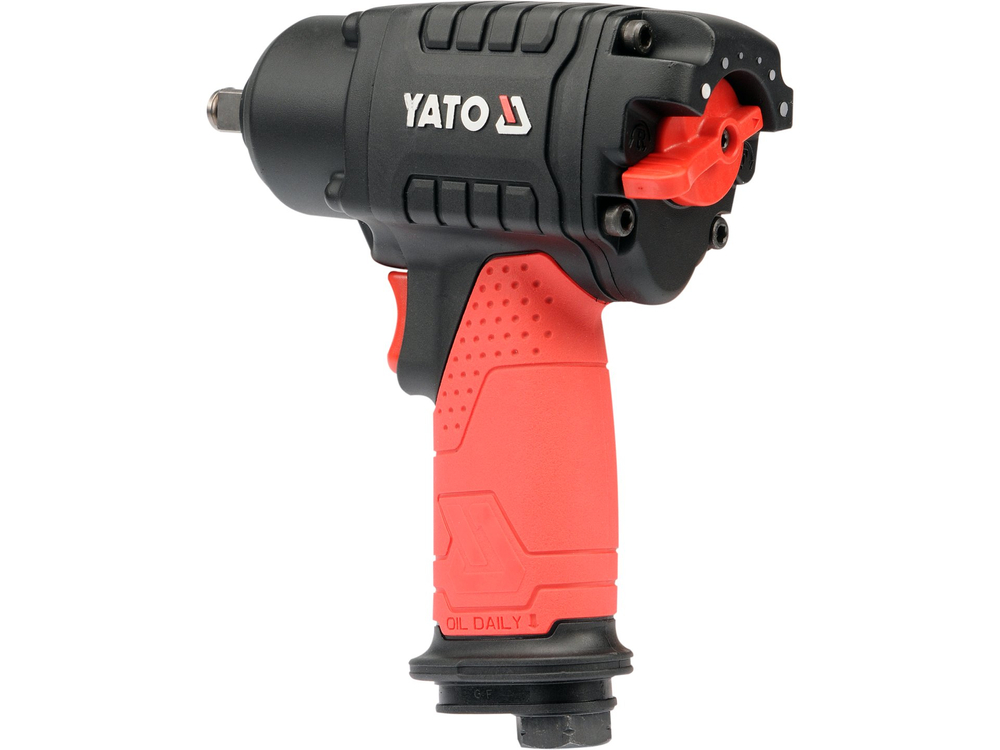

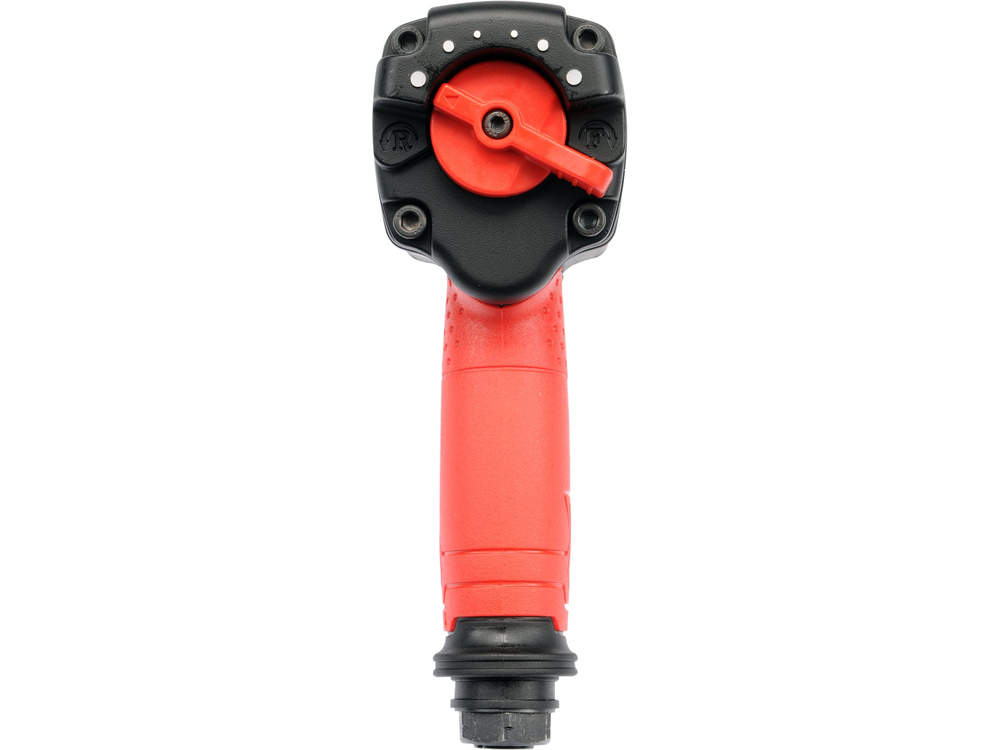

YT-09505
TWIN HAMMER IMPACT WRENCH
- Klucz pneumatyczny 1/2" 570 Nm marki YATO.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1/2" (12.7 mm)
Toolholder type
Driver
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
142 l/min
Rotations
10000 min⁻¹
Max. torque
570 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
170 mm
Casing material
composite, duralumin

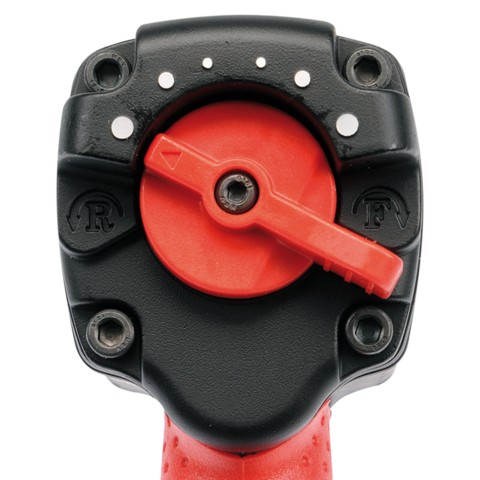

Rotation switch
yes
Acoustic pressure
97.0 ± 3.0 dB(A)
Acoustic power
101.7 ± 3.0 dB(A)
Vibrations
3.0 ± 1.5 m/s²
Weight
1.4 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09505
Pneumatic wrench 1/2" 570 Nm by YATO.
- Made of composite casting and duralumin.

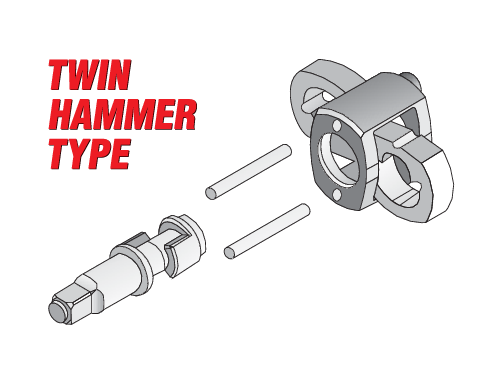

- The TWIN HAMMER impact mechanism guarantees high efficiency and outstanding durability.
- Application in industry, mechanical service and auto repair shops.
