YT-0953
TWIN HAMMER IMPACT WRENCH 1/2, 1356 NM''
- Klucz pneumatyczny 1356 Nm marki Yato.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1/2" (12.7 mm)
Toolholder type
Driver
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
153 l/min
Rotations
10000 min⁻¹
Max. torque
1356 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
193 mm
Casing material
composite, duralumin
Rotation switch
yes
Acoustic pressure
93.7 ± 3.1 dB(A)
Acoustic power
104.7 ± 3.1 dB(A)
Vibrations
4.4 ± 0.4 m/s²
Weight
2.02 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-0953

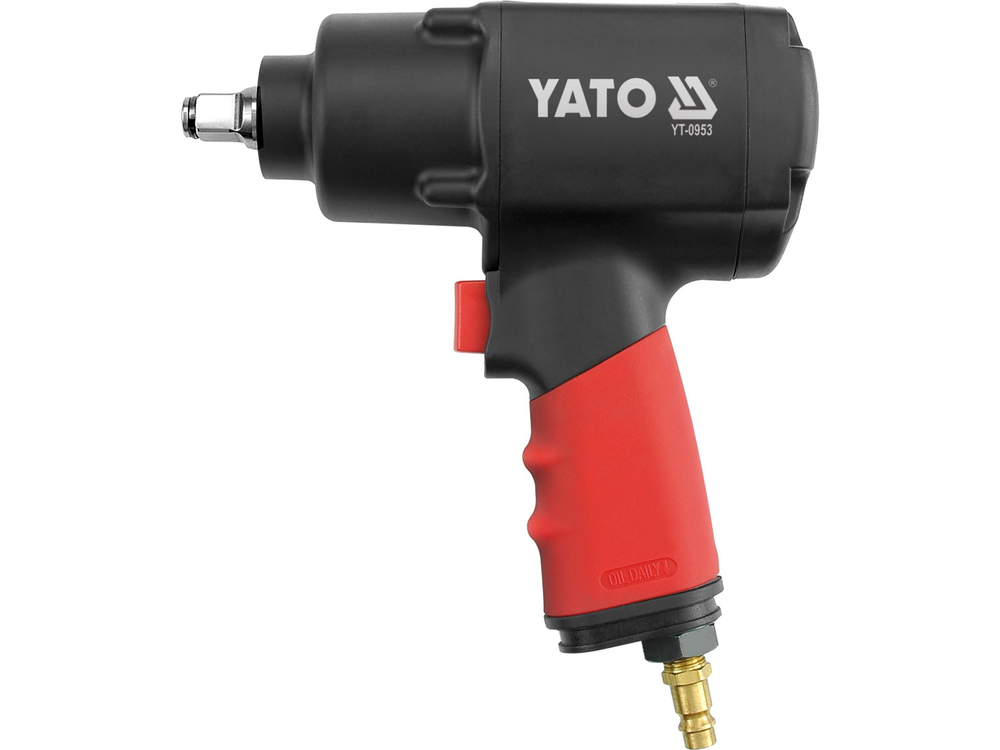

Pneumatic wrench 1356 Nm by Yato.
- Made of composite casting and duralumin.

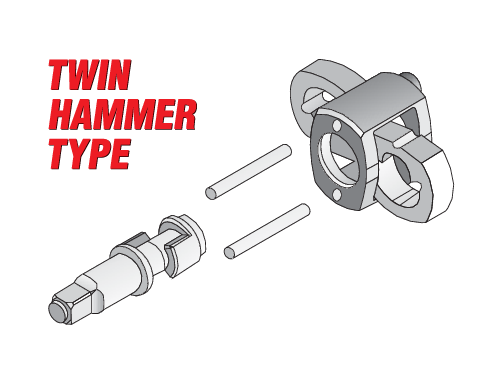

- The TWIN HAMER type impact mechanism guarantees efficiency when unscrewing and provides outstanding durability.
- START-STOP system allows to minimize the idle time of the device.
- Integrated Torque Regulator protects against threadó overload, minimum tightening torque about 90 Nm.
- Low weight - 2 kg
- Highest power in the class of 1/2 wrenches - 1356 Nm

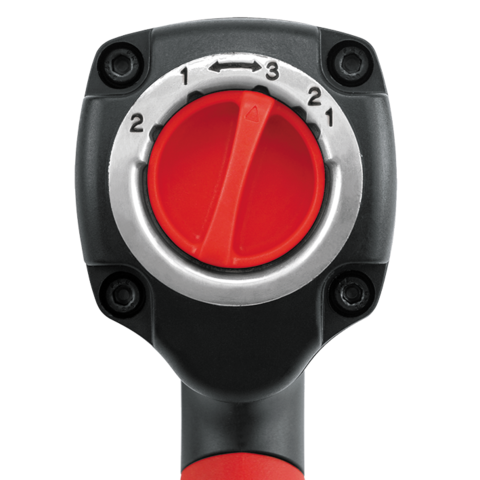

Rating values obtained on each setting:
1. 814 Nm
2. 1085 Nm
3. 1356 Nm
