YT-09540
TWIN HAMMER IMPACT WRENCH
- Klucz pneumatyczny 1/2" 1150 Nm marki YATO.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder type
Operator
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
153 l/min
Rotations
10000 min⁻¹
Max. torque
1150 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Length
195 mm
Casing material
composite, duralumin

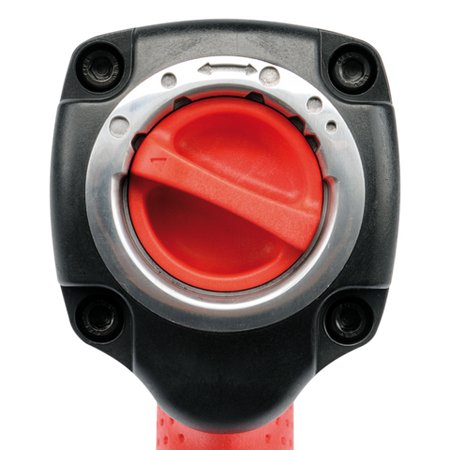

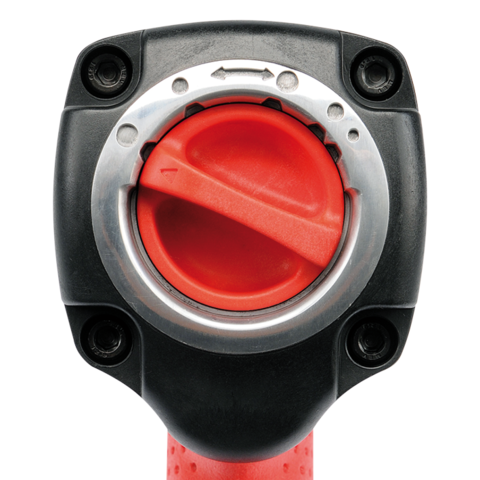

Rotation switch
yes
Acoustic pressure
93.7 ± 3.1 dB(A)
Acoustic power
104.7 ± 3.1 dB(A)
Vibrations
4.4 ± 0.4 m/s²
Weight
2.05 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09540

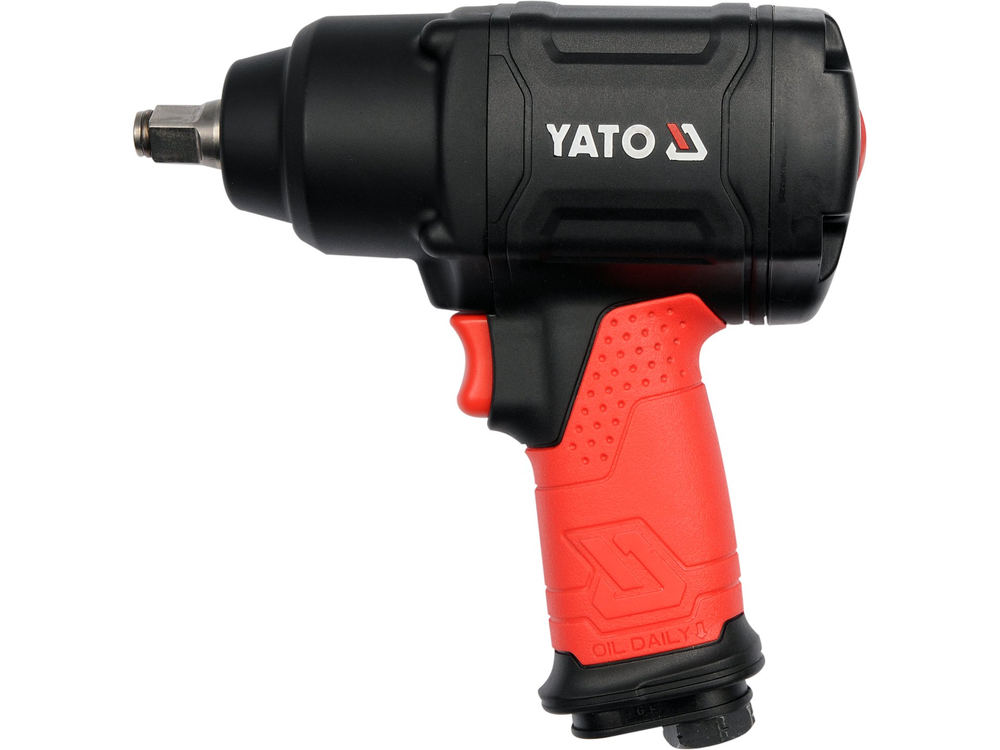

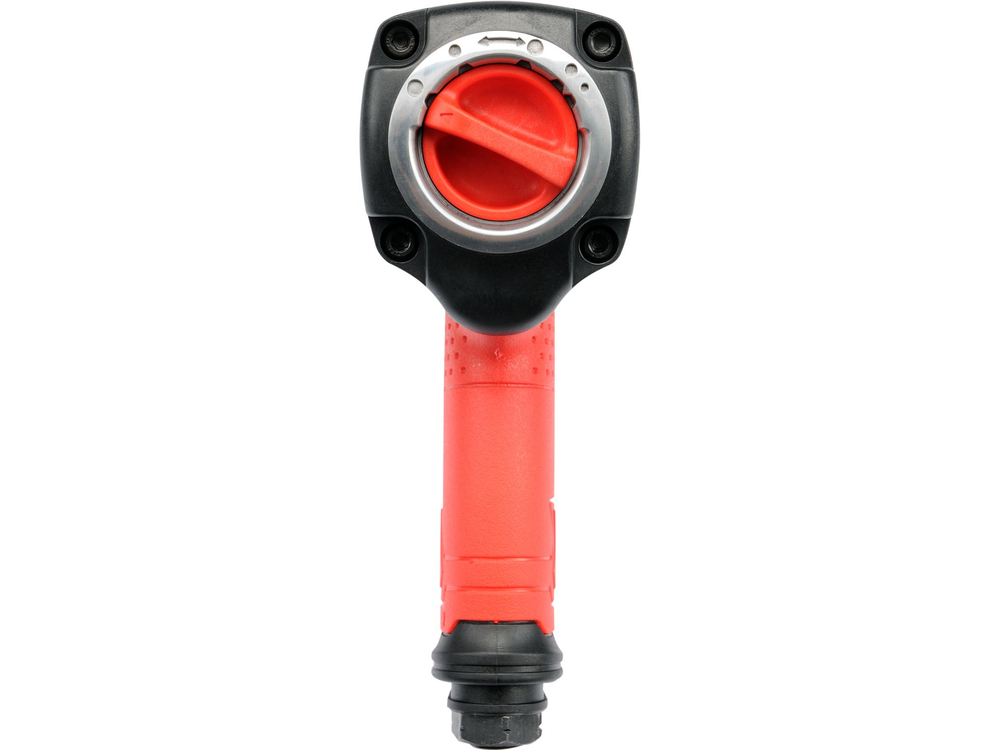

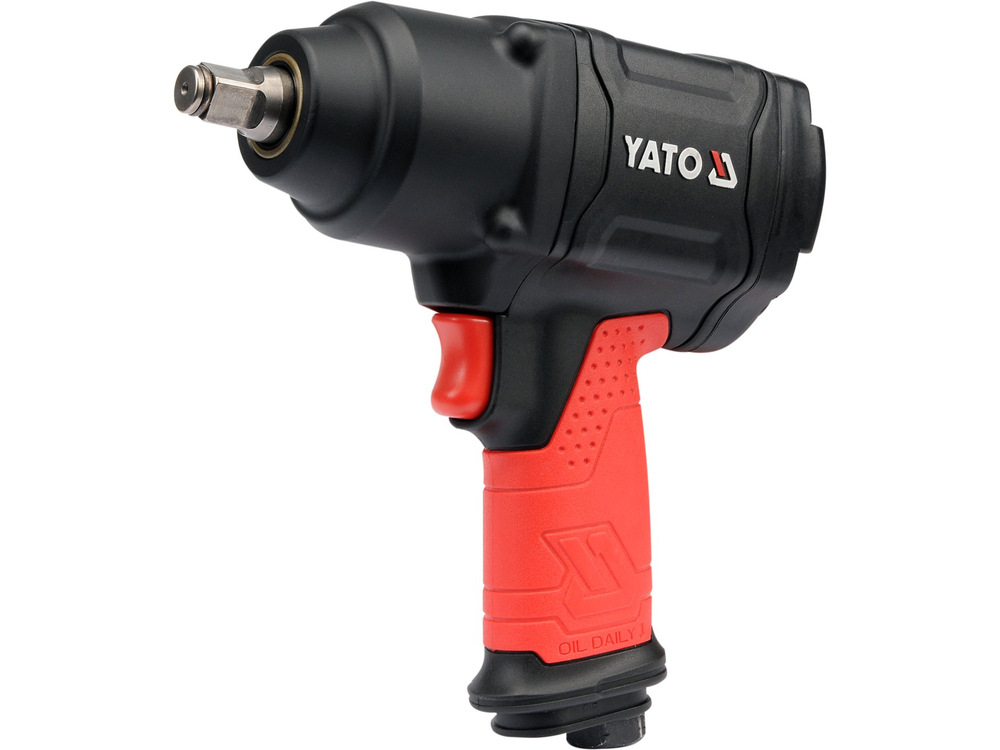

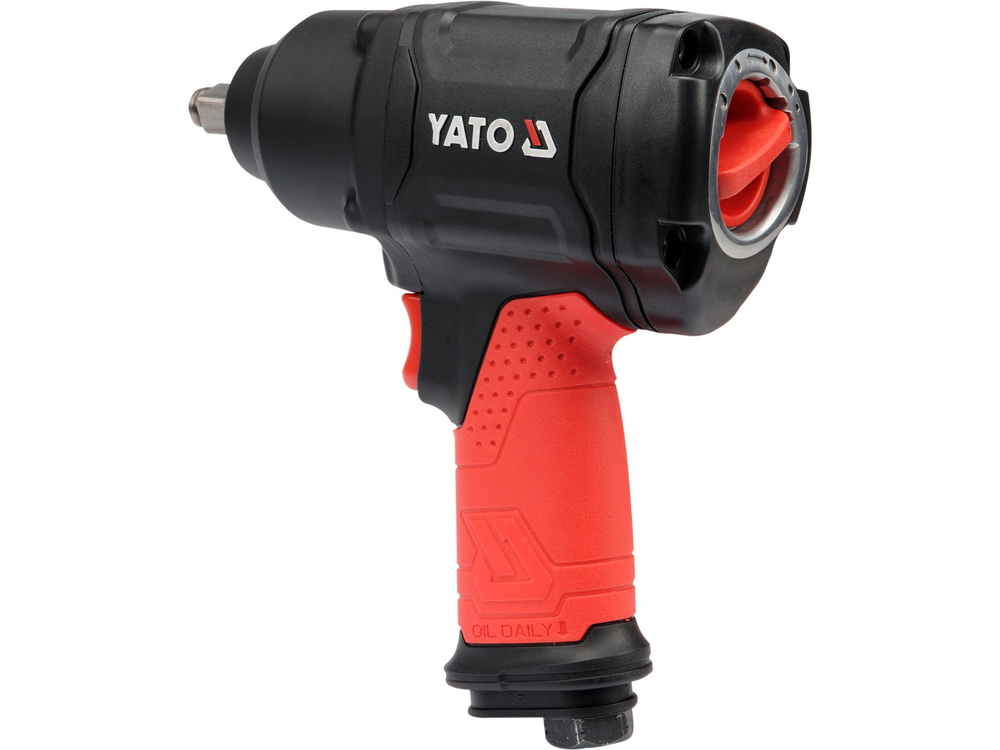

Pneumatic wrench 1/2" 1150 Nm by YATO.
- Made of composite casting and duralumin.
- The TWIN HAMMER percussion mechanism guarantees high efficiency and outstanding durability.
- Use in industry, mechanical service and auto repair shops.
- Maximum torque is 1150 Nm.
- Rotational values achieved on each setting:
- 1 - 400 Nm
- 2 - 610 Nm .
- 3 - 1150 Nm
