YT-09571
TWIN HAMMER IMPACT WRENCH
- Klucz pneumatyczny 3/4" 1630 Nm marki YATO.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Holder size
3/4" (19.0 mm)
Toolholder type
Operator
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
198 l/min
Rotations
5500 min⁻¹
Max. torque
1630 Nm
Quick coupler size
3/8" (9.5 mm)
Air connection diameter (PT)
3/8" (9.5 mm)
Air supply hose inside diameter
1/2" (12.7 mm)
Length
221 mm
Casing material
composite, duralumin

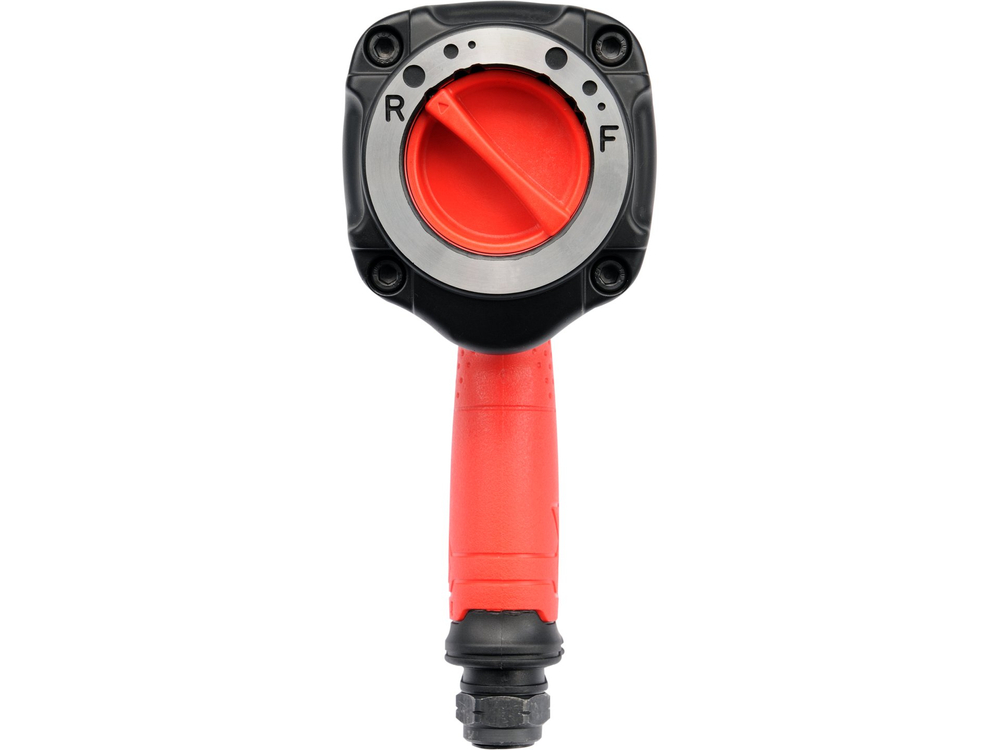

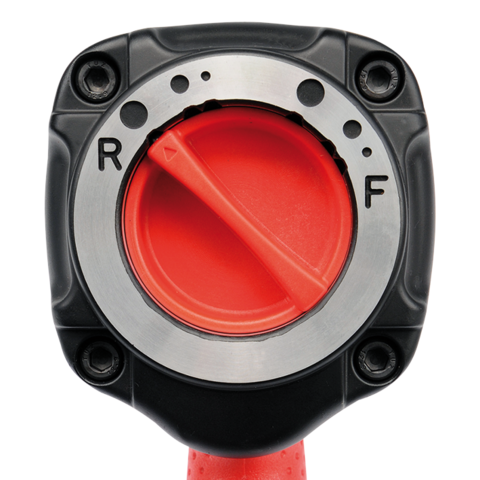

Rotation switch
yes
Acoustic pressure
100.6 ± 3.0 dB(A)
Acoustic power
111.6 ± 3.0 dB(A)
Vibrations
10.21 ± 1.5 m/s²
Weight
3.81 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09571
![](https://pim.toya.pl/piktogramy/CALE_inch-mm_inch-cm/image-thumb__59495__Sklep_pikto/3-4_inch_19_mm.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__59096__Sklep_pikto/TWIN_HAMMER_TYPE.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52595__Sklep_pikto/0%2C63_MPa.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52650__Sklep_pikto/198_l-min.png")
![](https://pim.toya.pl/piktogramy/Nm_nm/image-thumb__52753__Sklep_pikto/1630_Nm.png")
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__69209__Sklep_pikto/5500_min-1.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__66737__Sklep_pikto/COMPOSITE_BODY_ENG.png")
![](https://pim.toya.pl/piktogramy/PICTURE_PARAMETER/image-thumb__60119__Sklep_pikto/COUPLE_01_G_3-8.png")

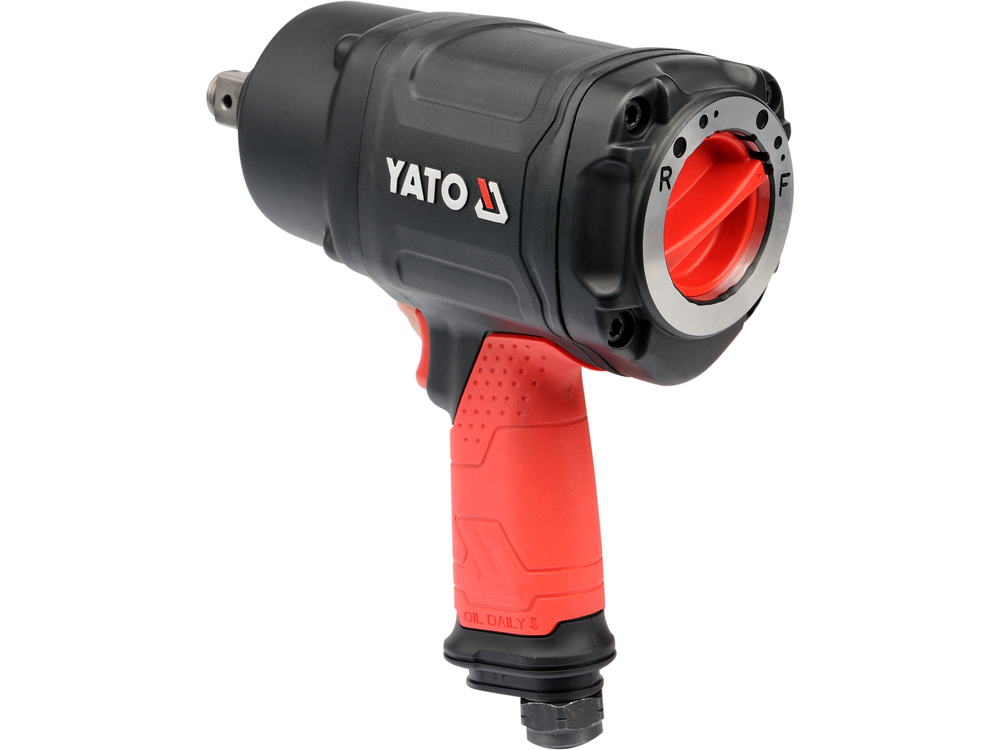

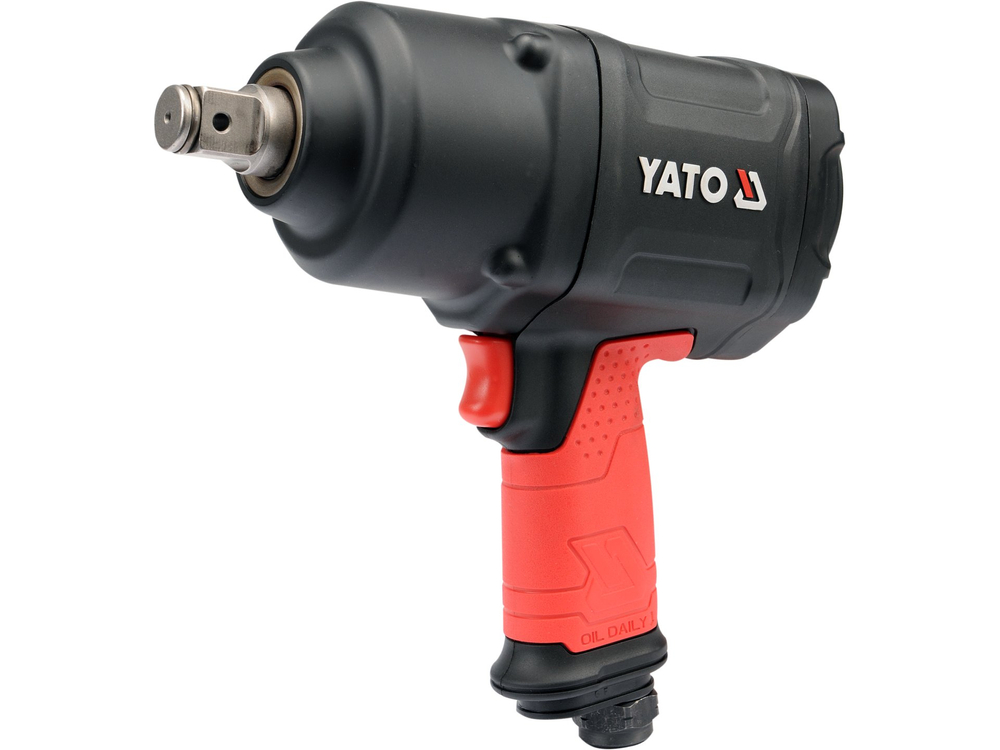

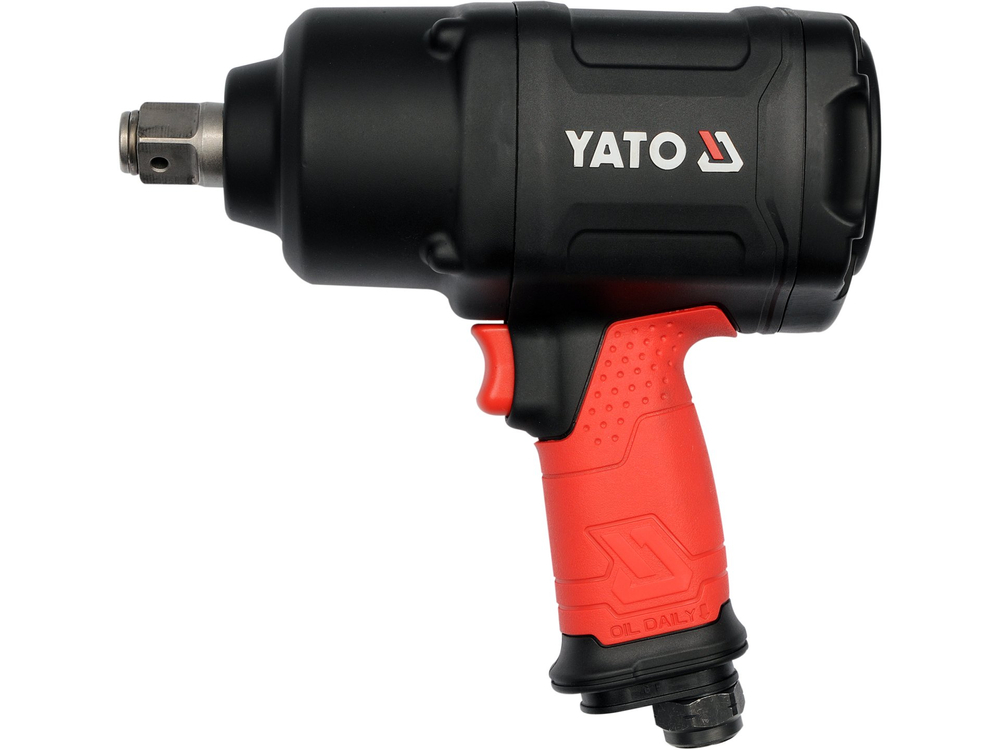

Pneumatic 3/4" 1630 Nm wrench by YATO.
- Made of composite casting and duralumin.

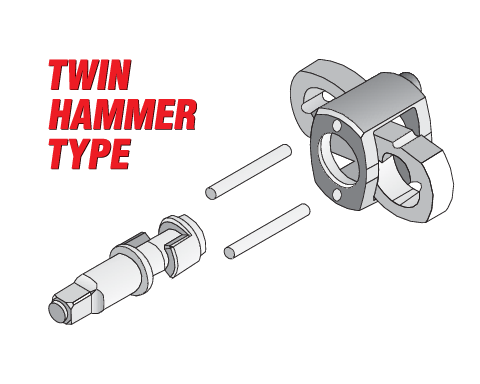

- The TWIN HAMMER percussion mechanism guarantees high efficiency and outstanding durability.
- Application in industry, mechanical services and auto repair shops.
- Robative values obtained on each
- 1. 814 Nm
- 2. 1085 Nm
- 3. 1630 Nm
