YT-0960

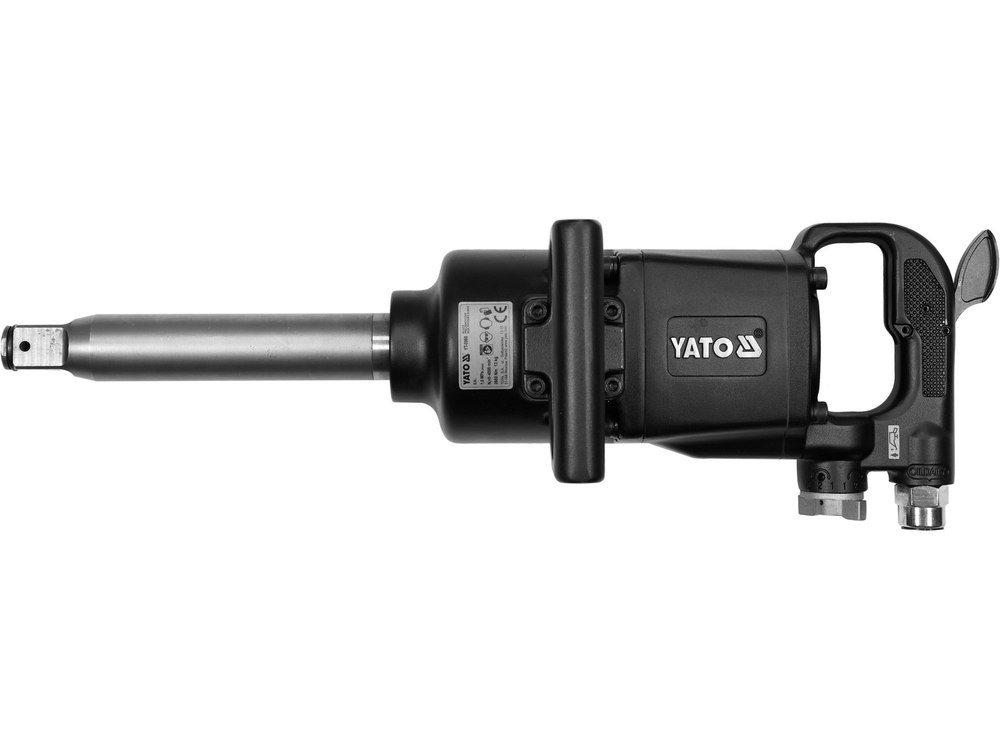

''PNEUMATIC WRENCH 1, 2600 NM''
- Klucz pneumatyczny 2600 Nm marki Yato.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
1" (25.0 mm)
Toolholder type
Driver
Stroke mechanism type
PINLESS HAMMER
Max. working pressure
1 MPa
Recommended working pressure
0.63 MPa
Required air flow
560 l/min
Rotations
4000 min⁻¹
Max. torque
2600 Nm
Quick coupler size
1/2" (12.7 mm)
Air connection diameter (PT)
1/2" (12.7 mm)
Air supply hose inside diameter
1/2" (12.7 mm)
Length
540 mm
Casing material
aluminum
Rotation switch
yes
Acoustic pressure
97.2 ± 2.0 dB(A)
Acoustic power
107.7 ± 2.8 dB(A)
Vibrations
23.58 ± 4.76 m/s²
Weight
13 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mobile and stationary car services, tire and truck services
Symbol
YT-0960
Pneumatic wrench 2600 Nm by Yato.
- Made of compositeómaterials and duralumin.

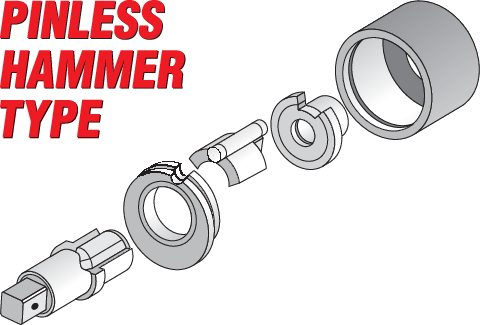

- It features a pinless hammer type impact mechanism, whichós ability to achieve high torque with low compressed air requirements and low vibration during operation.
- Application in industry, mechanical services and automotive workshops.
