81519

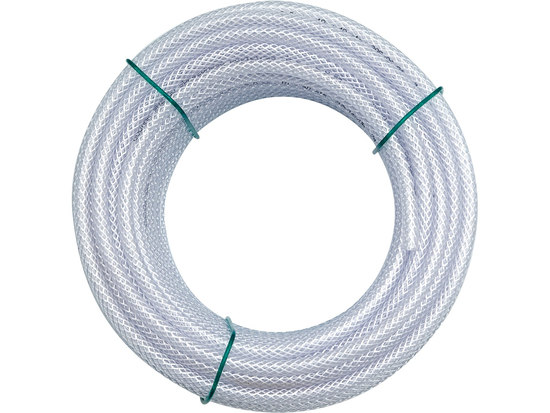

ARMOURED HOSE 10/40 ATM 50M 6 MM
- Wąż techniczny zbrojony 10 ATM o średnicy 6 mm i długości 50 m.
Brand
Entity responsible for this product in the EU
Godmar M.R.P Godzińscy Spółka JawnaMore
Address:
Elbląska 71Postal code: 82-316City: MilejewoCountry: PolskaE-mail: biuro@godmar.com.pl
Series
Internal diameter
6 mm
Length
50 m
Wall thickness
2.5 mm
Working max.
1 MPa
Bursting pressure
4 MPa
ATM
10/40
Material
PVC
Wytrzymałość na rozciąganie
yes
UV proof
yes
Moisture-resistance
yes
Temperature tolerance
yes
Chemical resistance
yes
Symbol
81519
Reinforced technical hose with an inside diameter of 6 mm with a length of 50 m for compressed air with a safety certificate.
- Manufactured in accordance with PN-EN ISO 5774.
- Tested for working and burst pressure strength, bending resistance, delamination strength and flexibility at -10 degrees Celcius.
- Maximum working pressure of 10 atmospheres, burst pressure of 40 atmospheres.
- Made of soft PVC with a hardness of 65 ShA, additionally reinforced with a textile braid.
- Constructed of an inner layer resistant to various chemicals, a polyamide reinforcing mesh and an outer layer resistant to weather conditions and UV radiation.
- Thanks to the use of PVC, the hoses are resistant to aging andhave very high flexibility at low temperatures.
