81520

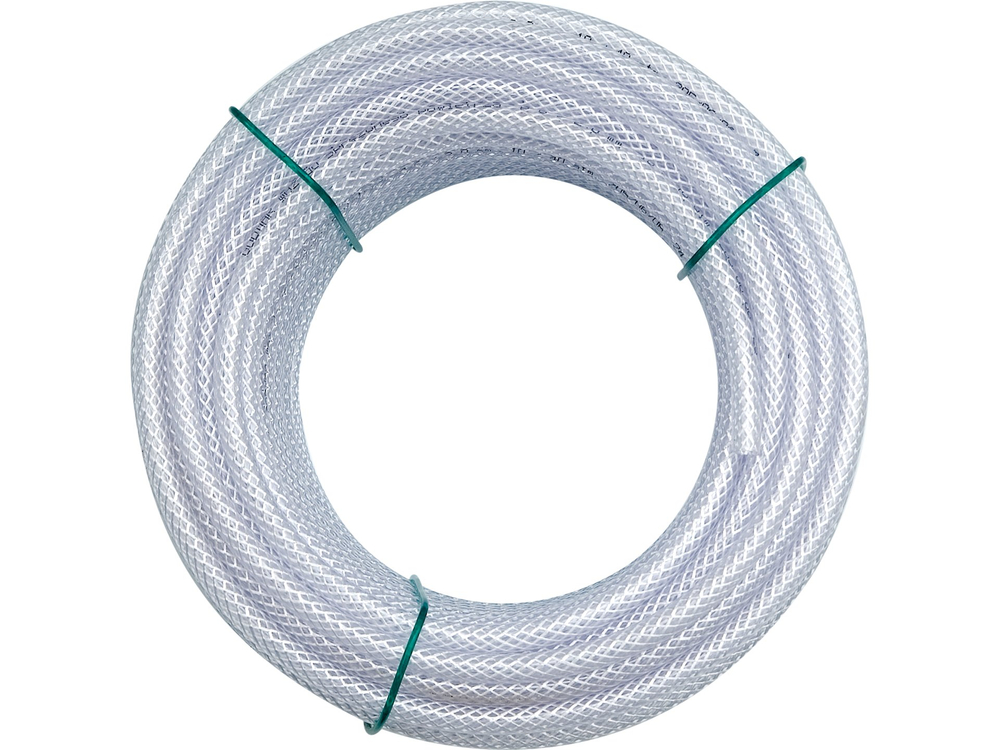

ARMOURED HOSE 10/40 ATM 50M 8 MM
- Wąż techniczny zbrojony 10 ATM o średnicy 8 mm i długości 50 m.
Brand
Symbol
81520
Producer code
5906083815201
Series
Inside diameter
8 mm
Length
50 m
Thickness of the wall
2.5 mm
Working max.
1 MPa
Tearing pressure
4 MPa
ATM
10/40
Material
PVC
Wytrzymałość na rozciąganie
tak
Resistance to UV radiation
Yes
Moisture resistance
Yes
Temperature resistance
Yes
Resistance to chemicals
Yes
Reinforced technical hose with an inner diameter of 8 mm with a length of 50 m for compressed air with a safety certificate.
- Manufactured in accordance with PN-EN ISO 5774.
- Tested for working and burst pressure strength, bending resistance, delamination strength and flexibility at -10 degrees Celcius.
- Maximum working pressure of 10 atmospheres, burst pressure of 40 atmospheres.
- Made of soft PVC with a hardness of 65 ShA, additionally reinforced with a textile braid.
- Constructed of an inner layer resistant to various chemicals, a polyamide reinforcing mesh and an outer layer resistant to weather conditions and UV radiation.
- Thanks to the use of PVC, the hoses are resistant to aging andhave very high flexibility at low temperatures.
