81524
ARMOURED HOSE 10/40 ATM 50M 16 MM
- Wąż techniczny zbrojony 10 ATM o średnicy 16 mm i długości 50 m.
Brand
Symbol
81524
Producer code
5906083815249
Series
Inside diameter
16 mm
Length
50 m
Thickness of the wall
3 mm
Working max.
1 MPa
Tearing pressure
4 MPa
ATM
10/40
Material
PVC
Wytrzymałość na rozciąganie
tak
Resistance to UV radiation
Yes
Moisture resistance
Yes
Temperature resistance
Yes
Resistance to chemicals
Yes

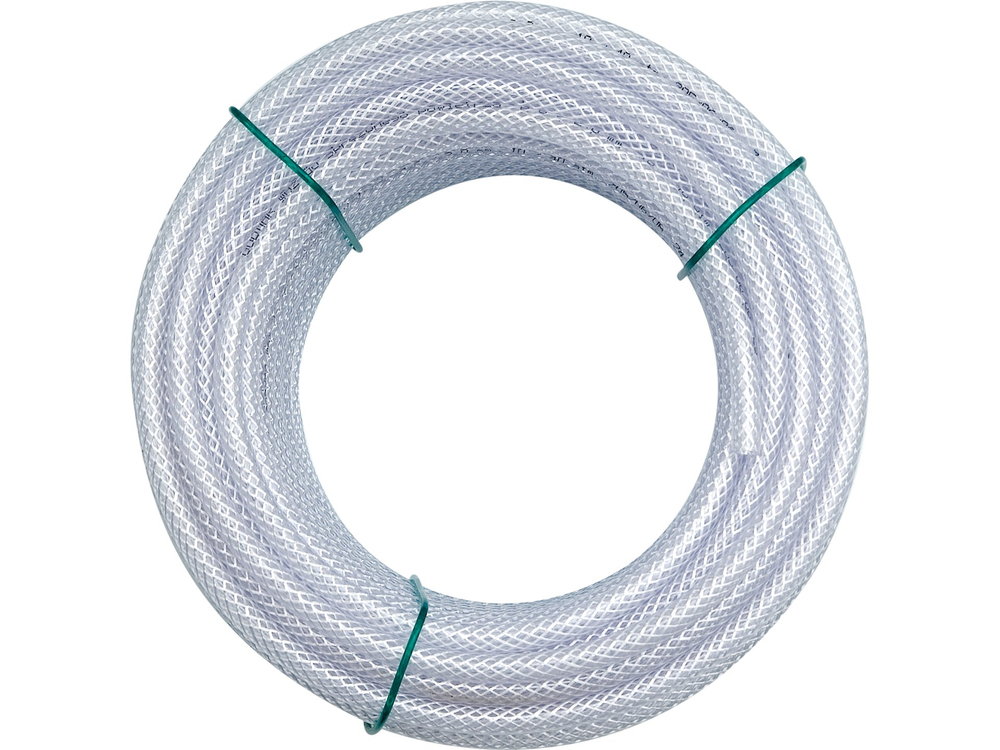

Reinforced technical hose with an inside diameter of 16 mm with a length of 50 m for compressed air with a safety certificate.
- Manufactured in accordance with PN-EN ISO 5774.
- Tested for working and burst pressure strength, bending resistance, delamination strength and flexibility at -10 degrees Celcius.
- Maximum working pressure of 10 atmospheres, burst pressure of 40 atmospheres.
- Made of soft PVC with a hardness of 65 ShA, additionally reinforced with a textile braid.
- Constructed of an inner layer resistant to various chemicals, a polyamide reinforcing mesh and an outer layer resistant to weather conditions and UV radiation.
- Thanks to the use of PVC, the hoses are resistant to aging andhave very high flexibility at low temperatures.
