YT-4714
CHISEL AND PUNCH SET 12 PCS, CRV
- Zestaw warsztatowych narzędzi do prac w metalu
Brand
Symbol
YT-4714
Producer code
5906083947148
Series
Diameter of the point
6, 8 mm
Średnica grotu
1.5, 3, 4, 5, 6, 8 mm
Diameter of the cone
2 mm
The length of the tip
35, 40, 45, 48 mm
Length
142, 152, 162, 152, 152, 152, 152, 152, 152, 140, 100, 115 mm
Cutter width
10, 12, 16 mm
Material
CrV
Surface finish
blackened
Vertex angle
90 ˚
Profile
hexagonal
Coverage
No
Number of pieces included
12
Contents of the set
Flat cutter x3 (10x142 mm, 12x152 mm, 16x172 mm), parallel boot x6 (Ø1.5x152 mm, Ø3x152 mm, Ø4x152 mm, Ø5x152 mm, Ø6x152 mm, Ø8x152 mm), conical (Ø2x140 mm), point x2 (Ø2x140 mm)

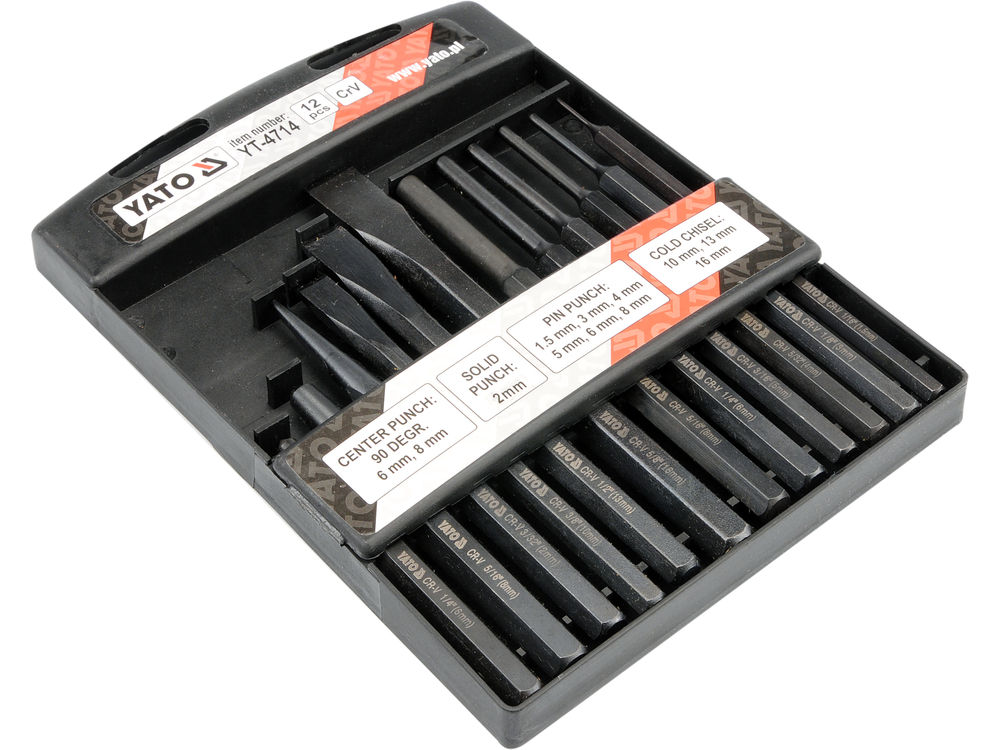

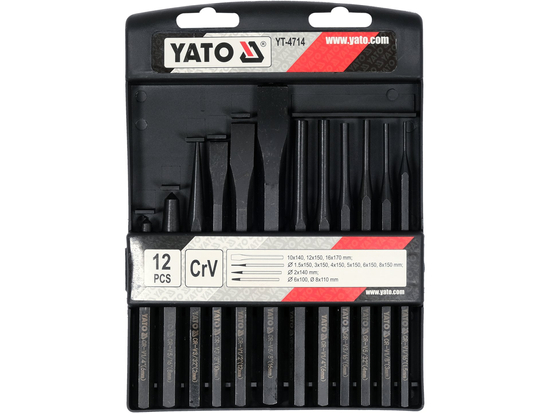

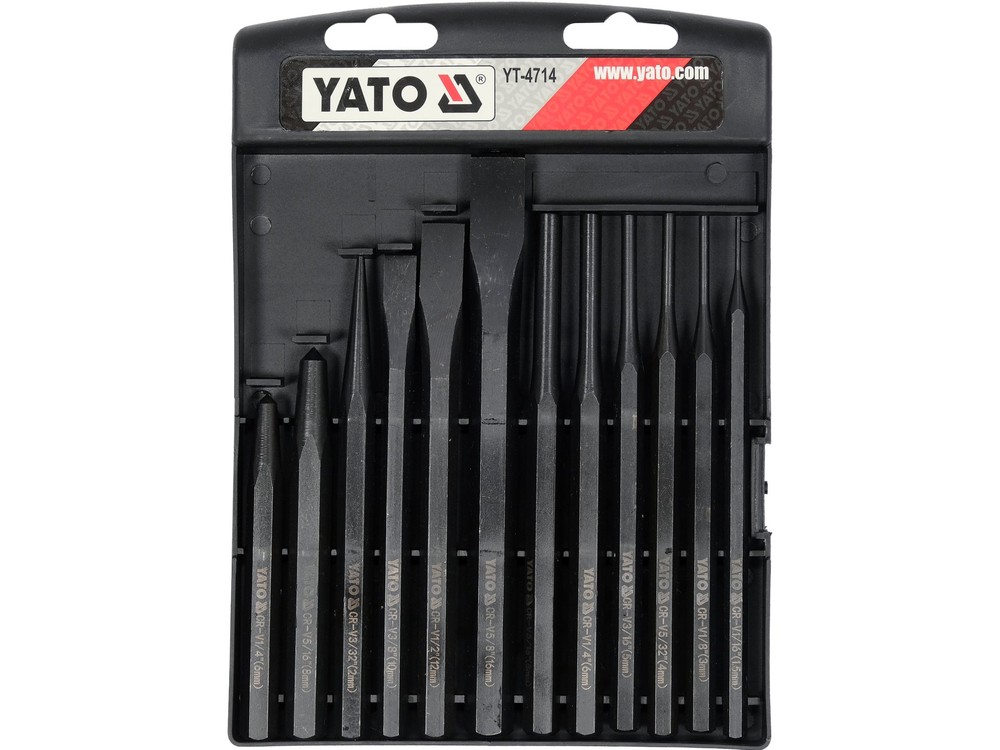

The set includes cylindrical drifters 1,5 , 3 , 4 , 5 , 6 , 8 mm , conical drifters 2 mm , chisels 10, 13, 16 mm, punches 6 mm and 8 mm . Lengths from 100 to 150 mm. Tools made of CrV 6150 hexagonal steel rod, blackened surface. Packed in a plastic container.
Application:
Set of workshop tools for work in metal. For cutting, punching and scoring.
Package contents:
- Punches: 6 mm and 8 mm
- Tapered punch: 2 mm
- Drift punches: 1.5 mm, 3 mm, 4 mm, 5 mm, 6 mm, 8 mm.
- Chisels 10 mm, 13 mm, 16 mm
