YT-2293
6IN1 MULTIFUNCTIONAL PLIERS 215MM
Brand
Symbol
YT-2293
Producer code
5906083922930
Series
Functions
Cutting cables, screw cutter, insulation welt, tightening the spark lines
Cross-section B m2
1.25-2.5
Cross-section B awg
8~12
Cross-section C mm2
1
Cross-section C AWG
8
Diameter of the screw
2.6, 3, 3.5, 4, 5 mm
Diameter of the spark lines
7-8 mm
Length
215 mm
Body material
carbon steel
Surface finish
black, oxidized
Blade material
steel 65Mn
Hardness
50-53 HRC
Material of the handle
PVC
Application
electric

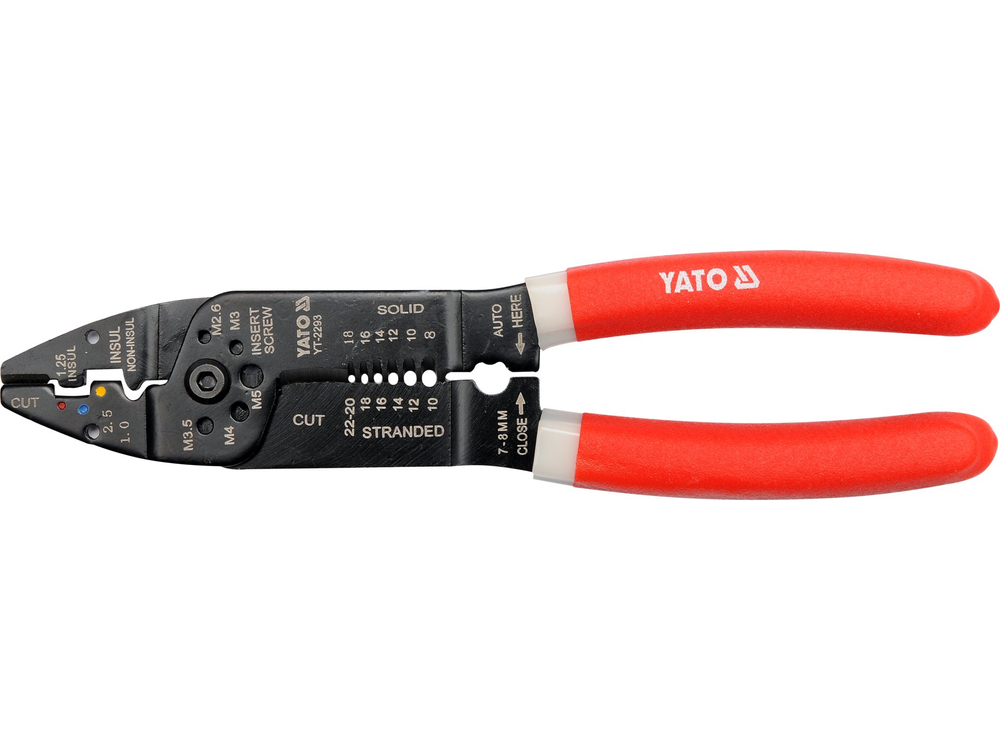

Pincers YT-2293 made of thick hardened steel with a blackened surface thatóra protects against corrosion. The handles are protected by underwateróy plastic caps.
- Possibility to crimp insulated connectorsós
- Possibility to crimp connectorsów crimped
- capability to strip insulation from round wiresów ranging from 0.75 mm2 to 2.6 mm2
- capable of crimping the endsóof car ignition wires
- capable of shortening screws from 2.6 mm to 5.0 mm
- possibility to cut wiresów
YT-2293 pliers application table:
Application table for pliers for crimping connectorsów:
