YT-4214

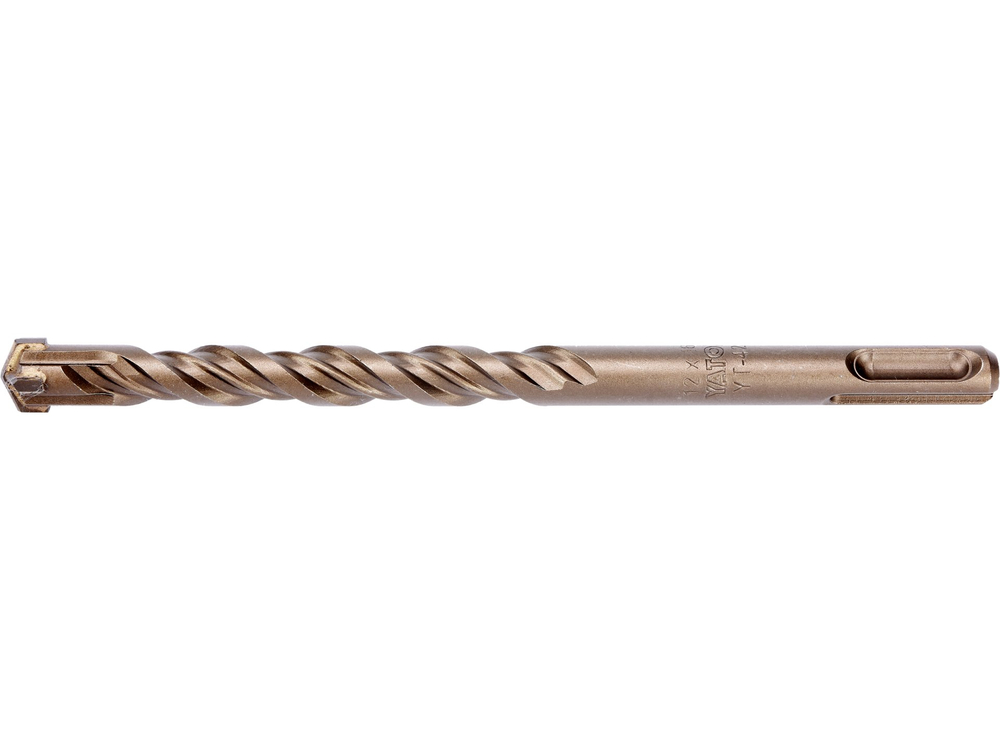

MASONRY DRILL BIT 12X160 MM SDS PLUS X-TIP
- Classic four-blade reinforced concrete drill bit with damage-resistant blade when in contact with the bar reinforcement system. Application for drilling in reinforced concrete, silicates, ceramic brick.
- The double helix prevents the drill bit from jamming
Brand
Symbol
YT-4214
Producer code
5906083942143
Series
Total length
160 mm
Diameter
12 mm
The length of the working part
95 mm
Type tool handle
SDS-Plus
Material
40Cr
Working part material
S4
Surface finish
grinded
Blade material
YG-11C
Blade type
X-tip
Spiral type
double
Number of pieces included
10
Application
concrete, cellular concrete, silicates
Classic four-blade drill bit for reinforced concrete with a blade resistant to damage upon contact with rebar. Use for drilling in reinforced concrete, silicate, ceramic brick.
The double helix prevents the drill bit from jamming when discharging a large amount of excavated material. The steel of the drill body is resistant to temperature expansion, so the drill does not lock in the chuck.
- material: 40Cr
- application: concrete|cellular concrete|silicate
- surface finish: ground
- working part material: S4
- type of tool holder: SDS-Plus
- diameter: 12 mm
- blade material: YG-11C
- total length: 160 mm
- length of working part: 95 mm
- number of pieces in set: 10
- blade type: X-tip
- spiral type: double
