YT-2313
MULTI-FUNCTION WIRE STRIPPER
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
cutting wires, insulation stripper
Cross section F mm2
0.2-6
Cross section F AWG
24~10
Cross section B mm2
1.5-6
Cross section B AWG
22~10
Cross section C mm2
0.5-6
Cross section C AWG
22~10
Length
205 mm
Body material
carbon steel
Surface finish
blackened, oxidized
Hardness
52-57 HRC
Materiał rękojeści
PP, TPR
Application
electric
Symbol
YT-2313

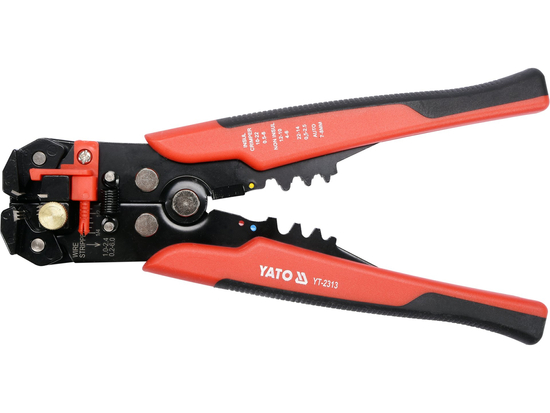

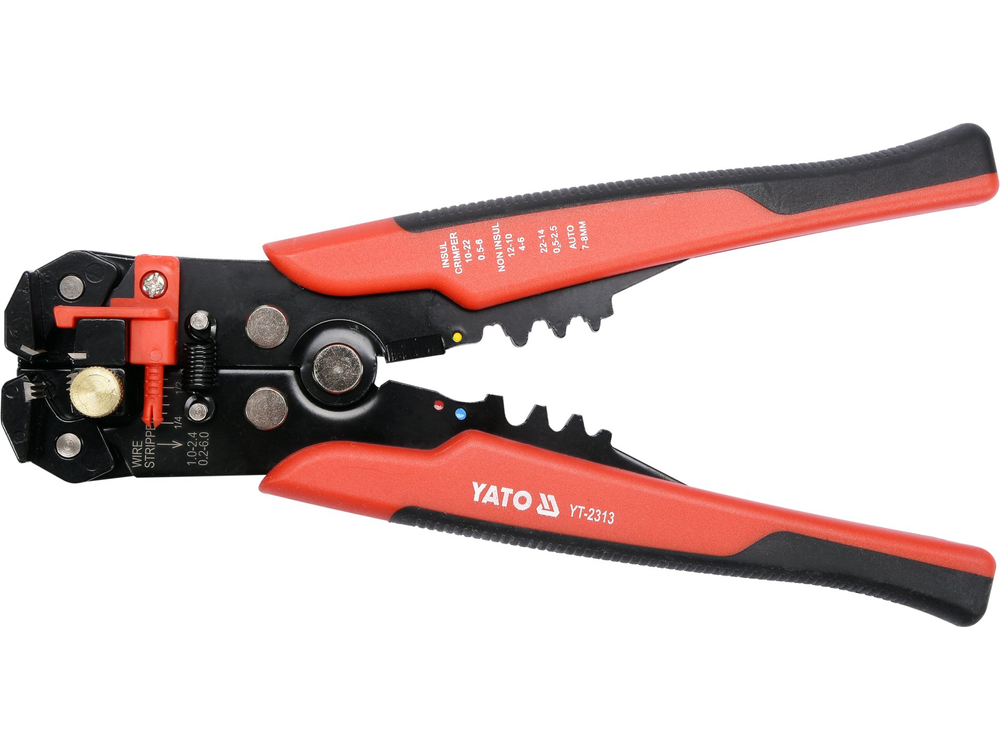

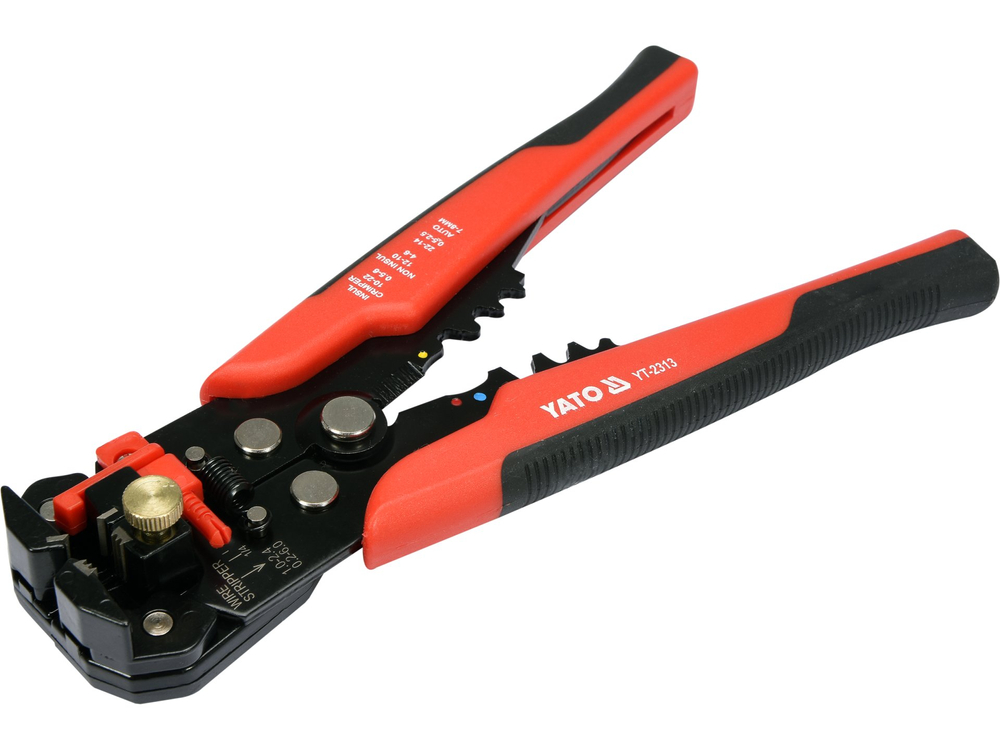

Multifunctional insulation pliers YT-2313 with a blackened surface to protect against corrosion. Handles protected by two-component plastic caps.
- mechanism for fast and automatic stripping of insulation from both flat and round conductors in the range of 0.2 mm2 to 6.0 mm2
- working jaw tips made of steel hardened to HRC 52-57 ./li>
- possibility to cut wires
- possibility to crimp crimp connectors
- possibility to crimp insulated connectors
Usage warnings:
Warning! Always use personal safety equipment at work.Ask a question
