YT-0980
''RATCHET AIR WRENCH 1/2, 68 NM''
- Grzechotka pneumatyczna zastępuje grzechotki o napędzie ręcznym, skracając czas poszczególnych czynności serwisowych i ułatwiając pracę w trudno dostępnych miejscach.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder type
Driver
Max. working pressure
0.7 MPa
Recommended working pressure
0.62 MPa
Rotations
160 min⁻¹
Max. torque
68 Nm
Required air flow
110 l/min
Air connection diameter (PT)
standard
Length
264 mm
Casing material
aluminum
Rotation switch
yes
Acoustic pressure
93.1 ± 1.9 dB(A)
Acoustic power
104.4 ± 2.7 dB(A)
Vibrations
19.98 ± 2.47 m/s²
Weight
1.2 kg
Set includes
pneumatic ratchet, hose connector
Symbol
YT-0980
![](https://pim.toya.pl/piktogramy/CALE_inch-mm_inch-cm/image-thumb__59485__Sklep_pikto/1-2_inch_12%2C7_mm.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52593__Sklep_pikto/0%2C62_MPa.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52621__Sklep_pikto/110_l-min.png")
![](https://pim.toya.pl/piktogramy/Nm_nm/image-thumb__52828__Sklep_pikto/68_Nm.png")
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__60216__Sklep_pikto/160_min-1.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png")
Reliability and comfort in any conditions

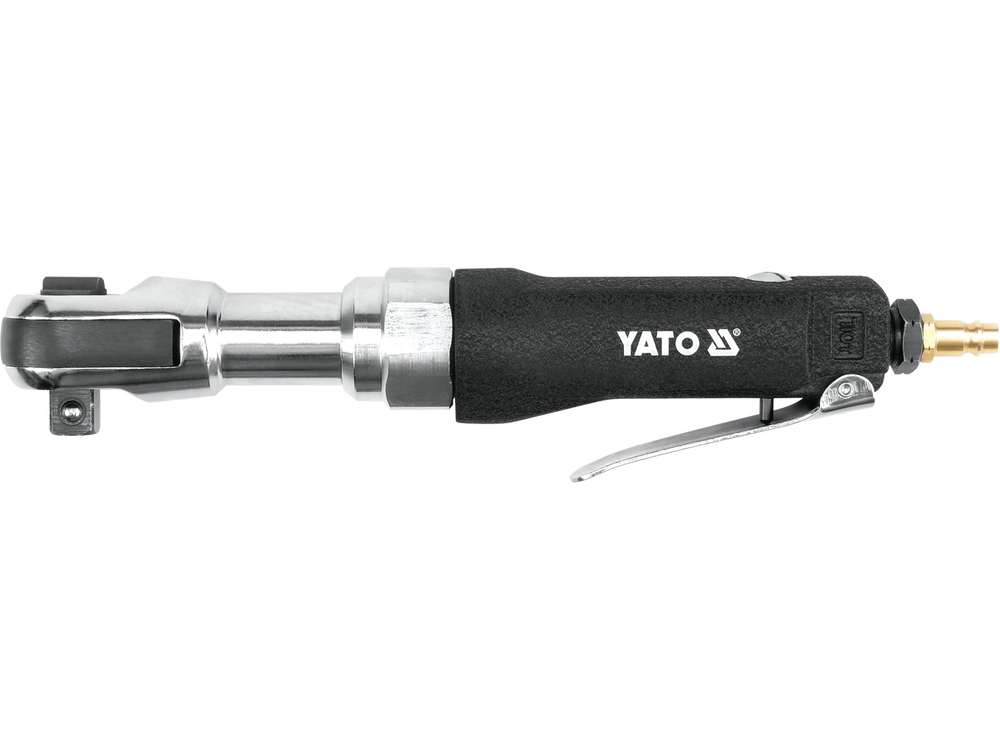

The pneumatic ratchet YT-0980 is the perfect solution for quick and efficient assembly and disassembly. Designed to facilitate work in any service conditions.
Maximum efficiency, minimum effort
- Uses compressed air for power, ensuring high performance
- Effectively replaces manual ratchets, speeding up work
- Facilitates access and work in tight and hard-to-reach places
- Guarantees reliable and long-lasting use
- Efficient rotating mechanism with the ability to work left and right
- Has a clamp to secure the socket from accidental disconnection
- High-quality construction for comfortable and trouble-free work
Pneumatic power
Quick service
Hard-to-reach places
Left/right rotation
Socket protection
Technical data and specification
- Maximum torque: 68 Nm
- Tool length: 264 mm
- Required air flow: 110 l/min
- Maximum operating pressure: 0.7 MPa
- Own weight: 1.2 kg
- Set includes: pneumatic ratchet, hose connector
