YT-4227

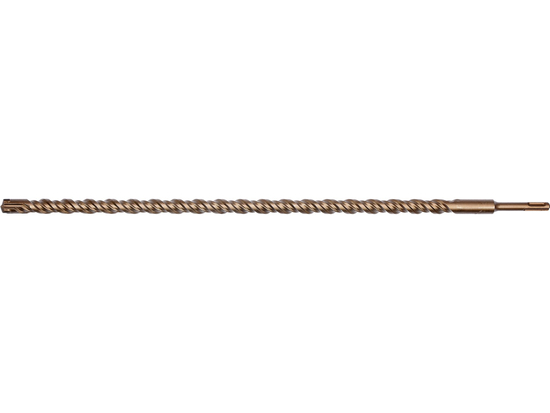

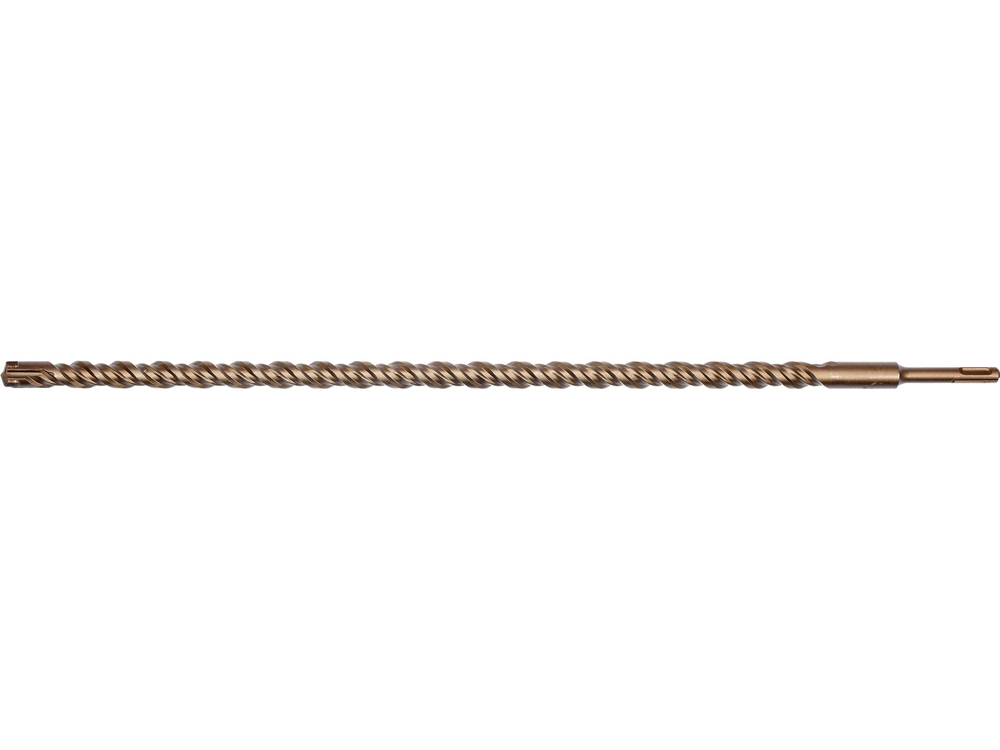

MASONRY DRILL BIT 22X460 MM SDS PLUS X-TIP
- Classic four-blade reinforced concrete drill bit with damage-resistant blade when in contact with the bar reinforcement system. Application for drilling in reinforced concrete, silicates, ceramic brick.
- The double helix prevents the drill bit from jamming
Brand
Symbol
YT-4227
Producer code
5906083942273
Series
Total length
460 mm
Diameter
22 mm
The length of the working part
360 mm
Type tool handle
SDS-Plus
Material
40Cr
Working part material
S4
Surface finish
grinded
Blade material
YG-11C
Blade type
X-tip
Spiral type
double
Number of pieces included
5
Application
concrete, cellular concrete, silicates
Classic four-blade drill bit for reinforced concrete with a blade resistant to damage upon contact with rebar. Use for drilling in reinforced concrete, silicate, ceramic brick.
The double helix prevents the drill from jamming when discharging a large amount of excavated material. The steel of the drill body is resistant to temperature expansion, so the drill does not lock in the chuck.
- material: 40Cr
- working part material: YG-11C
- blade type: cross-cut, X-tip
- spiral type: double
- surface finish: sand blasted
- tool holder type: sds plus
