MINI GRINDER 135W
- Wielofunkcyjny komplet narzędzi, który umożliwia m.in.: wiercenie, szlifowanie, polerowanie, frezowanie, grawerowanie.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
drilling, cutting, grinding, engraving, polishing, milling
Power
135 W
Rotations
10 000 (I) / 15 000 (II) / 20 000 (III) / 25 000 (IV) / 30 000 (V) / 33 000 (VI) / 35 000 (max) min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Max. accessories diameter
35 mm
Toolholder type
self-centering
Toolholder size
2.3, 3.2 mm
Dimensions
230x60x50 mm
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
72.0 ± 3.0 dB(A)
Acoustic power
83.0 ± 3.0 dB(A)
Vibrations
2.60 ± 1.5 m/s²
Weight
0.53 kg
Set includes
multi-function sander, flexible connection for working in hard-to-reach places, grindstone x10, disc with sandpaper x6, cutting grinding wheel x6,
Set includes cont’d
spindle for mounting cut-off wheels, grinding belt x5, grinding belt holder, engraving stylus x2, drill bit x2, polishing wheel x2, polishing tip,
Set includes cont’d 2
spindle for mounting polishing caps, whetstone, collet x2, spanner for retaining nut
Symbol
79314
Multifunction grinder 135w
Multifunctional set of tools, which allows, among other things: drilling, grinding, polishing, milling, engraving. The multi-sander is equipped with a flexible connection, especially useful for working in hard-to-reach places.
The multi-sander is equipped with a flexible connection, especially useful for working in hard-to-reach places
The locking button allows you to quickly change bits. A specially reinforced ring clamp guarantees secure attachment of the bits.
Rotation control
Rotation control ensures that the working speed is matched to the type of materials to be processed.

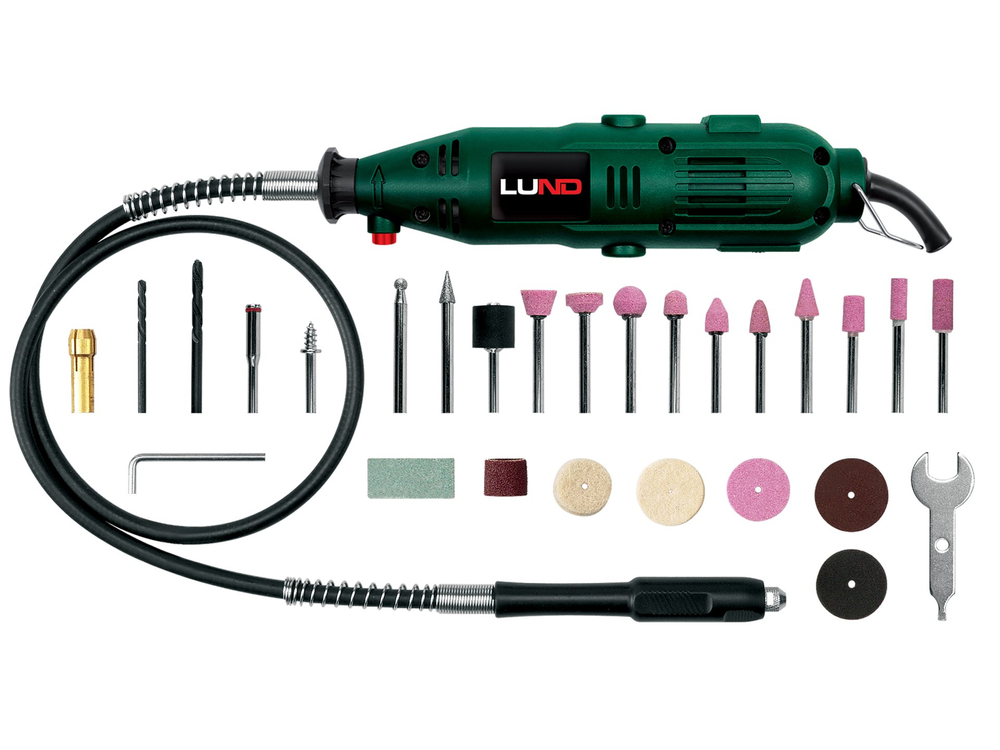

Package contents:
- Multifunctional grinder
- flexible connection for working in hard-to-reach places
- grinding stones - 10pcs.
- sanding paper discs - 6pcs
- cutting wheels - 6pcs.
- spindle for mounting cut-off wheels - 1pc,
- grinding belts - 5pc,
- grinding belt holder - 1pc,
- engraving riffle - 2pc.
- drills - 2pcs.
- polishing discs - 2pcs.
- polishing tip - 1pc.
- spindle for attaching polishing attachments - 1pc.
- posts - 1pc.
- clamp sleeve - 2pcs.
- mounting nut wrench - 1pc.
- operating instructions
- warranty card
- case
