YT-0990
AIR HAMMER
Brand
Symbol
YT-0990
Producer code
5906083909900
Series
Max. working pressure
0.7 MPa
Air flow required
113 l/min
Stroke frequency
3200 min⁻¹
Tool handle size
10 mm
Air connection diameter (PT)
standard
The inner diameter of the air supply hose
3/8 (9.5 mm)"
Housing material
aluminium
Acoustic pressure
96.3 ± 1.3 dB(A)
Acoustic power
107.7 ± 2.5 dB(A)
Vibrations
2.62 ± 9.1 m/s²
Weight
1.5 kg

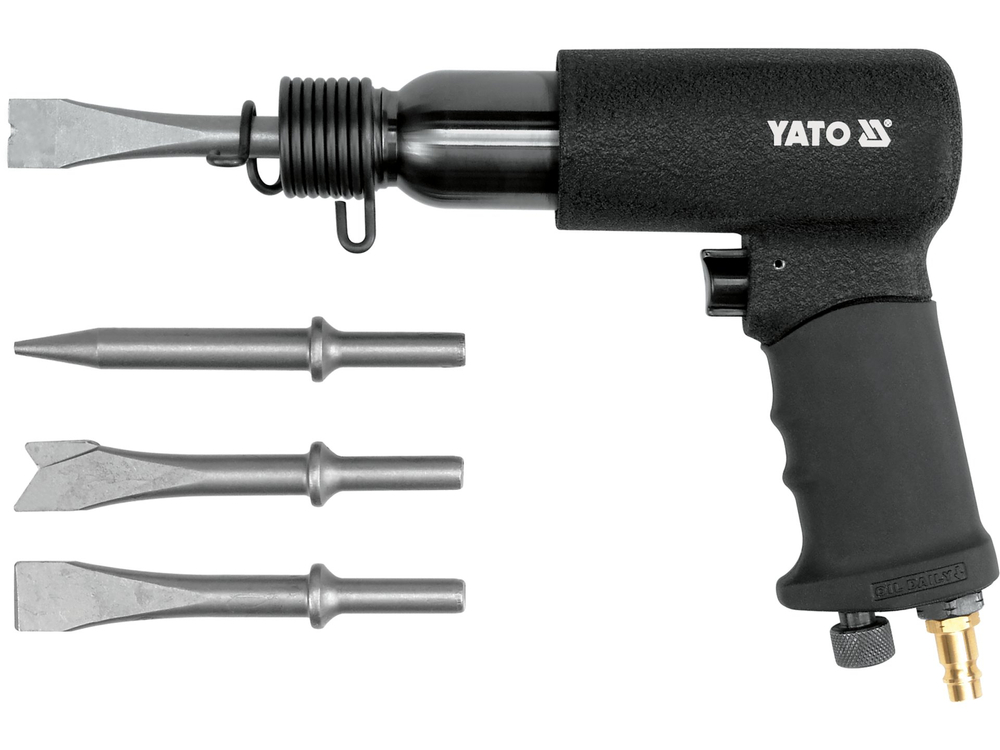

Contents of the set
pneumatic hammer, snake connector, spring, chisels and pierces x4
A pneumatic hammer is a tool powered by a stream of compressed air. With the help of chisels, chisels and punches attached to the handle, it allows cutting, chiseling and punching metal.
The hammer is equipped with a connector that allows it to be connected to the pneumatic system, additional chisels and punches, and a spring that allows correct and safe operation of the tool.
- Weight [kg] - 1.5
- Diameter of air connection (PT) [” / mm] - 6.3 / 1/4
- Diameter of air supply hose (internal) [” / mm] - 10 / 3/8
- Stroke frequency [min-1] - 3200
- .Toolholder diameter [mm]- 10
- Maximum working pressure [MPa] - 0.70
- Recommended operating pressure [MPa]- 0.62
- .Required air flow (at 6.2 bar) [l/min] - 560
- Sound pressure (ISO 15744) [dB(A)] - 96.9 ± 1.2
- Sound power (ISO 15744) [dB(A)] - 106.5 ± 2.0
- Vibration (ISO 28927-9) [m/s2 ] - 73.66 ± 7.79
