73400
LIQUID GAS BLOW LAMP
- gazowa lampa lutownicza na naboje propan-butan 190g
Brand
Symbol
73400
Producer code
5906083734007
Series
Power
1.7 kW
Flame temperature
1200 ˚C
Tank volume
190 g
Power gas type
Butane from the outer cylinder
Type of gas container
under direct pressure, type EN417
Gas consumption
123 g/h
Housing material
nylon, glass fiber
Ignition piezo
No
Flame power regulation
Yes
Mass with an empty tank
0.4 kg
Application
soldering, welding, heating, removing varnish, defrosting, healing, shaping or bending pipes, grill lighting, gastronomy

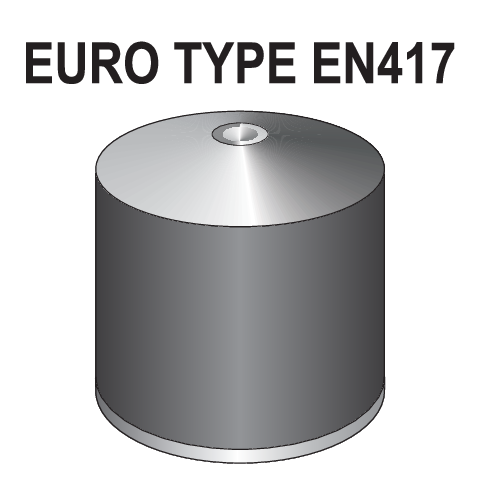

Gas soldering lamp 73400 is powered by propane-butane gas in 190g cartridges (EN417-type 200 - widely available on the market).
- Max operating temperature 1200°C
- Power 1.7kW
- Average gas consumption 123g/h
Purpose:
Soldering lamp designed for:
- soldering
- welding
- heating
- removing varnish
- defrosting
- exceeding
- shaping or bending pipes, plates
and also for firing up barbecue and in catering.
Tank made of composite material resistant to high temperatures. With adjustment of the size of the flame.
Installation of gas tank
- Close the gas valve, to do this, turn the regulator knob as far as it will go in the direction marked "-". Make sure that the needle and the gasket around it are not damaged or worn.
- Tighten the retaining nut. Slide the gas container into the lamp basket and press until the container's diaphragm is punctured.
- After the container's diaphragm is punctured, gas will flow out of the container; from this point on, do not disassemble the container until it is completely empty.
- Following this, secure the container from slipping out of the basket by tightening the retaining nut.
