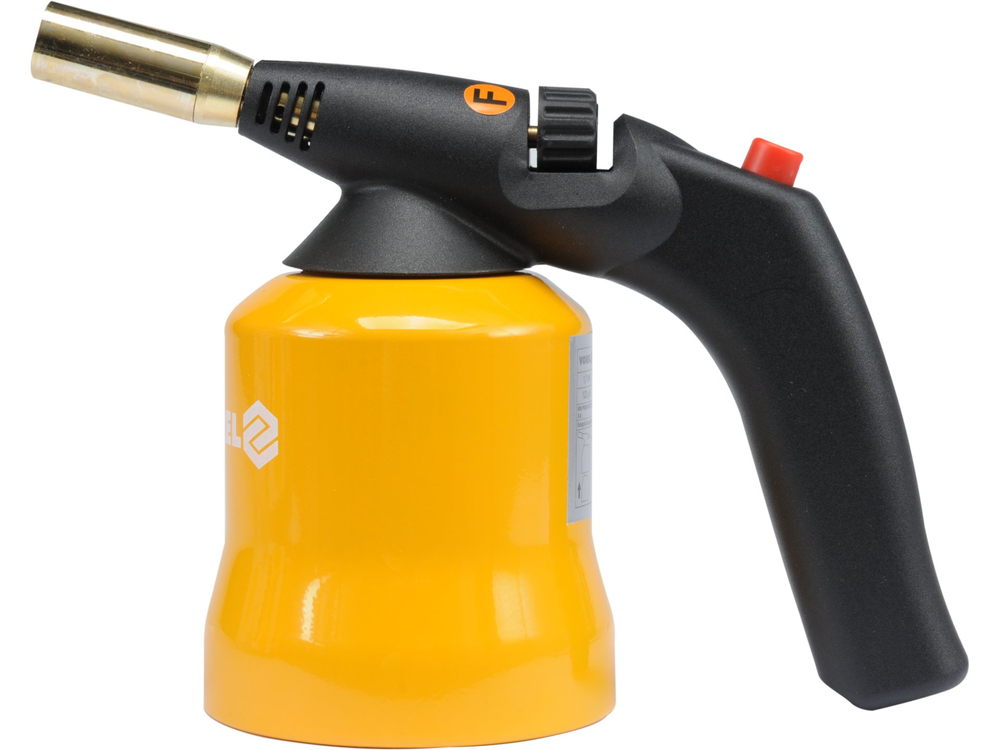

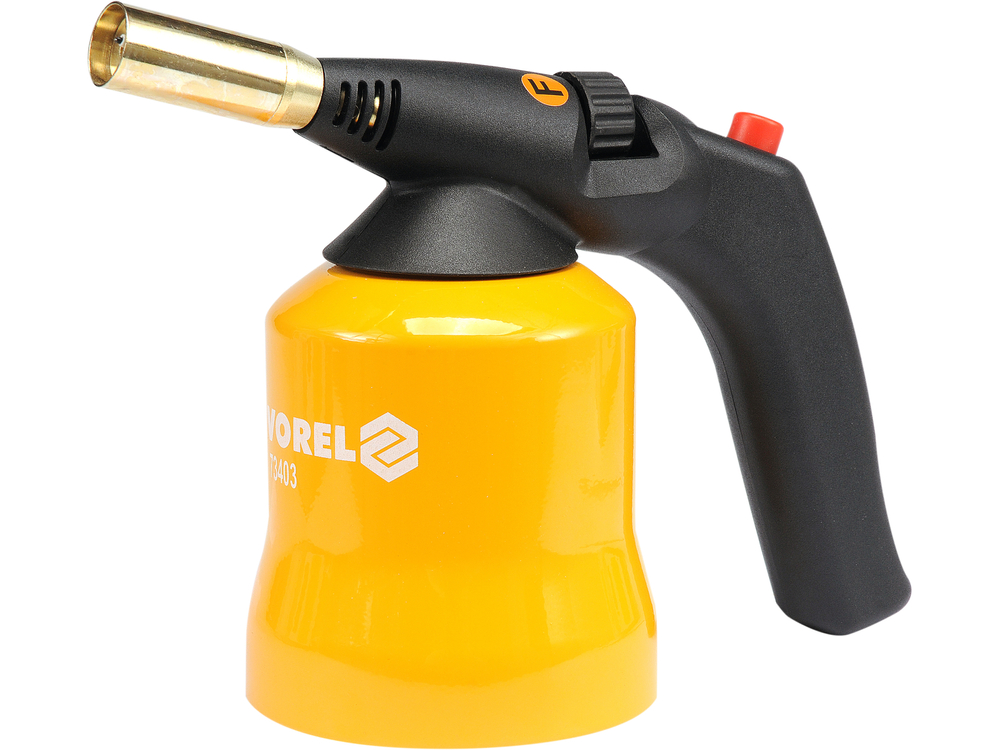

Gas soldering lamp with piezo ignition.

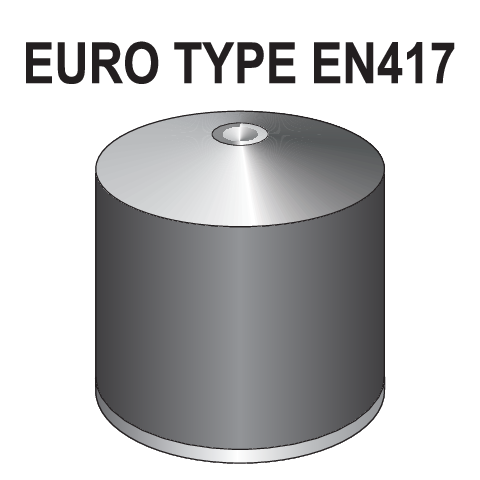

• It is powered by gas propane-butane in 190g cartridges (EN417-type 200 - widely available on the market).
• Max operating temperature 1200°C.
• Power 1.7kW.
• Average gas consumption 123g/h.

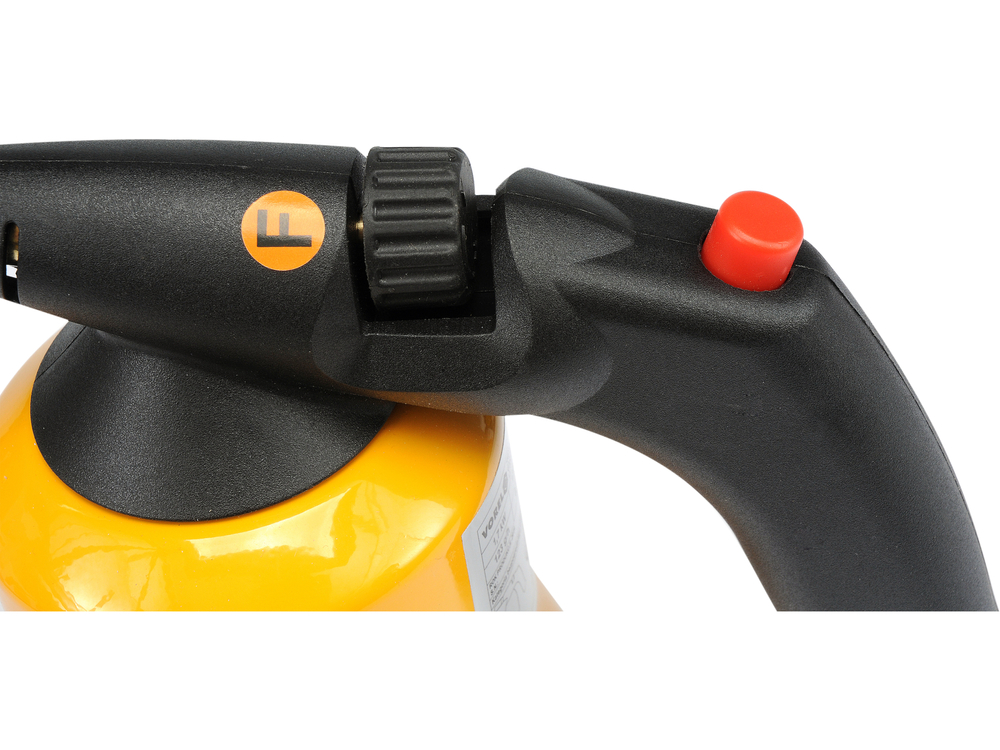

• Ignition piezo.
• Metal tank.
• Controlled flame size

Purpose:

Soldering lamp intended for:

• soldering
• welding
• heating
• de-soldering
• removing paint
• defrosting
• exceeding
• shaping or bending pipes
• plating

and also for firing up barbecues and in catering.

Tank made of composite material resistant to high temperatures. With adjustment of the size of the flame.

Installation of gas container

1. Close the gas valve, to do this, turn the regulator knob as far as it will go in the direction marked "-". Make sure that the needle and the gasket around it are not damaged or worn out.

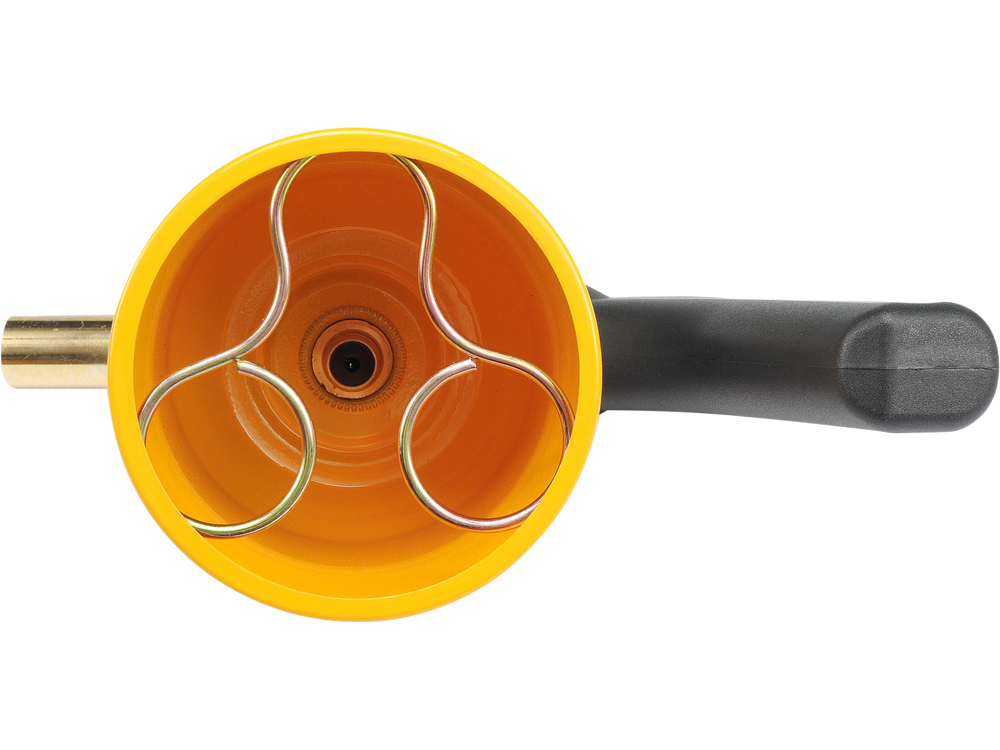

2. Remove the wire strut. Slide the gas canister into the lamp basket and press until the canister diaphragm is punctured.
3. After the canister diaphragm is punctured, gas will flow out of the canister; from this point on, do not disassemble the canister until it is completely empty.
4. Then secure the container from slipping out , by placing a wire strut in place.

Usage warnings:
