73410
3IN1 SLODERING IRON / TORCH / HOT BLOWER SET
- Lutownica gazowa 3 w 1
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
25~80 W
Gas type
butane lighter gas, propane-butane lighter gas
Flame temperature
1300 ˚C
Blast temperature
600 ˚C
Max. temperature of soldering tip
450 ˚C
Gas usage
6.6 g/h
Working time
60 min
Tank capacity
15 ml
Weight with empty tank
60 g
Application
tin soldering, pyrography - burning in the wood, shrinking of heat-shrinkable materials, Cu pipe brazing, unscrewing stuck screws, defrosting, bending and warm forming,
Application contd
heat welding and gluing
Symbol
73410

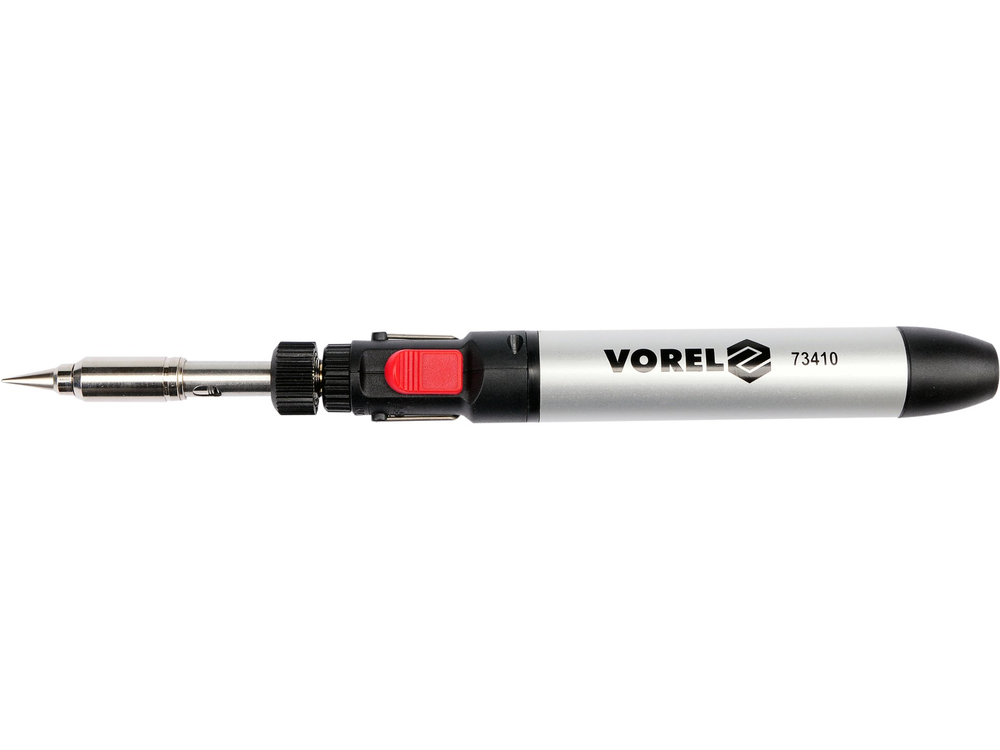

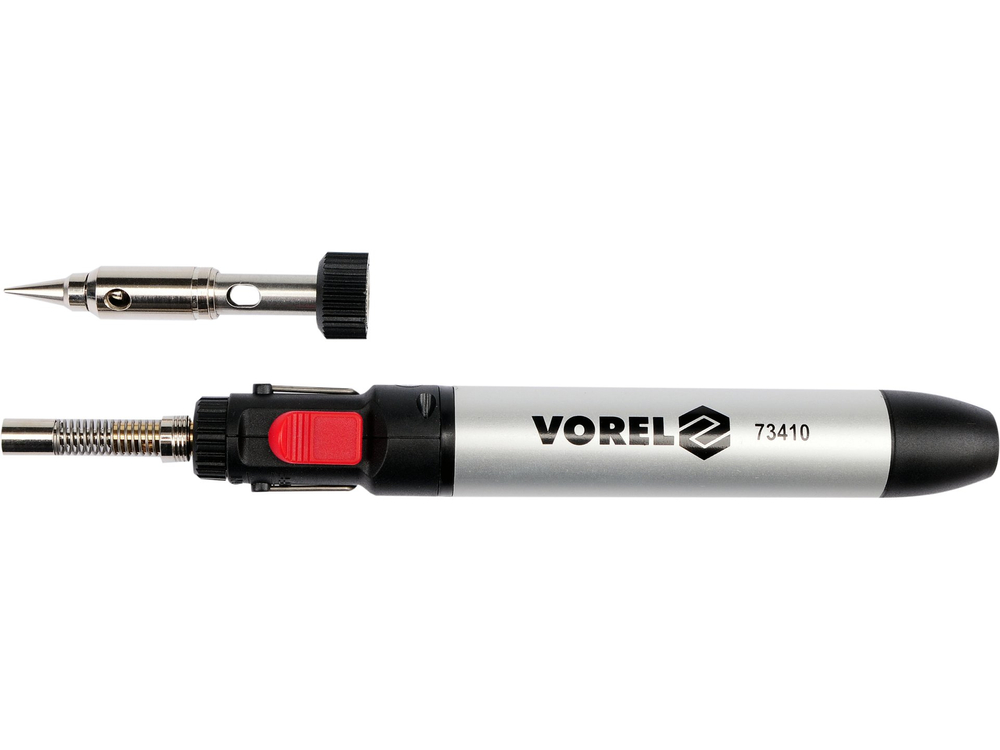

3-in-1 gas soldering iron VOREL 73410 powered by lighter gas (butane).

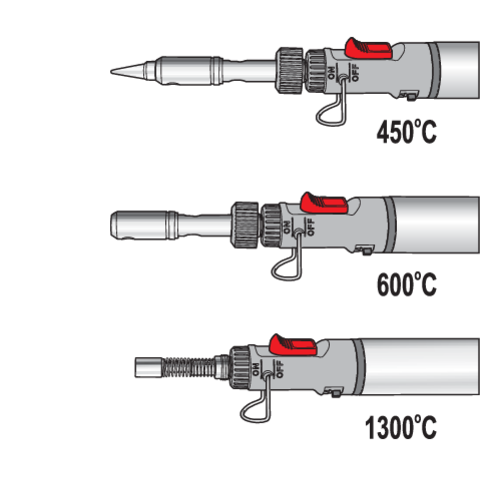

Can be used as:
- soldering iron with a temp of 450°C
- burner with a temp of 1300°C
- burner with a temp of 600°C
It features infinitely adjustable flame size, a gas cut-off button, and a fold-out stand.
Purpose:
- for soldering
- for melting
- for high temperature cutting .
Tank refill:
- Close the gas valve, to do this, turn the regulator knob all the way in the direction marked with the number "1" and make sure that the switch is in the position marked "OFF".
- Use good quality gas. The gas container should be equipped with an adapter suitable for the type of valve.
- Direct the burner with the valve upward. Apply the outlet of the gas container to the valve. Press the cylinder against the valve.
- Fill until the first signs of overfilling, gas will begin to come out from between the connection of the burner and the gas container.
- Pause the burner for a few minutes to stabilize the gas pressure in the container.
Usage warnings:
Use only in well-ventilated rooms.Please read the instructions before using this device.
Wear safety glasses when using the set.
Connect or change containers in a flameless or ignitionless atmosphere, away from unauthorized persons.
