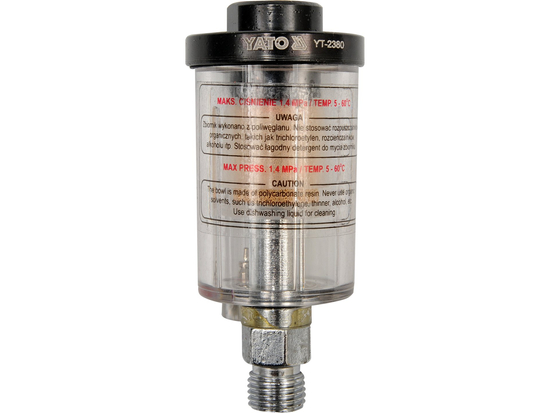

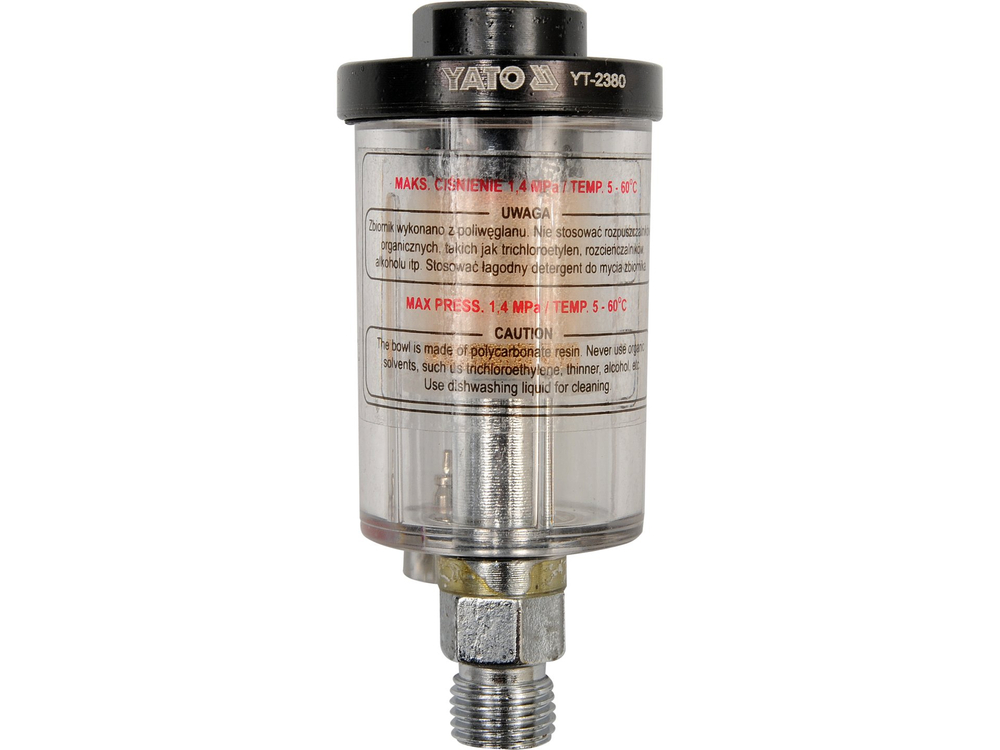

YT-2380

Name: ''MINI FILTER 1/4''
Brand: Yato
Price: 14.75 PLN
Availability: InStock

''MINI FILTER 1/4''

+ Add to compare Add to shopping list

Brand

Yato

Entity responsible for this product in the EU

TOYA S.A.More

Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl

Series

GRF

Max. air pressure

1.4 MPa

Thread size

G1/4

Tank capacity

8 cm³

Tank material

P.C

Max. working temperature

60 ˚C

Symbol

YT-2380

Specifications MEMASAMAL DATA WORKER: 1.4 MPa & nbsp; Thread diameter Air connection: 1/4 & rdquo; & nbsp; Maximum operating temperature: 60 degrees Celsius & nbsp; Tank material: polycarbonate & nbsp; tank capacity: 8 cm3 in d & oacute; Ł. Make sure the connection is tight. The filter should be placed in the pneumatic system as close as possible to the unit to which the filtered air is to be supplied to which. Avoid exposing sunlight, high temperatures and chemicals & oacute; w. The water tank should be placed below the water drain valve so that the water can flow into it. REGULATION Water dropping in the case of a lack of pressure, water will flow out automatically. In the event that the device is under pressure, open the trigger on the bottom of the tank to drop water. If the water level exceeds the maximum permissible range, open the trigger and allow water to flow out. This will allow you to maintain optimal moisturizing the flowing air. Concrete to turn off the air supply, air accumulated under pressure in the pneumatic system should be released into the atmosphere. Tank to circle the clockwise. Free the filter with clean, compressed air. Clean the interior of the tank with a soft, dry cloth. Do not use any solvent & oacute; in and other substances that could destroy polycarbonate. Before screwing the fastening ring, the tank should be sure that the seal is in the right place and is not contaminated.

Usage warnings:

The tank is made of polycarbonate.
Do not use organic solvents such as trichlorethylene, thinners, alcohol, etc.
Use a mild detergent to clean the tank.

To download

User manual YT-2380
