YT-0751

TORQUE WRENCH 1/4, 2-10 NM''

+ Add to compare Add to shopping list

Profesjonalny klucz dynamometryczny marki YATO. Jest precyzyjnym narzędziem stosowanym do uzyskiwania określonego momentu obrotowego. Służy do skręcania części złącznych gwintowanych tak, aby moment obrotowy połączenia był znany i odpowiedni do rodzaju ma

Size

uniwersalny

319,80 zł

incl. VAT / pcs.

Call and order: 71 32 46 330

Buy now, pay in 30 days

14 days for easy returns

Buy now, pay in 30 days

Buy on installment

Official manufacturer's store

Safe shopping

Brand

Yato

Symbol

YT-0751

Producer code

5906083907517

Series

GRF

Tool handle size

1/4 (6.3 mm)"

Torque

2-10 Nm

Length

268-278 mm

Head material

CrV 6140

Material of the handle

PVC

Rotation direction switch

Yes

Tolerance

± 4%

Calibration certificate

Yes

Application

precise tightening of threaded connections

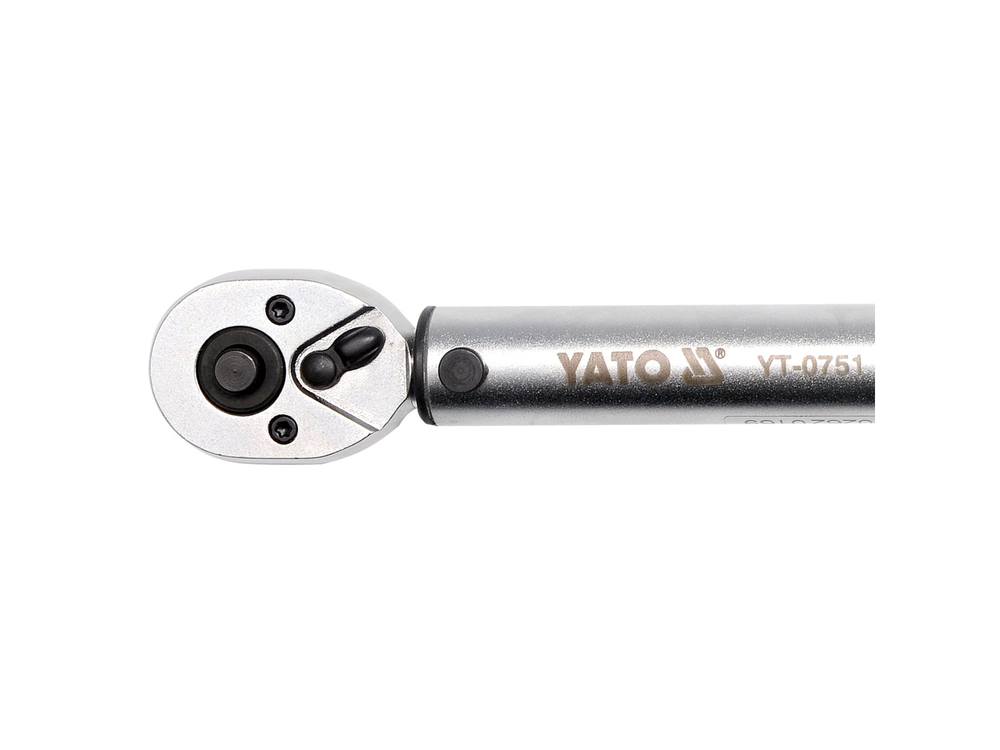

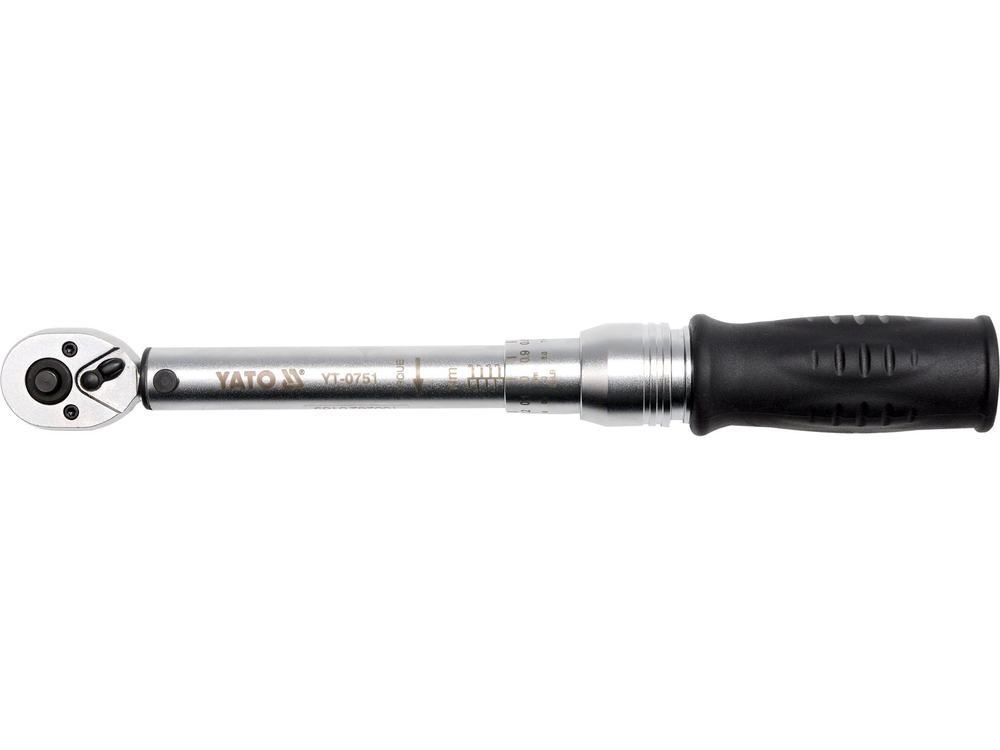

The wrench is made of chrome vanadium steel, which ensures its durability and strength. It has a mechanical tension of the torque pawl, whichóra after reaching the desired tightening force jumps one tooth, making a characteristic sound. The torqueós scale is located in the handle of the wrench, its adjustment is made by turning it. After setting the desired torque, lock the wrench with the safety catch at the end of the handle.The wrench is GS certified.Summary of torqueóin different units of length and force:1 kG*cm = 13.887 OZ*IN (ounce x inch)1 kG*cm = 0.867 LB*IN (pound x inch)1 kG*m = 9.80665 N*m (Niuton x meter)1 kG*m = 7.233 LB*FT (pound x foot)1 FT*LB = 12 LB*IN (pound x inch)1 dm*N = 14,16 OZ*IN (ounce x inch) This is mainly used in automotive engineering for precision fastening and wherever the manufacturer has specified the required tightening torque for a joint. - Select the appropriate Nm or in-lbs scale. Unlock the micrometer knob. - Holding the unlocked micrometer knob, rotate the wrench handle so that the "0" on the knob scale coincides with the vertical line on the wrench arm. - Turn the wrench handle clockwise until the desired torque is set. The desired torque is set when the graduation on the micrometer knob coincides with the vertical line on the wrench arm. - Then lock the micrometer knob, making sure that the lock has "snapped" and it is impossible to rotate the handle, then set the appropriate direction of rotation of the ratchet, after that the wrench is ready for use. - On the taker of the wrench should be applied to the appropriate socket. During tightening, the achievement of the set torque is indicated by a click of the wrench. If you hear or feel a click, stop tightening. - torque wrench - factory Calibration Certificate (Individual for each wrench, marked with the serial number of the wrench) - instruction manual - warranty card - carrying case.
