YT-0770

TORQUE WRENCH 3/4, 100-500 NM''

+ Add to compare Add to shopping list

Profesjonalny klucz dynamometryczny marki YATO. Jest precyzyjnym narzędziem stosowanym do uzyskiwania określonego momentu obrotowego. Służy do skręcania części złącznych gwintowanych tak, aby moment obrotowy połączenia był znany i odpowiedni do rodzaju ma

Size

uniwersalny

676,50 zł

incl. VAT / pcs.

Call and order: 71 32 46 330

Buy now, pay in 30 days

14 days for easy returns

Buy now, pay in 30 days

Buy on installment

Official manufacturer's store

Safe shopping

Brand

Yato

Symbol

YT-0770

Producer code

5906083907708

Series

GRF

Tool handle size

3/4 (19.0 mm)"

Torque

100-500 Nm

Length

845-860 mm

Head material

CrV 6140

Material of the handle

PVC

Hardness

50-55 HRC

Rotation direction switch

Yes

Tolerance

± 3%

Calibration certificate

Yes

Application

precise tightening of threaded connections

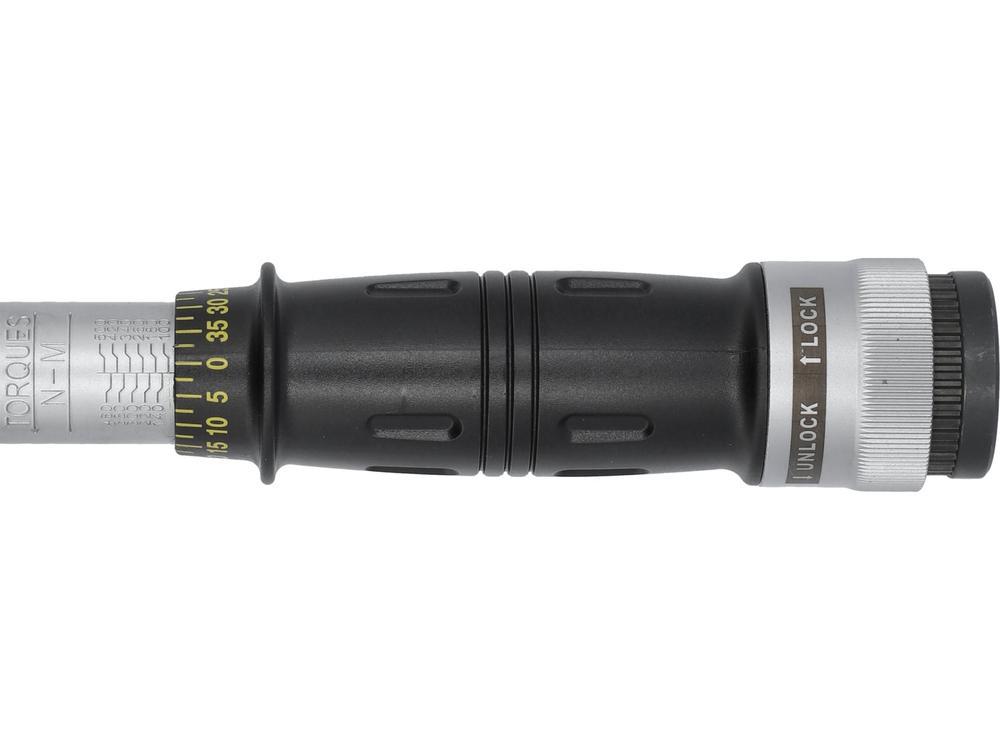

The key is made of chrome-vanadium steel, which ensures its durability and strength. It has a mechanical dynamometric stretch, which after reaching the desired tightening force jumps with one clove, making a characteristic sound. The scale of moments is placed in the key handle, its adjustment occurs through its rotation. After setting the desired moment, block the key with protection at the end of the handle. The key has a GS certificate. Comparative statement of moments in various units of length and force: 1 kg*cm = 13.887 OZ*in (ounce X inch) 1 kg*cm = 0.867 LB*in (Punish X inch) 1 kg*m = 9,80665 n*m ( Niuton x meter) 1 kg*m = 7,233 lb*ft (pound x foot) 1 ft*lb = 12 lb*in (pound x inch) 1 dm*n = 14.16 oz*in (ounce x inch) is used Mainly in automotive technique for precise fastening and wherever the manufacturer determined the required time of tightening the connector. - Choose the appropriate NM or In-LBS scale. Unlock the micrometer knob. - Place the micrometer knob so that "0" on the scale of the knob covers with a vertical line on the key's shoulder. - rotate the micrometer knob according to the direction of the clockwise movement until the requested torque is set. - The desired torque is set when the scale on the micrometer knob will cover with the vertical line on the key's shoulder. - Then block the micrometer knob and set the appropriate direction of rotation of the ratchet, after that the key is ready for use. - Appropriate attachment should be applied to the key. When tightening, reaching the set moment is signaled by clicking the key. If you hear or feel the click, stop tightening. - dynamometric key - factory calibration certificate (individual for each key, marked with the serial number of the key) - user manual - warranty card - suitcase

To download

User manual YT-0770
