Bestseller
YT-73131
DIGITAL DETECTOR
- Wykrywacz przewodów, metalu i elementów drewnianych
Brand
Symbol
YT-73131
Producer code
5906083731310
Series
Type of detected items
wood, metal, voltage cables (A.C.)
Wood detection range
20 mm
Ferromagnetic metal detection range
80 mm
Diamagnetic metal detection range
60 mm
Live wire detection range (A.C.)
50 mm
Power supply
battery
Type of battery
9V; 6F22
Dimensions
145x67x25 mm
Display type
LCD
LED controls
Yes
Sound signal
Yes
Operating temperature range
0~50 ˚C
Storage temperature
-10 ~ +60 ˚C
Weight
0.13 kg
Application
electric
The YT-73131 professional wire & profile detector allows detection in walls or drywall:

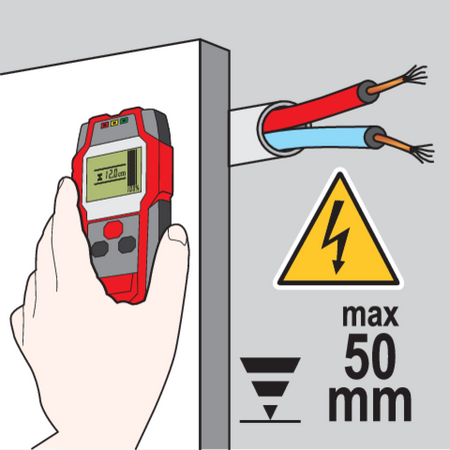

- conductorsów live up to 50 mm .
- ferromagnetic metals up to 80 mm

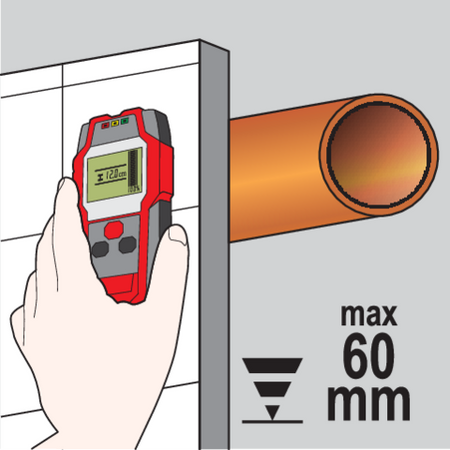

- non-ferrous metals (e.g. copper tubing) up to 60 mm
- wooden structural componentsós up to 20 mm
.The use of YATO YT-73131 profile detector significantly speeds up work, increases safety and minimizes the risk of accidental damage to electrical or plumbing systems located under the plaster. Thanks to it you can, among other things, safely drill a hole or find the place for screwing a screw into a wooden or metal profile hidden under the plasterboard. It also helps rów to complete the technical documentation of buildingsów.

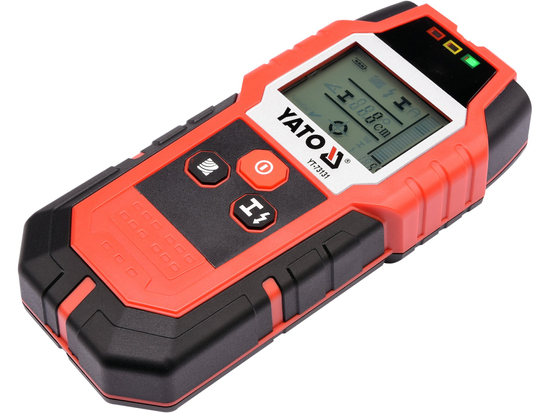

The large and clear display, with LED backlighting, informs us about:
- selected function
- signal power [%]
- distance from the searched metal element [cm]<
- central location relative to the sensor
Additional functions and features:
- audible signal and three indicator lights, in green/orange/red, whichóre additionally indicating the detection of the searched material.
- adjustable detection strength for live wires
- automatic shutdown after 5 minutes of inactivity
- on the underside of the detector are inserts made of soft material, which&oac;re in contact with the surface to protect the case from scratches.

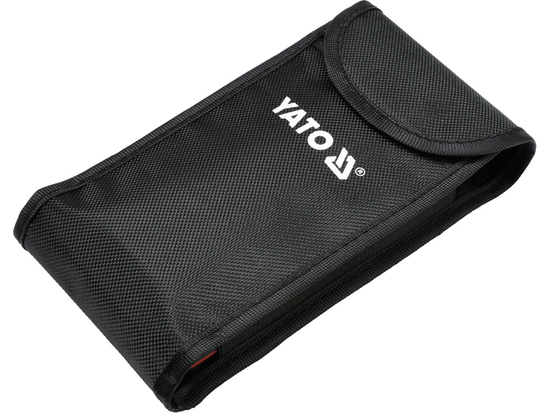

- a case for the device made of durable material
