YT-09564

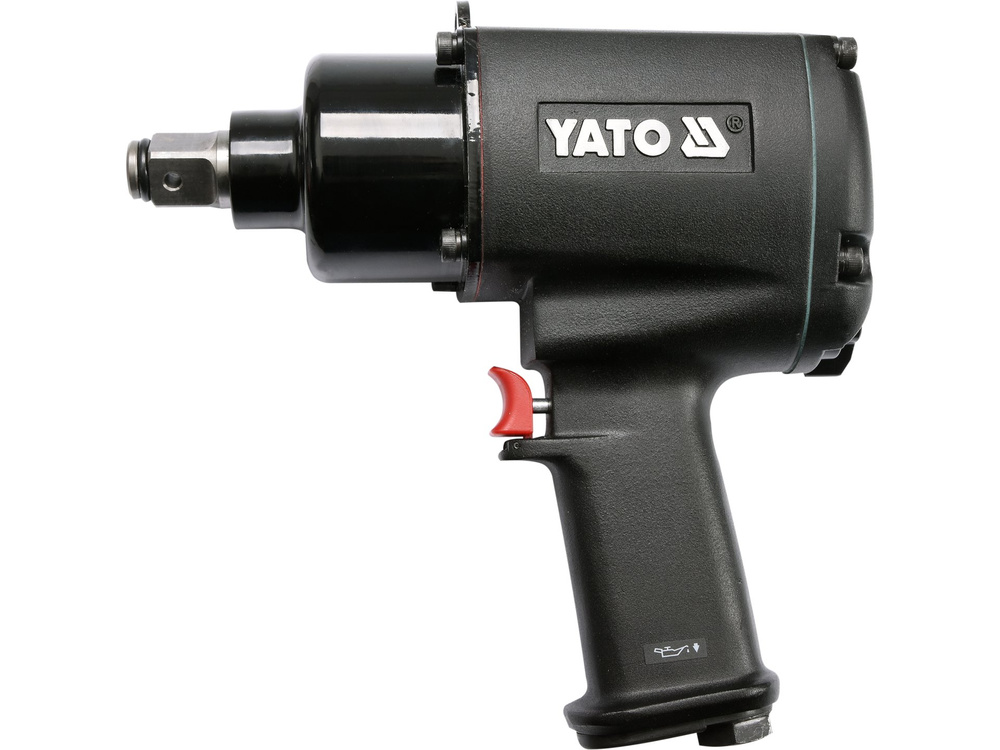

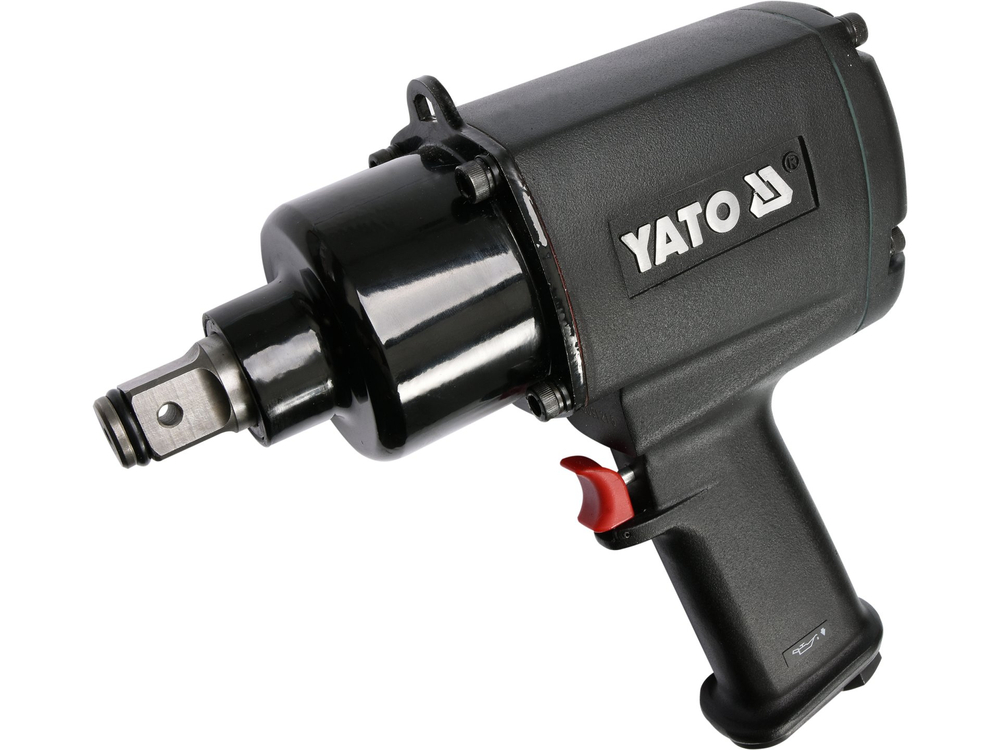

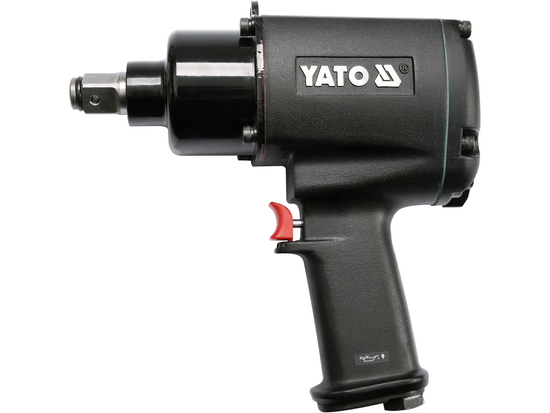

3/4" AIR IMPACT WRENCH
- Klucz pneumatyczny 3/4" 1300 Nm marki YATO.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Toolholder size
3/4" (19.0 mm)
Toolholder type
Driver

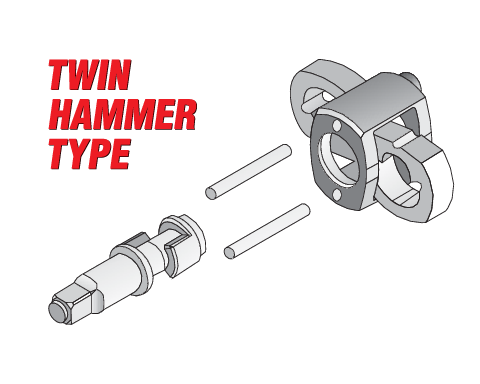

Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.6-0.8 MPa
Recommended working pressure
0.63 MPa
Required air flow
660 l/min
Rotations
5000 min⁻¹
Max. torque
1300 Nm
Quick coupler size
3/8" (9.5 mm)
Air connection diameter (PT)
3/8" (9.5 mm)
Air supply hose inside diameter
3/8" (9.5 mm)
Length
230 mm
Casing material
aluminum
Rotation switch
yes
Acoustic pressure
92.0 ± 3.0 dB(A)
Acoustic power
103.0 ± 3.0 dB(A)
Vibrations
5.47 ± 1.5 m/s²
Weight
4.7 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09564
